Base class for interfaces that manipulate the Diarkis library. More...

#include <DiarkisInterfaceBase.h>

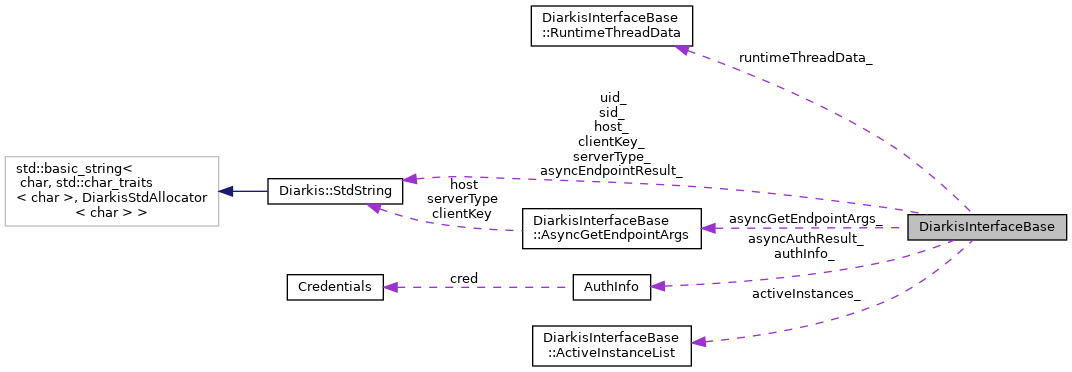

Collaboration diagram for DiarkisInterfaceBase:

[legend]

Classes
struct	ActiveInstanceList

struct	AsyncGetEndpointArgs
	The arguments passing to the asynchronous getting the endpoint process. More...

struct	RuntimeThreadData

Public Types
enum	AsyncGetEndpointStatus { AsyncGetEndpointStatus::NotRunning, AsyncGetEndpointStatus::Running, AsyncGetEndpointStatus::Finish }
	Running status of the process of getting the endpoint asynchronously. More...

Public Member Functions

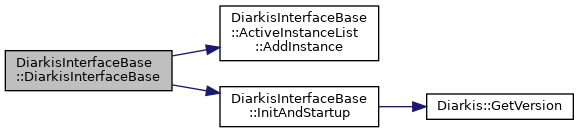

	DiarkisInterfaceBase (const char *userId, bool bInitBaseClass=true)
	Constructor of Diarkis interface class. More...

	DiarkisInterfaceBase (const std::string &userId, bool bInitBaseClass=true)
	Same as DiarkisInterfaceBase() More...

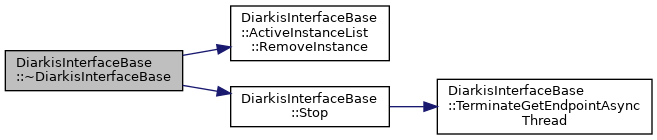

virtual	~DiarkisInterfaceBase ()
	Destructor of Diarkis interface class. More...

void	UpdateComponents ()
	Update functions for UDP, TCP, and P2P. More...

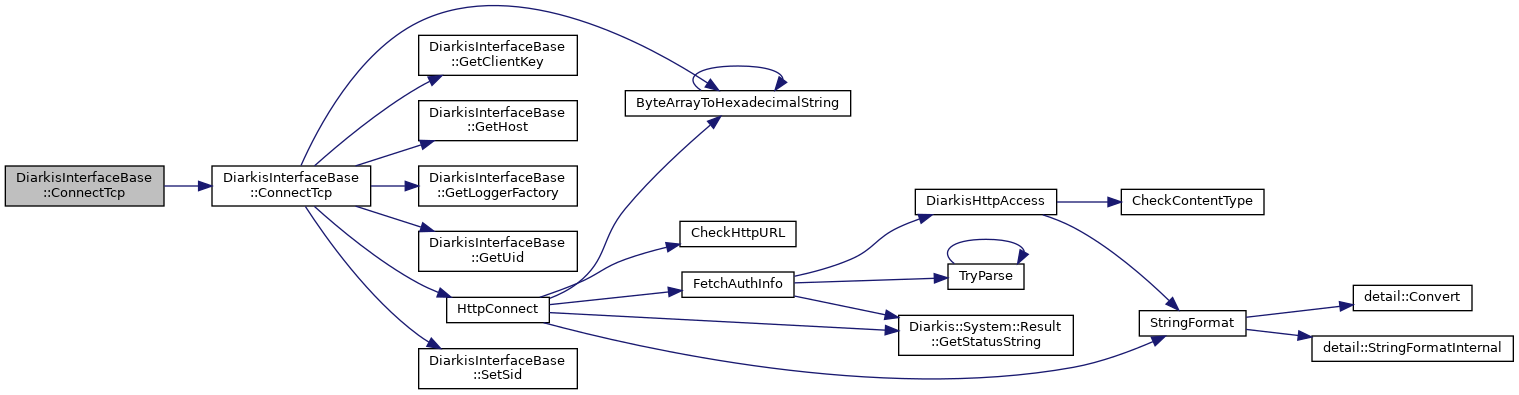

bool	ConnectTcp (void)
	Connect to TCP server. More...

virtual bool	SetupTcp (void)
	Initialize DiarkisTcpBase class. More...

bool	ConnectTcp (const char *tcpEndpoint)
	Connect to TCP server. The status of the connection can be checked with DiarkisTCPBase::IsConnected(). More...

bool	ConnectTcp (const std::string &tcpEndpoint)
	Same as ConnectTcp() More...

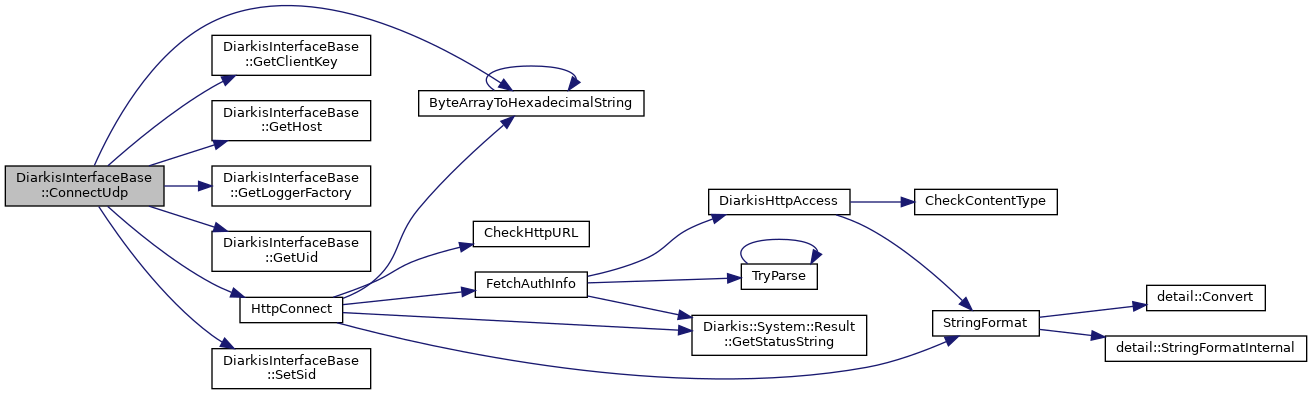

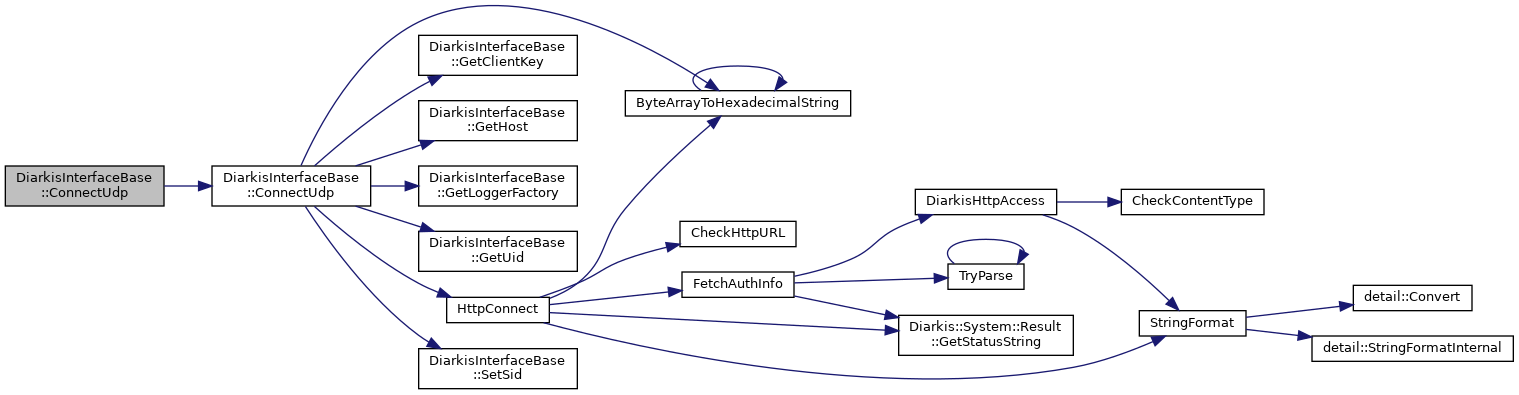

bool	ConnectUdp (void)
	Connect to UDP server. More...

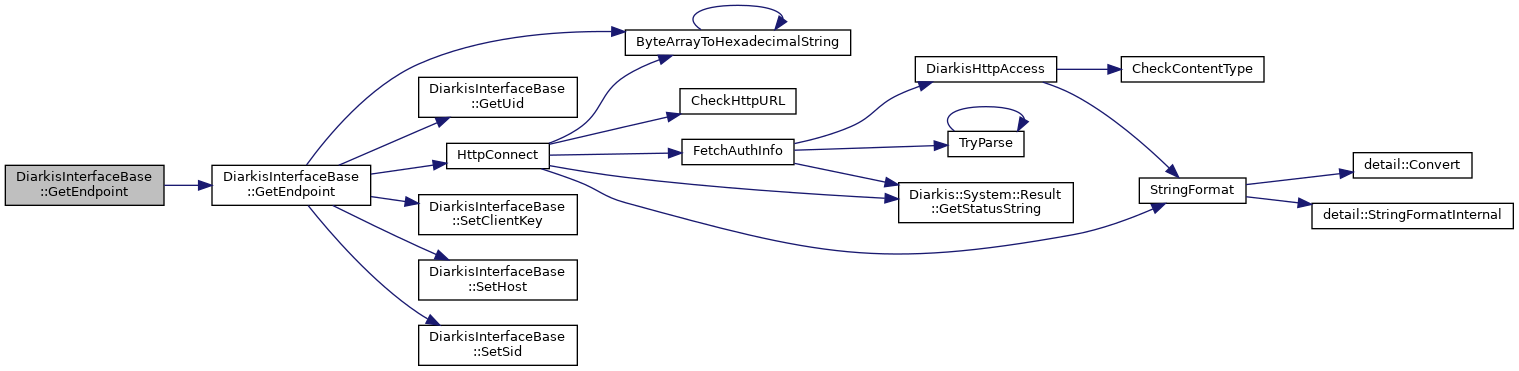

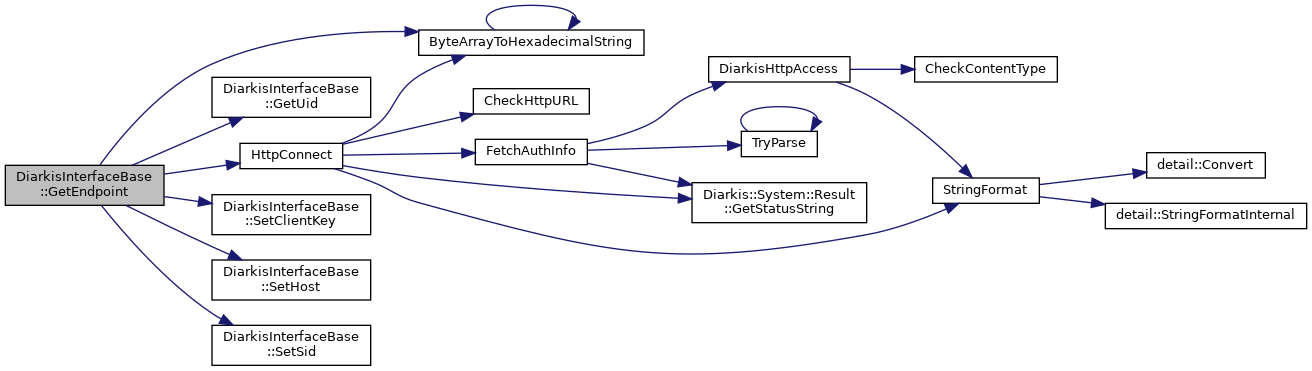

bool	GetEndpoint (const char host, const char clientKey, const char serverType, char endpoint, size_t endpointBuf)
	Obtain server connection information from the HTTP server. More...

bool	GetEndpoint (const std::string &host, const std::string &clientKey, const std::string &type, Diarkis::StdString &endpoint)
	Same as GetEndpoint() More...

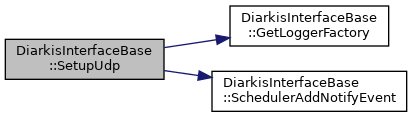

virtual bool	SetupUdp (void)
	Initialize DiarkisUdpBase class. More...

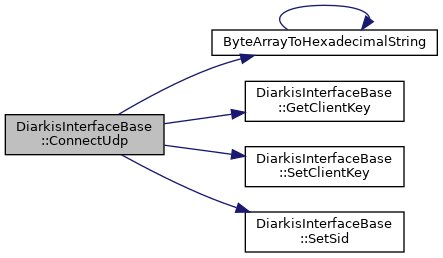

bool	ConnectUdp (const char udpEndpoint, const char type, struct AuthInfo *auth)
	Connect to UDP server. The status of the connection can be checked with DiarkisUDPBase::IsConnected(). More...

bool	ConnectUdp (const char *udpEndpoint)
	Same as ConnectUdp(const char, const char, struct AuthInfo*) More...

bool	ConnectUdp (const std::string &udpEndpoint)
	Same as ConnectUdp(const char, const char, struct AuthInfo*) More...

bool	ConnectUdpAsync (const char *udpEndpoint)
	Connect to UDP server. The status of the connection can be checked with DiarkisUDPBase::IsConnected(). More...

bool	ConnectUdpAsync (const std::string &udpEndpoint)
	Same as ConnectUdpAsync() More...

bool	ConnectUdpDualModeAsync (const char *udpEndpoint)
	Attemps to connect to the server by async using socket dual mode (explicit support for IPv6) turned on. GetConnectedEvent will be invoked if connection is successfully made. When connected to the server with this method, P2P is disabled. More...

bool	ConnectUdpDualModeAsync (const std::string &udpEndpoint)
	Same as ConnectUdpDualModeAsync() More...

void	GetAuthInfo (struct AuthInfo *auth)
	Retrieves AuthInfo obtained with GetEndpoint(). More...

virtual void	SetupP2P (void)
	P2P setup functions. More...

void	CloseP2P (void)
	Disconnect all P2P connections. More...

virtual void	SetupRoom (bool bRetry=false)
	Setup function for Room function. More...

virtual void	SetupSession (bool bRetry=false)
	Setup function for Session features. More...

virtual void	SetupRpc ()
	Setup function for RPC. More...

virtual void	SetupField (void)
	Setup function for Field function. More...

virtual void	SetupGroup (bool bRetry)
	Setup function for Group function. More...

virtual void	SetupMatchMaker (void)
	Setup function for MatchMaker function. More...

virtual void	SetupDirectMessage (void)
	DirectMessage setup functions. More...

virtual void	SetupProfile (uint32_t interval, uint32_t buffer, bool p2pRandomStart=true)
	Setup Profile functionality. More...

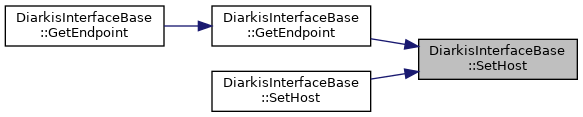

void	SetHost (const char *host)
	Set HTTP server address to connect to. More...

void	SetHost (const std::string &host)
	Same as SetHost() More...

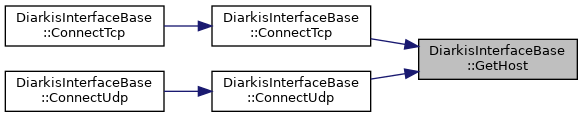

Diarkis::StdString	GetHost () const
	Obtain the HTTP server address. More...

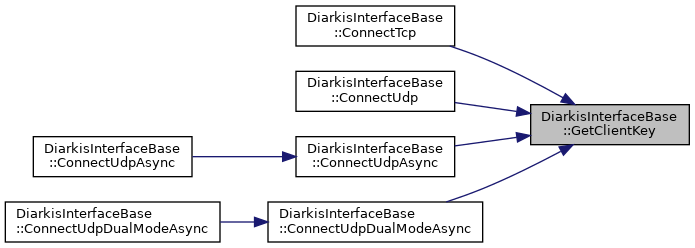

const Diarkis::StdString &	GetClientKey () const
	Obtain the client key of the connection destination. More...

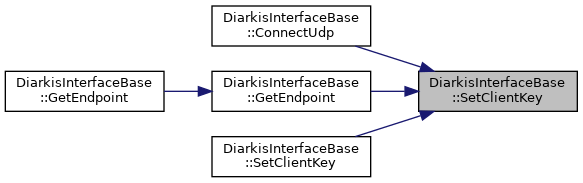

void	SetClientKey (const char *clientKey)
	接続先のクライアントキーを設定する More...

void	SetClientKey (const std::string &clientKey)
	Same as SetClientKey() More...

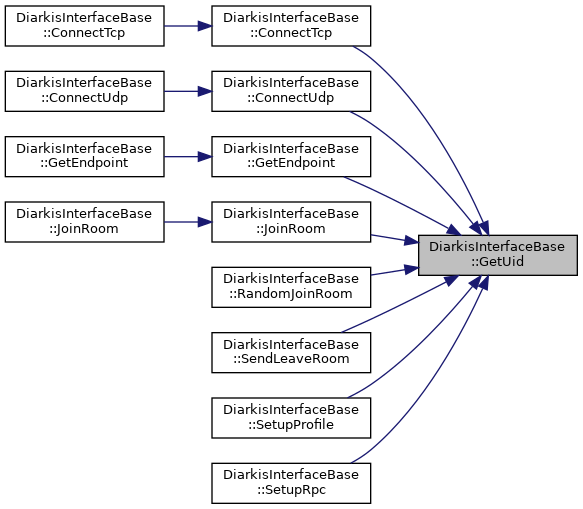

const Diarkis::StdString &	GetUid () const
	Get user ID. More...

Diarkis::StdString	GetSid () const
	Get the SID. More...

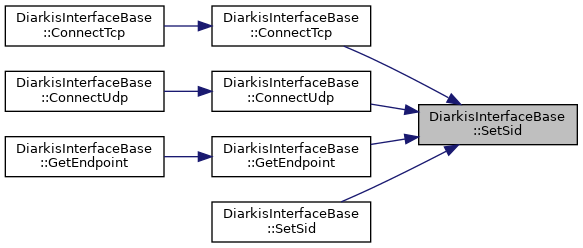

void	SetSid (const char *sid)
	Set the SID. More...

void	SetSid (const std::string &sid)
	Same as SetSid() More...

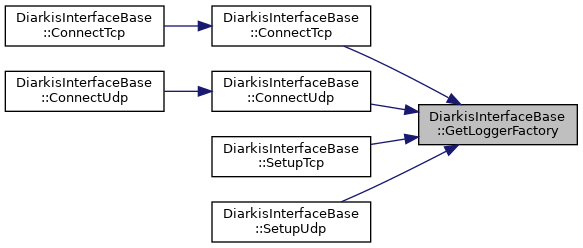

std::shared_ptr< LoggerFactory >	GetLoggerFactory ()
	Get loggers. More...

std::shared_ptr< ILoggerBackend >	GetConsoleLoggerBackend ()
	Get console output log (currently unused) More...

std::shared_ptr< ILoggerBackend >	GetDebugLoggerBackend ()
	Get debug output log. More...

std::shared_ptr< DiarkisUdpBase >	GetUdpBase ()
	Obtaining the DiarkisUdpBase class. More...

std::shared_ptr< DiarkisTcpBase >	GetTcpBase ()
	Obtaining the DiarkisTcpBase class. More...

std::shared_ptr< DiarkisP2PBase >	GetP2PBase ()
	Get DiarkisP2PBase class. More...

std::shared_ptr< DiarkisRoomBase >	GetRoomBase ()
	Get DiarkisRoomBase class. More...

std::shared_ptr< DiarkisSessionBase >	GetSessionBase ()
	Get DiarkisSessionBase class. More...

std::shared_ptr< DiarkisGroupBase >	GetGroupBase ()
	Get DiarkisGroupBase class. More...

std::shared_ptr< DiarkisFieldBase >	GetFieldBase ()
	Get DiarkisFieldBase class. More...

std::shared_ptr< DiarkisMatchMakerBase >	GetMatchMakerBase ()
	Get DiarkisMatchMakerBase class. More...

std::shared_ptr< DiarkisRpcBase >	GetRpcBase ()
	Get DiarkisRpcBase class. More...

std::shared_ptr< DiarkisDirectMessageBase >	GetDirectMessageBase ()
	Get DiarkisDirectMessageBase class. More...

std::shared_ptr< Diarkis::Network::IDiarkisProfile >	GetProfile ()
	Get IDiarkisProfile class, which is an interface for profiling functions. More...

void	Stop ()
	Stop Update Loop. More...

void	Disconnect ()
	Disconnect TCP, UDP, and P2P connections. More...

void	SendPing (void)
	Send ping to UDP server. More...

void	SendEcho (void)
	Send echo to UDP server. More...

bool	IsOffline (void)
	Whether the UDP or TCP server is preparing for shutdown. More...

void	StartP2P (void)
	Call DiarkisRoomBase::SendStartP2PSync() More...

uint16_t	GetP2PConnectedNum (void)
	Get the number of P2P connected clients. More...

void	CreateRoom (uint16_t maxMembers, bool allowEmpty, bool join, uint16_t ttl, uint32_t interval)
	Create a new room. More...

void	RandomJoinRoom (uint16_t maxMembers, uint16_t ttl, uint32_t interval, bool allowEmpty)
	Join the room if available, otherwise create a new room. More...

void	JoinRoom ()
	Join a room. More...

void	JoinRoom (const char *roomID)
	Join a room. More...

void	JoinRoom (const std::string &roomID)
	Same as JoinRoom(const char*) More...

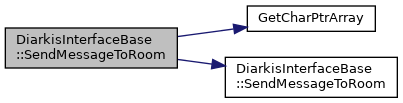

void	SendMessageToRoom (const char *memberIDs, size_t memberIDsCount, const uint8_t payload, size_t payloadSize, bool reliable)
	Sends a message to a specific member who has joined a room. More...

void	SendMessageToRoom (const std::vector< std::string > &memberIDs, const std::vector< uint8_t > &payload, bool reliable)
	Same as SendMessageToRoom() More...

void	SendLeaveRoom ()
	Leaving a room. More...

void	FindByTypeRoom (uint32_t roomType, uint32_t limit)
	Searches for rooms of the same type. More...

void	RegisterRoom (uint32_t roomType, const char roomName, const char roomMetadata)
	Register additional information about the room you are participating in. More...

void	RegisterRoom (uint32_t roomType, const std::string &roomName, const std::string &roomMetadata)
	Same as RegisterRoom() More...

void	SendMigrateRoom (void)
	Move the room to a different server. More...

void	SendGetOwnerID (void)
	Get the room owner's user ID. More...

void	SendGetMemberIDs (void)
	Get a list of user IDs of members participating in a room. More...

Diarkis::StdString	GetRoomID ()
	Get the Room ID of the room you are participating in. More...

void	SendCreateGroup (bool allowEmpty, bool join, uint16_t ttl)
	Creates a new group. More...

void	SendJoinGroup (const char groupID, const char message)
	Join an existing group. More...

void	SendJoinGroup (const std::string &groupID, const std::string &message)
	Same as SendJoingGroup() More...

void	SendRandomJoinGroup (uint16_t ttl, const char *message, uint32_t interval=200)
	If there is a group you can join, join that group, otherwise create a new group. More...

void	SendRandomJoinGroup (uint16_t ttl, const std::string &message, uint32_t interval=200)
	Same as SendRandomJoinGroup() More...

void	SendLeaveGroup (const char groupID, const char message)
	Leave from the specified group. More...

void	SendLeaveGroup (const std::string &groupID, const std::string &message)
	Same as SendLeaveGroup() More...

Diarkis::StdString	GetGroupID ()
	Retrieve the Group ID of the participating group. More...

void	ClearUdpBuffer ()
	Clear send and receive buffer of Socket. More...

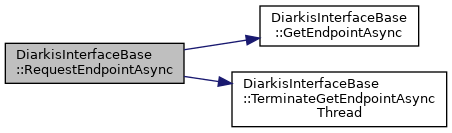

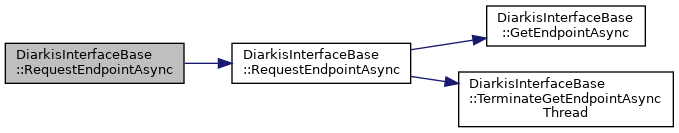

bool	RequestEndpointAsync (const char host, const char clientKey, const char *type, DiarkisThreadPolicy policy, int priority, uint32_t affinityMask, uint32_t stackSize)
	Connect to an HTTP server and perform asynchronous processing to obtain TCP/UDP endpoints. More...

bool	RequestEndpointAsync (const std::string &host, const std::string &clientKey, const std::string &type, DiarkisThreadPolicy policy, int priority, uint32_t affinityMask, uint32_t stackSize)
	Same as RequestEndpointAsync() More...

AsyncGetEndpointStatus	GetEndpointAsyncStatus () const
	Get the progress of the process of getting the server endpoint asynchronous. More...

bool	GetAsyncEndpointResult (Diarkis::StdString &endpoint) const
	Get the result of getting the endpoint by asynchronous. More...

Static Public Member Functions

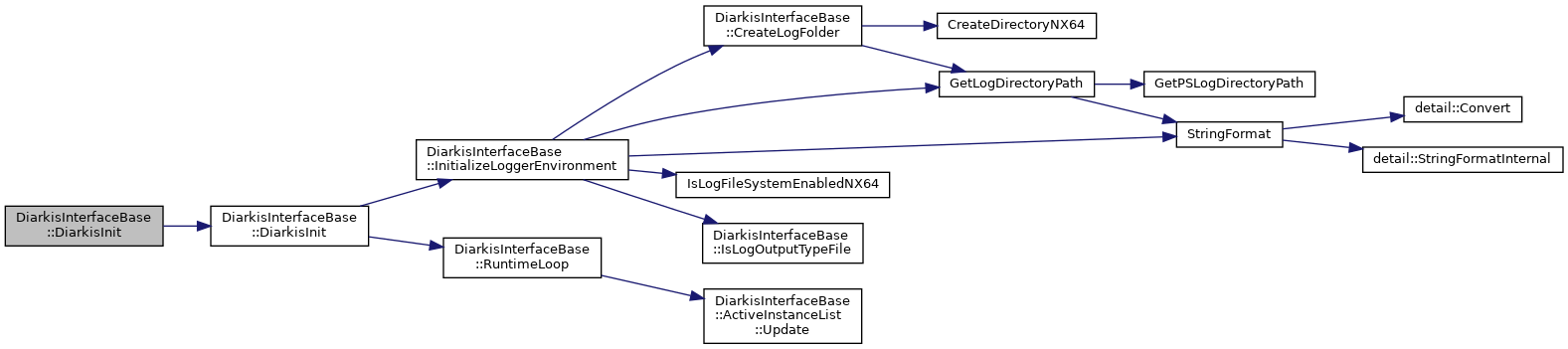

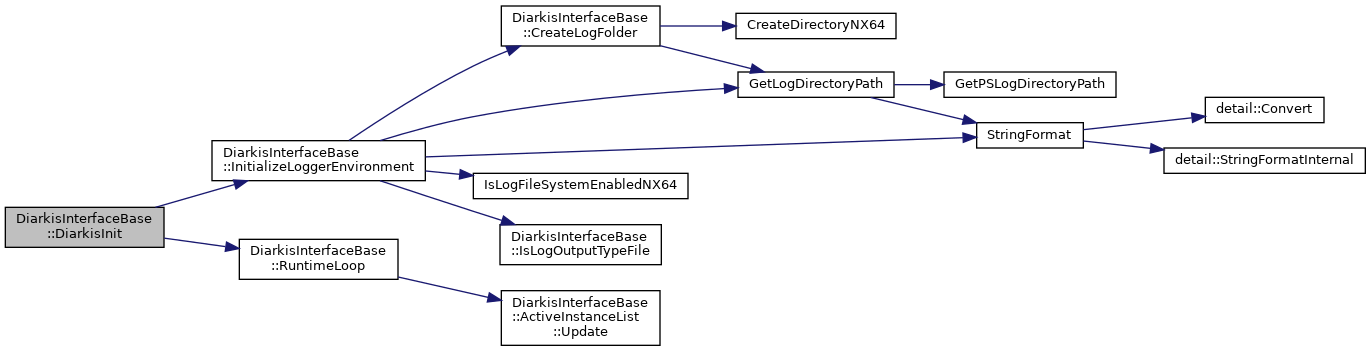

static bool	DiarkisInit (const char *logDirName, LogOutType out=DEBUG_OUT, bool bLog=true, std::shared_ptr< ILoggerBackend > customLogger=nullptr)
	Diarkis initialization. More...

static bool	DiarkisInit (const std::string &logDirName, LogOutType out=DEBUG_OUT, bool bLog=true, std::shared_ptr< ILoggerBackend > customLogger=nullptr)
	Same as DiarkisInit() More...

static bool	DiarkisDestroy ()
	Diarkis termination process. More...

Protected Member Functions
void	InitAndStartup (bool bInitBaseClass)
	Initialize logs and classes of each module. More...

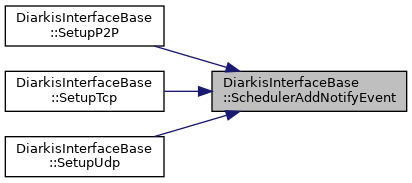

void	SchedulerAddNotifyEvent ()
	An event that is executed when an event has been added to the scheduler of TCP/UDP/P2P. More...

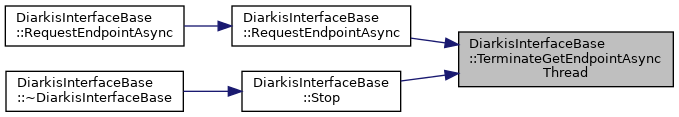

void	TerminateGetEndpointAsyncThread ()
	Terminate thread for the getting the endpoint async process. More...

Static Protected Member Functions

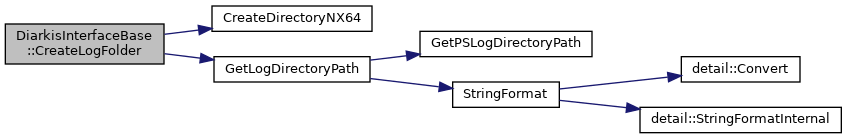

static void	CreateLogFolder ()
	Create folder for log output destination. More...

static Diarkis::System::Result	RuntimeLoop (void *owner)
	Loop function to call Diarkis client library updates. More...

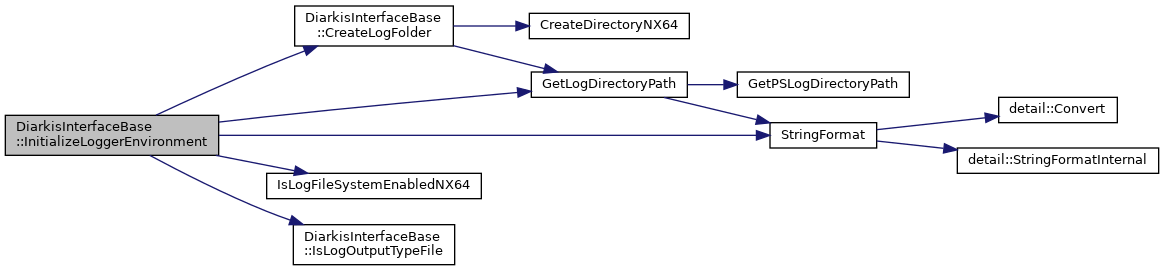

static void	InitializeLoggerEnvironment ()
	Initialize loggers for the Diarkis depending on the logOutType. More...

static bool	IsLogOutputTypeFile ()
	Returns whether the log output to a file. More...

static Diarkis::System::Result	GetEndpointAsync (void *owner)
	Thread executed by RequestEndpointAsync() More...

Protected Attributes
std::shared_ptr< DiarkisTcpBase >	tcpBase_
	Pointer to DiarkisTcpBase class. More...

std::shared_ptr< DiarkisUdpBase >	udpBase_
	Pointer to DiarkisUdpBase class. More...

std::shared_ptr< DiarkisP2PBase >	p2pBase_
	Pointer to DiarkisP2PBase class. More...

std::shared_ptr< DiarkisRoomBase >	roomBase_
	Pointer to DiarkisRoomBase class. More...

std::shared_ptr< DiarkisSessionBase >	sessionBase_
	Pointer to DiarkisSessionBase class. More...

std::shared_ptr< DiarkisGroupBase >	groupBase_
	Pointer to DiarkisGroupBase class. More...

std::shared_ptr< DiarkisFieldBase >	fieldBase_
	Pointer to DiarkisFieldBase class. More...

std::shared_ptr< DiarkisMatchMakerBase >	matchMakerBase_
	Pointer to DiarkisMatchMakerBase class. More...

std::shared_ptr< DiarkisRpcBase >	rpcBase_
	Pointer to DiarkisRpcBase class. More...

std::shared_ptr< DiarkisDirectMessageBase >	dmBase_
	Pointer to DiarkisDirectMessageBase class. More...

std::shared_ptr< Diarkis::Network::IDiarkisProfile >	profile_
	Pointer to IDiarkisProfile class. More...

Diarkis::StdString	host_
	Address of the HTTP server to connect to. More...

Diarkis::StdString	clientKey_
	Client key of the HTTP server to connect to. More...

const Diarkis::StdString	uid_
	My user ID. More...

Diarkis::StdString	serverType_
	Server type. More...

Diarkis::StdString	sid_
	Session ID. More...

AuthInfo	authInfo_
	Authentication information. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to logger class. More...

std::shared_ptr< LoggerFactory >	loggerFactory_
	Pointer to LoggerFactory. More...

std::mutex	connectioninfoMutex_
	The mutex for the variables that are modified in the GetEndpoint method. More...

std::mutex	asyncGetEndpointMutex_
	The mutex for the whole process of getting the endpoint asynchronously. More...

AsyncGetEndpointArgs	asyncGetEndpointArgs_
	The arguments passing to the asynchronous getting the endpoint process. More...

AsyncGetEndpointStatus	asyncGetEndpointStatus_
	The progress of the process of getting the endpoint asynchronously. More...

bool	asyncGetEndpointResult_
	The result of the process of getting the endpoint asynchronously. More...

Diarkis::StdString	asyncEndpointResult_
	The result of the process of getting the endpoint asynchronously. More...

AuthInfo	asyncAuthResult_
	The result of the process of getting the endpoint asynchronously. More...

std::shared_ptr< Diarkis::System::DiarkisThread >	getEndpointAsyncThread_
	The thread used by the process of getting the endpoint asynchronously. More...

std::atomic< bool >	internalSchedulerUpdated_
	A flag enabled if the scheduler is updated. More...

Static Protected Attributes
static RuntimeThreadData	runtimeThreadData_
	A data of the runtime thread. More...

static ActiveInstanceList	activeInstances_
	A list of active instances. More...

static std::shared_ptr< LoggerFactory >	globalLoggerFactory_ = nullptr
	A LoggerFactory that will be used for logging of the global process of the DiarkisInterfaceBase. More...

static std::shared_ptr< Diarkis::StdString >	logDir_ = nullptr
	Log output directory name. More...

static std::shared_ptr< ThreadedLoggerBackend >	threadLoggerBackend_ = nullptr
	Threaded loggers for collective output. More...

static std::shared_ptr< ILoggerBackend >	consoleLoggerBackend_ = nullptr
	Logger for console output. More...

static std::shared_ptr< ILoggerBackend >	debugLoggerBackend_ = nullptr
	Logger for debug output. More...

static std::shared_ptr< ILoggerBackend >	fileLoggerBackend_ = nullptr
	Logger for file output. More...

static std::shared_ptr< ILoggerBackend >	customLoggerBackend_ = nullptr
	Custom logger. More...

static std::shared_ptr< ILoggerBackend >	aggregatedLoggerBackend_ = nullptr
	A logger interface that is used in the LoggerFactory. More...

static LogOutType	logOutType_ = LogOutType::FILE_OUT
	Type of debug output. More...

static bool	bOutputLog_ = false
	Whether to log output or not. More...

Detailed Description

Base class for interfaces that manipulate the Diarkis library.

Member Enumeration Documentation

◆ AsyncGetEndpointStatus

enum DiarkisInterfaceBase::AsyncGetEndpointStatus

strong

Running status of the process of getting the endpoint asynchronously.

Enumerator
NotRunning
Running
Finish

Constructor & Destructor Documentation

◆ DiarkisInterfaceBase() [1/2]

DiarkisInterfaceBase::DiarkisInterfaceBase	(	const char *	userId,
		bool	bInitBaseClass = `true`
	)

Constructor of Diarkis interface class.

Parameters

[in]	userId	Unique user ID.
[in]	bInitBaseClass	Initialize various Base classes.

Here is the call graph for this function:

◆ DiarkisInterfaceBase() [2/2]

DiarkisInterfaceBase::DiarkisInterfaceBase	(	const std::string &	userId,
		bool	bInitBaseClass = `true`
	)

Same as DiarkisInterfaceBase()

◆ ~DiarkisInterfaceBase()

DiarkisInterfaceBase::~DiarkisInterfaceBase ( )

virtual

Destructor of Diarkis interface class.

Here is the call graph for this function:

Member Function Documentation

◆ DiarkisInit() [1/2]

bool DiarkisInterfaceBase::DiarkisInit	(	const char *	logDirName,
		LogOutType	out = `DEBUG_OUT`,
		bool	bLog = `true`,
		std::shared_ptr< ILoggerBackend >	customLogger = `nullptr`
	)

static

Diarkis initialization.

Parameters

[in]	logDirName	log output directory name
[in]	out	Specify the log output destination (FILE_OUT, DEBUG_OUT).
[in]	bLog	Whether or not output log
[in]	customLogger	Custom Logger Designation. Used to output Diarkis internal logs to app-side logs.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DiarkisInit() [2/2]

bool DiarkisInterfaceBase::DiarkisInit	(	const std::string &	logDirName,
		LogOutType	out = `DEBUG_OUT`,
		bool	bLog = `true`,
		std::shared_ptr< ILoggerBackend >	customLogger = `nullptr`
	)

static

Same as DiarkisInit()

Here is the call graph for this function:

◆ DiarkisDestroy()

bool DiarkisInterfaceBase::DiarkisDestroy ( )

static

Diarkis termination process.

Here is the call graph for this function:

◆ UpdateComponents()

void DiarkisInterfaceBase::UpdateComponents ( )

Update functions for UDP, TCP, and P2P.

◆ ConnectTcp() [1/3]

bool DiarkisInterfaceBase::ConnectTcp ( void )

Connect to TCP server.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupTcp()

bool DiarkisInterfaceBase::SetupTcp ( void )

virtual

Initialize DiarkisTcpBase class.

Here is the call graph for this function:

◆ ConnectTcp() [2/3]

bool DiarkisInterfaceBase::ConnectTcp ( const char * tcpEndpoint )

Connect to TCP server. The status of the connection can be checked with DiarkisTCPBase::IsConnected().

Parameters

[in] tcpEndpoint Address of TCP server

Here is the call graph for this function:

◆ ConnectTcp() [3/3]

bool DiarkisInterfaceBase::ConnectTcp ( const std::string & tcpEndpoint )

Same as ConnectTcp()

Here is the call graph for this function:

◆ ConnectUdp() [1/4]

bool DiarkisInterfaceBase::ConnectUdp ( void )

Connect to UDP server.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEndpoint() [1/2]

bool DiarkisInterfaceBase::GetEndpoint	(	const char *	host,
		const char *	clientKey,
		const char *	serverType,
		char *	endpoint,
		size_t	endpointBuf
	)

Obtain server connection information from the HTTP server.

Parameters

[in]	host	HTTP server address
[in]	clientKey	Client key for HTTP server
[in]	serverType	Server type
[in]	endpoint	Obtained server address
[in]	endpointBuf	Length of the endpoint

Returns: bool true=Successed to get the server information from the HTTP server

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEndpoint() [2/2]

bool DiarkisInterfaceBase::GetEndpoint	(	const std::string &	host,
		const std::string &	clientKey,
		const std::string &	type,
		Diarkis::StdString &	endpoint
	)

Same as GetEndpoint()

Here is the call graph for this function:

◆ SetupUdp()

bool DiarkisInterfaceBase::SetupUdp ( void )

virtual

Initialize DiarkisUdpBase class.

Here is the call graph for this function:

◆ ConnectUdp() [2/4]

bool DiarkisInterfaceBase::ConnectUdp	(	const char *	udpEndpoint,
		const char *	type,
		struct AuthInfo *	auth
	)

Connect to UDP server. The status of the connection can be checked with DiarkisUDPBase::IsConnected().

Parameters

[in]	udpEndpoint	Address of UDP server
[in]	type	Server type
[in]	auth	Authentication information

Here is the call graph for this function:

◆ ConnectUdp() [3/4]

bool DiarkisInterfaceBase::ConnectUdp ( const char * udpEndpoint )

Same as ConnectUdp(const char*, const char*, struct AuthInfo*)

Here is the call graph for this function:

◆ ConnectUdp() [4/4]

bool DiarkisInterfaceBase::ConnectUdp ( const std::string & udpEndpoint )

Same as ConnectUdp(const char*, const char*, struct AuthInfo*)

Here is the call graph for this function:

◆ ConnectUdpAsync() [1/2]

bool DiarkisInterfaceBase::ConnectUdpAsync ( const char * udpEndpoint )

Connect to UDP server. The status of the connection can be checked with DiarkisUDPBase::IsConnected().

This method will return immediately after launching the asynchronous connecting process. You can observe the progress of the asynchronous process by using DiarkisUdpbase::IsAsyncConnectRunning(). You can get the result of the asynchronous process by using DiarkisUdpbase::GetAsyncConnectResult(). Whether the connection is successful or not is checked by DiarkisUdpBase::IsConnected().

Parameters

[in] udpEndpoint Address of UDP server

Returns: bool true: The state that the connection process with the UDP server can be called.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectUdpAsync() [2/2]

bool DiarkisInterfaceBase::ConnectUdpAsync ( const std::string & udpEndpoint )

Same as ConnectUdpAsync()

Here is the call graph for this function:

◆ ConnectUdpDualModeAsync() [1/2]

bool DiarkisInterfaceBase::ConnectUdpDualModeAsync ( const char * udpEndpoint )

Attemps to connect to the server by async using socket dual mode (explicit support for IPv6) turned on. GetConnectedEvent will be invoked if connection is successfully made. When connected to the server with this method, P2P is disabled.

Parameters

[in] udpEndpoint The remote endpoint address/hostname

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectUdpDualModeAsync() [2/2]

bool DiarkisInterfaceBase::ConnectUdpDualModeAsync ( const std::string & udpEndpoint )

Same as ConnectUdpDualModeAsync()

Here is the call graph for this function:

◆ GetAuthInfo()

void DiarkisInterfaceBase::GetAuthInfo ( struct AuthInfo * auth )

Retrieves AuthInfo obtained with GetEndpoint().

Parameters

[in] auth Pointer to AuthInfo to store

◆ SetupP2P()

void DiarkisInterfaceBase::SetupP2P ( void )

virtual

P2P setup functions.

P2P connection is only available when using UDP protocol.

Here is the call graph for this function:

◆ CloseP2P()

void DiarkisInterfaceBase::CloseP2P ( void )

Disconnect all P2P connections.

◆ SetupRoom()

void DiarkisInterfaceBase::SetupRoom ( bool bRetry = false )

virtual

Setup function for Room function.

Before calling this function, it is necessary to call SetupUdp or SetupTcp depending on the protocol to be used.

Parameters

[in] bRetry Call with true when reconnecting after failing to join the room.
The first time this function is called, it must be called with false.

◆ SetupSession()

void DiarkisInterfaceBase::SetupSession ( bool bRetry = false )

virtual

Setup function for Session features.

Before calling this function, it is necessary to call SetupUdp or SetupTcp depending on the protocol to be used.

Parameters

[in] bRetry Call with true when reconnecting after failing to join the session.
The first time this function is called, it must be called with false.

◆ SetupRpc()

void DiarkisInterfaceBase::SetupRpc ( )

virtual

Setup function for RPC.

Here is the call graph for this function:

◆ SetupField()

void DiarkisInterfaceBase::SetupField ( void )

virtual

Setup function for Field function.

Before calling this function, it is necessary to call SetupUdp or SetupTcp depending on the protocol to be used.

◆ SetupGroup()

void DiarkisInterfaceBase::SetupGroup ( bool bRetry )

virtual

Setup function for Group function.

Before calling this function, SetupUdp or SetupTcp must be called depending on the protocol to be used.

Parameters

[in] bRetry Call with true when reconnecting after failing to join a group.
The first time this function is called, it must be called with false.

◆ SetupMatchMaker()

void DiarkisInterfaceBase::SetupMatchMaker ( void )

virtual

Setup function for MatchMaker function.

Before calling this function, SetupUdp or SetupTcp must be called depending on the protocol to be used.

◆ SetupDirectMessage()

void DiarkisInterfaceBase::SetupDirectMessage ( void )

virtual

DirectMessage setup functions.

Before calling this function, SetupUdp or SetupTcp must be called depending on the protocol to be used.

◆ SetupProfile()

void DiarkisInterfaceBase::SetupProfile	(	uint32_t	interval,
		uint32_t	buffer,
		bool	p2pRandomStart = `true`
	)

virtual

Setup Profile functionality.

Exchange profiling data between clients connected with P2P or Room

Parameters

[in]	interval	Interval to send profile packets in ms (Default 5000 ms, Min 300 ms)
[in]	buffer	The number of stored profiling data (Default is 16, which means store the latest 16 data. Min 8, Max 256)
[in]	p2pRandomStart	Whether or not to stagger the initial sending timing by a random amount of time to avoid sending profile packets to each connected user on P2P at the same time.

Here is the call graph for this function:

◆ SetHost() [1/2]

void DiarkisInterfaceBase::SetHost ( const char * host )

Set HTTP server address to connect to.

Here is the caller graph for this function:

◆ SetHost() [2/2]

void DiarkisInterfaceBase::SetHost ( const std::string & host )

Same as SetHost()

Here is the call graph for this function:

◆ GetHost()

Diarkis::StdString DiarkisInterfaceBase::GetHost ( ) const

Obtain the HTTP server address.

Here is the caller graph for this function:

◆ GetClientKey()

const Diarkis::StdString & DiarkisInterfaceBase::GetClientKey ( ) const

Obtain the client key of the connection destination.

Here is the caller graph for this function:

◆ SetClientKey() [1/2]

void DiarkisInterfaceBase::SetClientKey ( const char * clientKey )

接続先のクライアントキーを設定する

~@japanese

Set the client key of the connection destination

Here is the caller graph for this function:

◆ SetClientKey() [2/2]

void DiarkisInterfaceBase::SetClientKey ( const std::string & clientKey )

Same as SetClientKey()

Here is the call graph for this function:

◆ GetUid()

const Diarkis::StdString & DiarkisInterfaceBase::GetUid ( ) const

Get user ID.

Here is the caller graph for this function:

◆ GetSid()

Diarkis::StdString DiarkisInterfaceBase::GetSid ( ) const

Get the SID.

◆ SetSid() [1/2]

void DiarkisInterfaceBase::SetSid ( const char * sid )

Set the SID.

Here is the caller graph for this function:

◆ SetSid() [2/2]

void DiarkisInterfaceBase::SetSid ( const std::string & sid )

Same as SetSid()

Here is the call graph for this function:

◆ GetLoggerFactory()

std::shared_ptr< LoggerFactory > DiarkisInterfaceBase::GetLoggerFactory ( )

Get loggers.

Here is the caller graph for this function:

◆ GetConsoleLoggerBackend()

std::shared_ptr< ILoggerBackend > DiarkisInterfaceBase::GetConsoleLoggerBackend ( )

Get console output log (currently unused)

◆ GetDebugLoggerBackend()

std::shared_ptr< ILoggerBackend > DiarkisInterfaceBase::GetDebugLoggerBackend ( )

Get debug output log.

◆ GetUdpBase()

std::shared_ptr< DiarkisUdpBase > DiarkisInterfaceBase::GetUdpBase ( )

Obtaining the DiarkisUdpBase class.

◆ GetTcpBase()

std::shared_ptr< DiarkisTcpBase > DiarkisInterfaceBase::GetTcpBase ( )

Obtaining the DiarkisTcpBase class.

◆ GetP2PBase()

std::shared_ptr< DiarkisP2PBase > DiarkisInterfaceBase::GetP2PBase ( )

Get DiarkisP2PBase class.

◆ GetRoomBase()

std::shared_ptr< DiarkisRoomBase > DiarkisInterfaceBase::GetRoomBase ( )

Get DiarkisRoomBase class.

◆ GetSessionBase()

std::shared_ptr< DiarkisSessionBase > DiarkisInterfaceBase::GetSessionBase ( )

Get DiarkisSessionBase class.

◆ GetGroupBase()

std::shared_ptr< DiarkisGroupBase > DiarkisInterfaceBase::GetGroupBase ( )

Get DiarkisGroupBase class.

◆ GetFieldBase()

std::shared_ptr< DiarkisFieldBase > DiarkisInterfaceBase::GetFieldBase ( )

Get DiarkisFieldBase class.

◆ GetMatchMakerBase()

std::shared_ptr< DiarkisMatchMakerBase > DiarkisInterfaceBase::GetMatchMakerBase ( )

Get DiarkisMatchMakerBase class.

◆ GetRpcBase()

std::shared_ptr< DiarkisRpcBase > DiarkisInterfaceBase::GetRpcBase ( )

Get DiarkisRpcBase class.

◆ GetDirectMessageBase()

std::shared_ptr< DiarkisDirectMessageBase > DiarkisInterfaceBase::GetDirectMessageBase ( )

Get DiarkisDirectMessageBase class.

◆ GetProfile()

std::shared_ptr< Diarkis::Network::IDiarkisProfile > DiarkisInterfaceBase::GetProfile ( )

Get IDiarkisProfile class, which is an interface for profiling functions.

◆ Stop()

void DiarkisInterfaceBase::Stop ( )

Stop Update Loop.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Disconnect()

void DiarkisInterfaceBase::Disconnect ( )

Disconnect TCP, UDP, and P2P connections.

◆ SendPing()

void DiarkisInterfaceBase::SendPing ( void )

Send ping to UDP server.

◆ SendEcho()

void DiarkisInterfaceBase::SendEcho ( void )

Send echo to UDP server.

◆ IsOffline()

bool DiarkisInterfaceBase::IsOffline ( void )

Whether the UDP or TCP server is preparing for shutdown.

◆ StartP2P()

void DiarkisInterfaceBase::StartP2P ( void )

Call DiarkisRoomBase::SendStartP2PSync()

◆ GetP2PConnectedNum()

uint16_t DiarkisInterfaceBase::GetP2PConnectedNum ( void )

Get the number of P2P connected clients.

◆ CreateRoom()

void DiarkisInterfaceBase::CreateRoom	(	uint16_t	maxMembers,
		bool	allowEmpty,
		bool	join,
		uint16_t	ttl,
		uint32_t	interval
	)

Create a new room.

A callback event (e.g. OnRoomCreation) registered with GetCreateEvent() will be triggered.

Parameters

[in]	maxMembers	Maximum number of clients that can join the room to be created.
[in]	allowEmpty	Determines if the room will be held even if none of the clients have joined.
[in]	join	Determines if the room will be joined after it is created. true = join the room after creating it. No Join response is sent from the server. false = only creates the room. If you want to join the room, you must perform a separate Join.
[in]	ttl	Specifies the duration of the room in seconds after it is empty. Used only when true is specified for allowEmpty.
[in]	interval	Specifies the interval in milliseconds at which the server processes Broadcast messages, etc. If the value of interval is large, the server load will be reduced, but there will be a delay in receiving messages. If the value of If the value of interval is small, the server load will increase, but the message will be sent immediately from the server. The default value is 200 ms.

◆ RandomJoinRoom()

void DiarkisInterfaceBase::RandomJoinRoom	(	uint16_t	maxMembers,
		uint16_t	ttl,
		uint32_t	interval,
		bool	allowEmpty
	)

Join the room if available, otherwise create a new room.

When a new room is created, the callback event registered with GetCreateEvent() (e.g. OnRoomCreation) and
callback event registered with GetJoinEvent() (e.g. OnRoomJoin) will be triggered.
Only callback events registered with GetJoinEvent() will be triggered when joining an existing room.

Parameters

[in]	maxMembers	Maximum number of clients that can join the room to be created.
[in]	ttl	Duration in seconds after the room is empty, used only when allowEmpty is set to true.
[in]	interval	Specifies the interval in milliseconds at which the server processes messages. Messages are sent together at the server for the interval time. If the value of interval is large, the server load will be reduced, but there will be a delay in receiving messages. If the value of interval is small, the server load will increase, but the message will be sent immediately from the server. The default value is 200 ms.
[in]	allowEmpty	Determines whether or not the client will keep the room even when no one is joining.

Here is the call graph for this function:

◆ JoinRoom() [1/3]

void DiarkisInterfaceBase::JoinRoom ( )

Join a room.

Callback event registered with GetJoinEvent() (e.g. OnRoomJoin) will be triggered.
Callback event registered with GetMemberJoinEvent() (e.g. OnRoomMemberJoin) will be triggered on the member of the room. The user ID specified by uid can be received from the callback event.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ JoinRoom() [2/3]

void DiarkisInterfaceBase::JoinRoom ( const char * roomID )

Join a room.

Callback event registered with GetJoinEvent() (e.g. OnRoomJoin) will be triggered.
Callback event registered with GetMemberJoinEvent() (e.g. OnRoomMemberJoin) will be triggered on the member of the room. The user ID specified by uid can be received from the callback event.

Parameters

[in] roomID Room ID to join

Here is the call graph for this function:

◆ JoinRoom() [3/3]

void DiarkisInterfaceBase::JoinRoom ( const std::string & roomID )

Same as JoinRoom(const char*)

Here is the call graph for this function:

◆ SendMessageToRoom() [1/2]

void DiarkisInterfaceBase::SendMessageToRoom	(	const char **	memberIDs,
		size_t	memberIDsCount,
		const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable
	)

Sends a message to a specific member who has joined a room.

A callback event (e.g. OnRoomMemberMessage) registered with GetMemberMessageEvent() will be triggered.

Parameters

[in]	memberIDs	List of user IDs of members to send
[in]	memberIDsCount	Number of memberID
[in]	payload	Message to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines if the message is sent via reliable communication (RUDP); ignored for TCP protocol.

Here is the caller graph for this function:

◆ SendMessageToRoom() [2/2]

void DiarkisInterfaceBase::SendMessageToRoom	(	const std::vector< std::string > &	memberIDs,
		const std::vector< uint8_t > &	payload,
		bool	reliable
	)

Same as SendMessageToRoom()

Here is the call graph for this function:

◆ SendLeaveRoom()

void DiarkisInterfaceBase::SendLeaveRoom ( )

Leaving a room.

Callback event (e.g. OnRoomLeave) registered with GetLeaveEvent() will be triggered.
If the exit is successful, a callback event (e.g. OnRoomMemberLeave) registered with GetMemberLeaveEvent()
will be triggered on each member of the room.

Here is the call graph for this function:

◆ FindByTypeRoom()

void DiarkisInterfaceBase::FindByTypeRoom	(	uint32_t	roomType,
		uint32_t	limit
	)

Searches for rooms of the same type.

Callback events registered with GetFindByTypeEvnet() (e.g. OnRoomFindByType) will be triggered.
In the callback event, you can receive a list of rooms as a result of the search.

Parameters

[in]	roomType	Type of room to search
[in]	limit	Maximum number of rooms in the list of search results

◆ RegisterRoom() [1/2]

void DiarkisInterfaceBase::RegisterRoom	(	uint32_t	roomType,
		const char *	roomName,
		const char *	roomMetadata
	)

Register additional information about the room you are participating in.

Affects searching for a type by FindRoomsByType.

Parameters

[in]	roomType	Room type
[in]	roomName	Room name
[in]	roomMetadata	Extended string of room

Here is the caller graph for this function:

◆ RegisterRoom() [2/2]

void DiarkisInterfaceBase::RegisterRoom	(	uint32_t	roomType,
		const std::string &	roomName,
		const std::string &	roomMetadata
	)

Same as RegisterRoom()

Here is the call graph for this function:

◆ SendMigrateRoom()

void DiarkisInterfaceBase::SendMigrateRoom ( void )

Move the room to a different server.

Only the room owner can call this function.
Upon successful execution, a notification is sent from the server to each member of the room
and the callback event registered with GetMigrateEvent() (e.g. OnRoomMigrate) is triggered.
The library internally leaves from the currently joined room and joins a new room to the server.

◆ SendGetOwnerID()

void DiarkisInterfaceBase::SendGetOwnerID ( void )

Get the room owner's user ID.

The callback event (e.g. OnGetOwnerID) registered with GetOwnerIDEvent() will be triggered.

◆ SendGetMemberIDs()

void DiarkisInterfaceBase::SendGetMemberIDs ( void )

Get a list of user IDs of members participating in a room.

Callback events (e.g. OnRoomMemberIDs) registered with GetMemberIDSEvent() will be triggered.

◆ GetRoomID()

Diarkis::StdString DiarkisInterfaceBase::GetRoomID ( )

Get the Room ID of the room you are participating in.

◆ SendCreateGroup()

void DiarkisInterfaceBase::SendCreateGroup	(	bool	allowEmpty,
		bool	join,
		uint16_t	ttl
	)

Creates a new group.

Callback events registered with GetCreateEvent() (e.g. OnGroupCreation) will be triggered.

Parameters

[in]	allowEmpty	Determines if the client will keep the group even when no one has joined. true = Keep the group even when no clients are present. false = If the client is gone the group will be destroyed after the time specified by ttl has elapsed.
[in]	join	Determines whether or not a new group is created and then joined. true = Join the group after it is created. In this case, the server will not respond to the Join request. false = Only creates the group. If you want to join the group, you need to execute Join separately.
[in]	ttl	Specifies the duration, in seconds, of a group's existence after it becomes empty; used only if allowEmpty is set to true.

◆ SendJoinGroup() [1/2]

void DiarkisInterfaceBase::SendJoinGroup	(	const char *	groupID,
		const char *	message
	)

Join an existing group.

A callback event registered with GetJoinEvent() (e.g. OnGroupJoin) will be triggered.
A callback event registered with GetMemberJoinEvent() (e.g. OnGroupMemberJoin) will be triggered for the member of the target group.

Parameters

[in]	groupID	ID of the group to join
[in]	message	Sends an message to group members when join. For example, you can include a user ID to notify the user ID of a newly joined member.

Here is the caller graph for this function:

◆ SendJoinGroup() [2/2]

void DiarkisInterfaceBase::SendJoinGroup	(	const std::string &	groupID,
		const std::string &	message
	)

Same as SendJoingGroup()

Here is the call graph for this function:

◆ SendRandomJoinGroup() [1/2]

void DiarkisInterfaceBase::SendRandomJoinGroup	(	uint16_t	ttl,
		const char *	message,
		uint32_t	interval = `200`
	)

If there is a group you can join, join that group, otherwise create a new group.

If you join an existing group, a callback event registered with GetJoinEvent() (e.g. OnGroupJoin) will be triggered.
When a new group is created, the callback event registered with GetCreateEvent() (e.g. OnGroupCreation ) will be triggered.

Parameters

[in]	ttl	Duration in seconds since the group became empty, used only when allowEmpty is set to true.
[in]	message	Sends an optional message to group members when they join.
[in]	interval	Specifies the interval in milliseconds between when the server processes BroadcastTo. The default value is 200ms. The messages for the time specified by interval are compiled and sent by the server.

Here is the caller graph for this function:

◆ SendRandomJoinGroup() [2/2]

void DiarkisInterfaceBase::SendRandomJoinGroup	(	uint16_t	ttl,
		const std::string &	message,
		uint32_t	interval = `200`
	)

Same as SendRandomJoinGroup()

Here is the call graph for this function:

◆ SendLeaveGroup() [1/2]

void DiarkisInterfaceBase::SendLeaveGroup	(	const char *	groupID,
		const char *	message
	)

Leave from the specified group.

Callback event registered with GetMemberLeaveEvent() (e.g. OnGroupMemberLeave) will be triggered.

Parameters

[in]	groupID	ID of the group to leave
[in]	message	Sends an message to group members when leaving.

Here is the caller graph for this function:

◆ SendLeaveGroup() [2/2]

void DiarkisInterfaceBase::SendLeaveGroup	(	const std::string &	groupID,
		const std::string &	message
	)

Same as SendLeaveGroup()

Here is the call graph for this function:

◆ GetGroupID()

Diarkis::StdString DiarkisInterfaceBase::GetGroupID ( )

Retrieve the Group ID of the participating group.

◆ ClearUdpBuffer()

void DiarkisInterfaceBase::ClearUdpBuffer ( )

Clear send and receive buffer of Socket.

◆ RequestEndpointAsync() [1/2]

bool DiarkisInterfaceBase::RequestEndpointAsync	(	const char *	host,
		const char *	clientKey,
		const char *	type,
		DiarkisThreadPolicy	policy,
		int	priority,
		uint32_t	affinityMask,
		uint32_t	stackSize
	)

Connect to an HTTP server and perform asynchronous processing to obtain TCP/UDP endpoints.

Execution status of asynchronous processing can be obtained with GetEndpointAsyncStatus().
The result of the acquisition can be obtained with GetAsyncEndpointResult().

Parameters

[in]	host	HTTP server address
[in]	clientKey	client key of HTTP server
[in]	type	Type of server to be acquired
[in]	policy	Specification of the policy for scheduling threads that perform HTTP access. (Windows is not affected even if specified.)
[in]	priority	Priority of the thread that performs HTTP access. Specify by +- increase or decrease from the current (standard) setting. Specify DiarkisThreadPriority when ps5 is used.
[in]	affinityMask	CPU affinity setting. 1st bit = cpu1, threads are allocated from the CPU core with the smallest number where the bit stands. (PS5 only)
[in]	stackSize	Stack size of the asyncronous thread

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RequestEndpointAsync() [2/2]

bool DiarkisInterfaceBase::RequestEndpointAsync	(	const std::string &	host,
		const std::string &	clientKey,
		const std::string &	type,
		DiarkisThreadPolicy	policy,
		int	priority,
		uint32_t	affinityMask,
		uint32_t	stackSize
	)

Same as RequestEndpointAsync()

Here is the call graph for this function:

◆ GetEndpointAsyncStatus()

DiarkisInterfaceBase::AsyncGetEndpointStatus DiarkisInterfaceBase::GetEndpointAsyncStatus ( ) const

Get the progress of the process of getting the server endpoint asynchronous.

Returns: Progress

◆ GetAsyncEndpointResult()

bool DiarkisInterfaceBase::GetAsyncEndpointResult ( Diarkis::StdString & endpoint ) const

Get the result of getting the endpoint by asynchronous.

Parameters

[out] endpoint Specified server address

Returns: Whether the asynchronous process finished successfully

◆ InitAndStartup()

void DiarkisInterfaceBase::InitAndStartup ( bool bInitBaseClass )

protected

Initialize logs and classes of each module.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateLogFolder()

void DiarkisInterfaceBase::CreateLogFolder ( )

staticprotected

Create folder for log output destination.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RuntimeLoop()

Diarkis::System::Result DiarkisInterfaceBase::RuntimeLoop ( void * owner )

staticprotected

Loop function to call Diarkis client library updates.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SchedulerAddNotifyEvent()

void DiarkisInterfaceBase::SchedulerAddNotifyEvent ( )

protected

An event that is executed when an event has been added to the scheduler of TCP/UDP/P2P.

Here is the caller graph for this function:

◆ InitializeLoggerEnvironment()

void DiarkisInterfaceBase::InitializeLoggerEnvironment ( )

staticprotected

Initialize loggers for the Diarkis depending on the logOutType.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsLogOutputTypeFile()

bool DiarkisInterfaceBase::IsLogOutputTypeFile ( )

staticprotected

Returns whether the log output to a file.

Here is the caller graph for this function:

◆ TerminateGetEndpointAsyncThread()

void DiarkisInterfaceBase::TerminateGetEndpointAsyncThread ( )

protected

Terminate thread for the getting the endpoint async process.

Here is the caller graph for this function:

◆ GetEndpointAsync()

Diarkis::System::Result DiarkisInterfaceBase::GetEndpointAsync ( void * owner )

staticprotected

Thread executed by RequestEndpointAsync()

Here is the caller graph for this function:

Member Data Documentation

◆ runtimeThreadData_

DiarkisInterfaceBase::RuntimeThreadData DiarkisInterfaceBase::runtimeThreadData_

staticprotected

A data of the runtime thread.

◆ activeInstances_

DiarkisInterfaceBase::ActiveInstanceList DiarkisInterfaceBase::activeInstances_

staticprotected

A list of active instances.

◆ globalLoggerFactory_

std::shared_ptr< LoggerFactory > DiarkisInterfaceBase::globalLoggerFactory_ = nullptr

staticprotected

A LoggerFactory that will be used for logging of the global process of the DiarkisInterfaceBase.

◆ tcpBase_

std::shared_ptr<DiarkisTcpBase> DiarkisInterfaceBase::tcpBase_

protected

Pointer to DiarkisTcpBase class.

◆ udpBase_

std::shared_ptr<DiarkisUdpBase> DiarkisInterfaceBase::udpBase_

protected

Pointer to DiarkisUdpBase class.

◆ p2pBase_

std::shared_ptr<DiarkisP2PBase> DiarkisInterfaceBase::p2pBase_

protected

Pointer to DiarkisP2PBase class.

◆ roomBase_

std::shared_ptr<DiarkisRoomBase> DiarkisInterfaceBase::roomBase_

protected

Pointer to DiarkisRoomBase class.

◆ sessionBase_

std::shared_ptr<DiarkisSessionBase> DiarkisInterfaceBase::sessionBase_

protected

Pointer to DiarkisSessionBase class.

◆ groupBase_

std::shared_ptr<DiarkisGroupBase> DiarkisInterfaceBase::groupBase_

protected

Pointer to DiarkisGroupBase class.

◆ fieldBase_

std::shared_ptr<DiarkisFieldBase> DiarkisInterfaceBase::fieldBase_

protected

Pointer to DiarkisFieldBase class.

◆ matchMakerBase_

std::shared_ptr<DiarkisMatchMakerBase> DiarkisInterfaceBase::matchMakerBase_

protected

Pointer to DiarkisMatchMakerBase class.

◆ rpcBase_

std::shared_ptr<DiarkisRpcBase> DiarkisInterfaceBase::rpcBase_

protected

Pointer to DiarkisRpcBase class.

◆ dmBase_

std::shared_ptr<DiarkisDirectMessageBase> DiarkisInterfaceBase::dmBase_

protected

Pointer to DiarkisDirectMessageBase class.

◆ profile_

std::shared_ptr<Diarkis::Network::IDiarkisProfile> DiarkisInterfaceBase::profile_

protected

Pointer to IDiarkisProfile class.

◆ host_

Diarkis::StdString DiarkisInterfaceBase::host_

protected

Address of the HTTP server to connect to.

◆ clientKey_

Diarkis::StdString DiarkisInterfaceBase::clientKey_

protected

Client key of the HTTP server to connect to.

◆ uid_

const Diarkis::StdString DiarkisInterfaceBase::uid_

protected

My user ID.

◆ serverType_

Diarkis::StdString DiarkisInterfaceBase::serverType_

protected

Server type.

◆ sid_

Diarkis::StdString DiarkisInterfaceBase::sid_

protected

Session ID.

◆ authInfo_

AuthInfo DiarkisInterfaceBase::authInfo_

protected

Authentication information.

◆ logDir_

std::shared_ptr< Diarkis::StdString > DiarkisInterfaceBase::logDir_ = nullptr

staticprotected

Log output directory name.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisInterfaceBase::logger_

protected

Pointer to logger class.

◆ loggerFactory_

std::shared_ptr<LoggerFactory> DiarkisInterfaceBase::loggerFactory_

protected

Pointer to LoggerFactory.

◆ threadLoggerBackend_

std::shared_ptr< ThreadedLoggerBackend > DiarkisInterfaceBase::threadLoggerBackend_ = nullptr

staticprotected

Threaded loggers for collective output.

◆ consoleLoggerBackend_

std::shared_ptr< ILoggerBackend > DiarkisInterfaceBase::consoleLoggerBackend_ = nullptr

staticprotected

Logger for console output.

◆ debugLoggerBackend_

std::shared_ptr< ILoggerBackend > DiarkisInterfaceBase::debugLoggerBackend_ = nullptr

staticprotected

Logger for debug output.

◆ fileLoggerBackend_

std::shared_ptr< ILoggerBackend > DiarkisInterfaceBase::fileLoggerBackend_ = nullptr

staticprotected

Logger for file output.

◆ customLoggerBackend_

std::shared_ptr< ILoggerBackend > DiarkisInterfaceBase::customLoggerBackend_ = nullptr

staticprotected

Custom logger.

◆ aggregatedLoggerBackend_

std::shared_ptr< ILoggerBackend > DiarkisInterfaceBase::aggregatedLoggerBackend_ = nullptr

staticprotected

A logger interface that is used in the LoggerFactory.

◆ logOutType_

LogOutType DiarkisInterfaceBase::logOutType_ = LogOutType::FILE_OUT

staticprotected

Type of debug output.

◆ bOutputLog_

bool DiarkisInterfaceBase::bOutputLog_ = false

staticprotected

Whether to log output or not.

◆ connectioninfoMutex_

std::mutex DiarkisInterfaceBase::connectioninfoMutex_

mutableprotected

The mutex for the variables that are modified in the GetEndpoint method.

◆ asyncGetEndpointMutex_

std::mutex DiarkisInterfaceBase::asyncGetEndpointMutex_

mutableprotected

The mutex for the whole process of getting the endpoint asynchronously.

◆ asyncGetEndpointArgs_

AsyncGetEndpointArgs DiarkisInterfaceBase::asyncGetEndpointArgs_

protected

The arguments passing to the asynchronous getting the endpoint process.

◆ asyncGetEndpointStatus_

AsyncGetEndpointStatus DiarkisInterfaceBase::asyncGetEndpointStatus_

protected

The progress of the process of getting the endpoint asynchronously.

◆ asyncGetEndpointResult_

bool DiarkisInterfaceBase::asyncGetEndpointResult_

protected

The result of the process of getting the endpoint asynchronously.

◆ asyncEndpointResult_

Diarkis::StdString DiarkisInterfaceBase::asyncEndpointResult_

protected

The result of the process of getting the endpoint asynchronously.

◆ asyncAuthResult_

AuthInfo DiarkisInterfaceBase::asyncAuthResult_

protected

The result of the process of getting the endpoint asynchronously.

◆ getEndpointAsyncThread_

std::shared_ptr<Diarkis::System::DiarkisThread> DiarkisInterfaceBase::getEndpointAsyncThread_

protected

The thread used by the process of getting the endpoint asynchronously.

◆ internalSchedulerUpdated_

std::atomic<bool> DiarkisInterfaceBase::internalSchedulerUpdated_

protected

A flag enabled if the scheduler is updated.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisInterfaceBase.h
client/cpp/diarkis-module/Client/Private/DiarkisInterfaceBase.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ AsyncGetEndpointStatus

Constructor & Destructor Documentation

◆ DiarkisInterfaceBase() [1/2]

◆ DiarkisInterfaceBase() [2/2]

◆ ~DiarkisInterfaceBase()

Member Function Documentation

◆ DiarkisInit() [1/2]

◆ DiarkisInit() [2/2]

◆ DiarkisDestroy()

◆ UpdateComponents()

◆ ConnectTcp() [1/3]

◆ SetupTcp()

◆ ConnectTcp() [2/3]

◆ ConnectTcp() [3/3]

◆ ConnectUdp() [1/4]

◆ GetEndpoint() [1/2]

◆ GetEndpoint() [2/2]

◆ SetupUdp()

◆ ConnectUdp() [2/4]

◆ ConnectUdp() [3/4]

◆ ConnectUdp() [4/4]

◆ ConnectUdpAsync() [1/2]

◆ ConnectUdpAsync() [2/2]

◆ ConnectUdpDualModeAsync() [1/2]

◆ ConnectUdpDualModeAsync() [2/2]

◆ GetAuthInfo()

◆ SetupP2P()

◆ CloseP2P()

◆ SetupRoom()

◆ SetupSession()

◆ SetupRpc()

◆ SetupField()

◆ SetupGroup()

◆ SetupMatchMaker()

◆ SetupDirectMessage()

◆ SetupProfile()

◆ SetHost() [1/2]

◆ SetHost() [2/2]

◆ GetHost()

◆ GetClientKey()

◆ SetClientKey() [1/2]

◆ SetClientKey() [2/2]

◆ GetUid()

◆ GetSid()

◆ SetSid() [1/2]

◆ SetSid() [2/2]

◆ GetLoggerFactory()

◆ GetConsoleLoggerBackend()

◆ GetDebugLoggerBackend()

◆ GetUdpBase()

◆ GetTcpBase()

◆ GetP2PBase()

◆ GetRoomBase()

◆ GetSessionBase()

◆ GetGroupBase()

◆ GetFieldBase()

◆ GetMatchMakerBase()

◆ GetRpcBase()

◆ GetDirectMessageBase()

◆ GetProfile()

◆ Stop()

◆ Disconnect()

◆ SendPing()

◆ SendEcho()

◆ IsOffline()

◆ StartP2P()

◆ GetP2PConnectedNum()

◆ CreateRoom()

◆ RandomJoinRoom()

◆ JoinRoom() [1/3]
