Base class that wraps the IDiarkisRoom class for easy use of Room functionality. More...

#include <DiarkisRoomBase.h>

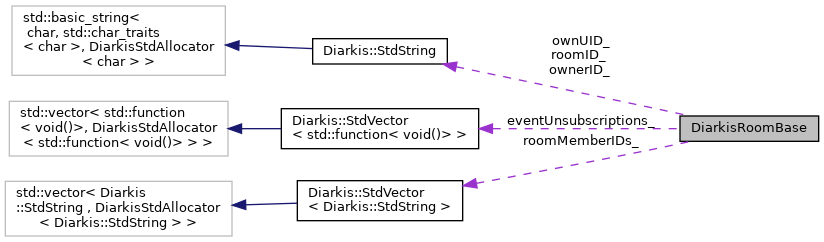

Collaboration diagram for DiarkisRoomBase:

[legend]

Public Member Functions
	DiarkisRoomBase ()
	DiarkisRoomBase constructor. More...

virtual	~DiarkisRoomBase ()
	DiarkisRoomBase destructor. More...

virtual void	SetupTcpRoom (const std::shared_ptr< IDiarkisTcp > &tcp, const std::shared_ptr< LoggerFactory > &loggerFactory, bool bRetry)
	Set up Room with TCP protocol. More...

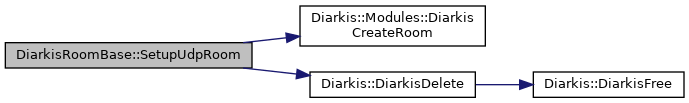

virtual void	SetupUdpRoom (const std::shared_ptr< IDiarkisUdp > &udp, const std::shared_ptr< LoggerFactory > &loggerFactory, const std::shared_ptr< DiarkisP2PBase > &p2pBase, bool bRetry)
	Set up Room with UDP protocol. More...

std::shared_ptr< IDiarkisRoom >	GetRoom ()
	Get the pointer to IDiarkisRoom class. More...

void	SetJoinRoomID (const char *roomID)
	Set the Room ID. More...

void	SetJoinRoomID (const std::string &roomID)
	Same as SetJoinRoomID() More...

virtual void	SendCreateRoom (uint16_t maxMembers, bool allowEmpty, bool join, uint16_t ttl, uint32_t interval)
	Create a new Room. More...

virtual void	SendJoinRoom (const char *uid)
	Join a Room. More...

virtual void	SendJoinRoom (const std::string &uid)
	Same as SendJoinRoom(const char*) More...

virtual void	SendJoinRoom (const char roomID, const char uid)
	Joins the Room with the specified Room ID. More...

virtual void	SendJoinRoom (const std::string &roomID, const std::string &uid)
	Same as SendJoinRoom(const char, const char) More...

virtual void	SendJoinRandomRoom (const char *uid, uint32_t maxMembers, uint16_t ttl, uint32_t interval, bool allowEmpty)
	Join the Room if available, otherwise create a new Room. More...

virtual void	SendJoinRandomRoom (const std::string &uid, uint32_t maxMembers, uint16_t ttl, uint32_t interval, bool allowEmpty)
	Same as SendJoinRandomRoom() More...

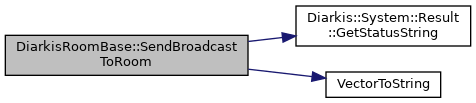

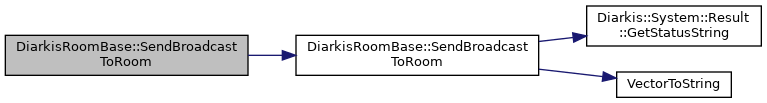

virtual void	SendBroadcastToRoom (const uint8_t *payload, size_t payloadSize, bool reliable)
	Sends a message to all Room members including yourself. More...

virtual void	SendBroadcastToRoom (const std::vector< uint8_t > &payload, bool reliable)
	Same as SendBroadcastToRoom() More...

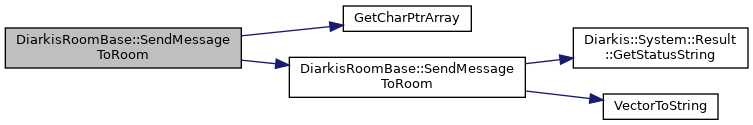

virtual void	SendMessageToRoom (const char *memberIDs, size_t memberIDsCount, const uint8_t payload, size_t payloadSize, bool reliable)
	Sends a message to a specific member who has joined a Room. More...

virtual void	SendMessageToRoom (const std::vector< std::string > &memberIDs, const std::vector< uint8_t > &payload, bool reliable)
	Same as SendMessageToRoom() More...

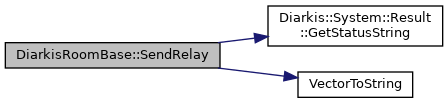

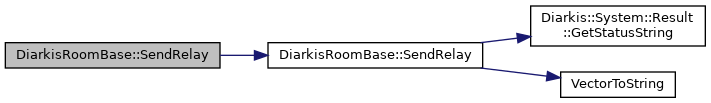

virtual void	SendRelay (const uint8_t *payload, size_t payloadSize, bool reliable)
	Sends a message to Room members other than yourself. More...

virtual void	SendRelay (const std::vector< uint8_t > &payload, bool reliable)
	Same as SendRelay() More...

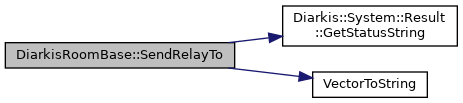

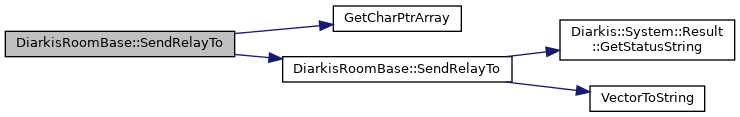

virtual void	SendRelayTo (const char *memberIDs, size_t memberIDsCount, const uint8_t payload, size_t payloadSize, bool reliable)
	Sends a message to a specific member participating in a Room. More...

virtual void	SendRelayTo (const std::vector< std::string > &memberIDs, const std::vector< uint8_t > &payload, bool reliable)
	Same as SendRelayTo() More...

virtual void	SendLeaveRoom (const char *uid)
	Leaving a Room. More...

virtual void	SendLeaveRoom (const std::string &uid)
	Same as SendLeaveRoom() More...

virtual void	SendFindByTypeRoom (uint32_t roomType, uint32_t limit)
	Searches for Rooms of the same type. More...

virtual void	SendRegisterRoom (uint32_t roomType, const char roomName, const char roomMetadata)
	Register additional information about the Room you are participating in. More...

virtual void	SendRegisterRoom (uint32_t roomType, const std::string &roomName, const std::string &roomMetadata)
	Same as SendRegisterRoom() More...

virtual void	SendMigrateRoom (void)
	Move the Room to a different server. More...

virtual void	SendGetOwnerID (void)
	Get the Room owner's user ID. More...

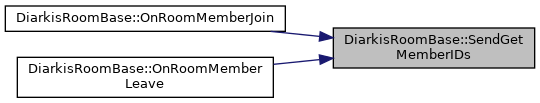

virtual void	SendGetMemberIDs (void)
	Get a list of user IDs of members participating in a Room. More...

virtual void	SendGetNumberOfMembers (void)
	Get the number of members in the Room. More...

virtual void	SendUpdateProperties (const std::unordered_map< std::string, std::vector< uint8_t >> &properties, bool sync=false)
	Set Room properties. More...

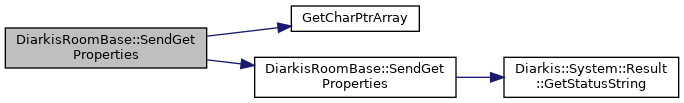

virtual void	SendGetProperties (const char **propertyNames, size_t propertyNamesCount)
	Get Room properties. More...

virtual void	SendGetProperties (const std::vector< std::string > &propertyNames)
	Same as SendGetProperties() More...

virtual void	SendIncrementProperty (Diarkis::StdString propertyName, int64_t delta, bool sync)
	Increases or decreases the value of the specified Room property. More...

virtual void	SendReserveRoom (const char **userIDs, size_t userIDsCount)
	Reserves a member to join a Room. More...

virtual void	SendReserveRoom (const std::vector< std::string > &userIDs)
	Same as SendReserveRoom() More...

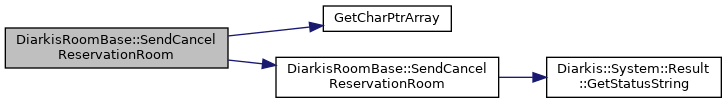

virtual void	SendCancelReservationRoom (const char cancelRoomID, const char *userIDs, size_t userIDsCount)
	Cancels a Room reservation. More...

virtual void	SendCancelReservationRoom (const std::string &cancelRoomID, const std::vector< std::string > &userIDs)
	Same as SendCancelReservationRoom() More...

virtual void	SendChatMessage (const char *message)
	Sends a chat message to the Room members. More...

virtual void	SendChatMessage (const std::string &message)
	Same as SendChatMessage() More...

virtual void	SendGetChatLog (void)
	Retrieve past chat messages. More...

virtual void	SendStartP2PSync (uint8_t linkedClients=0)
	Starts P2P communication with the members participating in the Room. More...

virtual void	SendUpdateObject (RoomObjectMode mode, const std::string &name, const std::unordered_map< std::string, double > &obj, bool reliable=true)
	Updates the Room object. More...

bool	IsJoin ()
	Whether or not you are participating in the Room. More...

bool	IsFail ()
	Whether or not you failed to join the Room. More...

bool	IsFind ()
	Whether the Room was found by FindRoomsByType. More...

bool	IsNotFind ()
	Whether the Room was not found by FindRoomsByType. More...

bool	IsMigrate ()
	Whether the Room is under migration or not. More...

bool	IsLeave ()
	Whether or not you have left the Room. More...

bool	IsReserve ()
	Whether you reserved a Room or not. More...

Diarkis::StdString	GetRoomID (void)
	Get the Room ID of the Room you are participating in. More...

Diarkis::StdString	GetOwnerUID (void)
	Retrieves the user ID of the participating Room owner. More...

Diarkis::StdString	GetOwnUID (void) const
	Obtain your own user ID. More...

void	SetOwnUID (const char *uid)
	Set your own user ID. More...

void	SetOwnUID (const std::string &uid)
	Same as SetOwnUID() More...

void	GetRoomMembers (Diarkis::StdVector< Diarkis::StdString > &memberList)
	Get the user IDs of the members of the Room. More...

const Diarkis::StdVector< Diarkis::StdString > &	GetRoomMembers () const
	Get the user IDs of the members of the Room. More...

Protected Member Functions

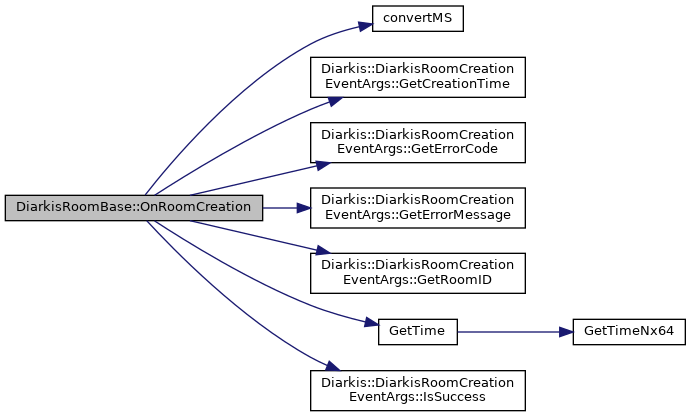

virtual void	OnRoomCreation (const DiarkisRoomCreationEventArgs &e)
	Callback function called when a Room is created. More...

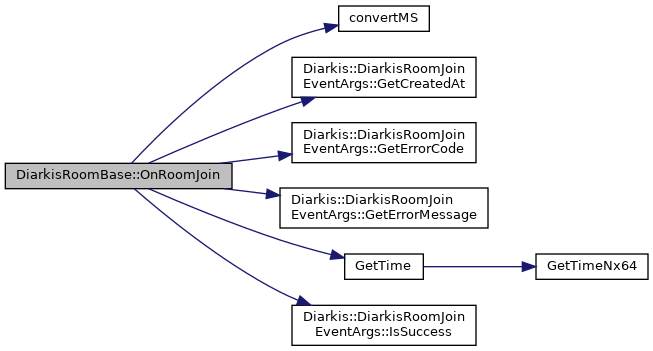

virtual void	OnRoomJoin (const DiarkisRoomJoinEventArgs &e)
	Callback function called when joined a Room. More...

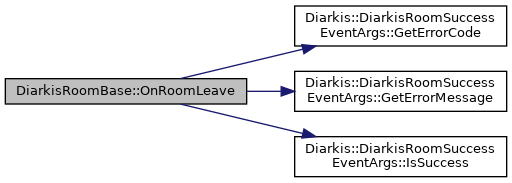

virtual void	OnRoomLeave (const DiarkisRoomSuccessEventArgs &e)
	Callback function called when left from a Room. More...

virtual void	OnRoomMigrateStart (void)
	Callback function called when a Room migration starts. More...

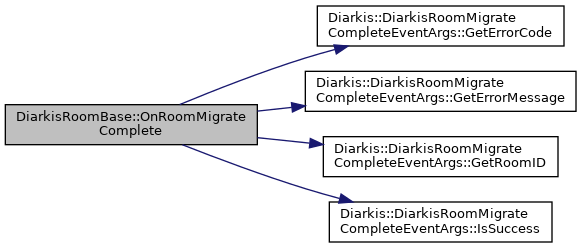

virtual void	OnRoomMigrateComplete (const DiarkisRoomMigrateCompleteEventArgs &e)
	Callback function called when a Room migration is completed. More...

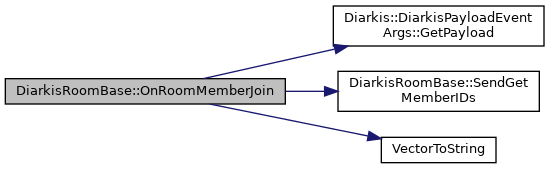

virtual void	OnRoomMemberJoin (const DiarkisPayloadEventArgs &e)
	Callback function called when another client joins the Room. More...

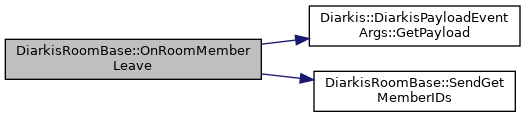

virtual void	OnRoomMemberLeave (const DiarkisPayloadEventArgs &e)
	Callback function called when a Room member leaves the Room. More...

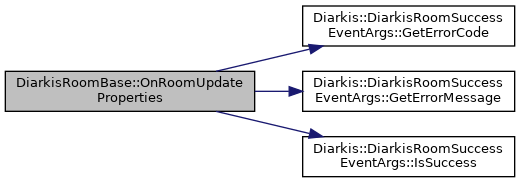

virtual void	OnRoomUpdateProperties (const DiarkisRoomSuccessEventArgs &e)
	Callback function called when properties are updated with UpdateProperties. More...

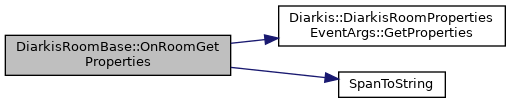

virtual void	OnRoomGetProperties (const DiarkisRoomPropertiesEventArgs &e)
	Callback function called when properties are retrieved with GetProperties. More...

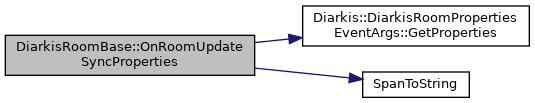

virtual void	OnRoomUpdateSyncProperties (const DiarkisRoomPropertiesEventArgs &e)
	Callback function called when properties are updated with UpdateProperties. More...

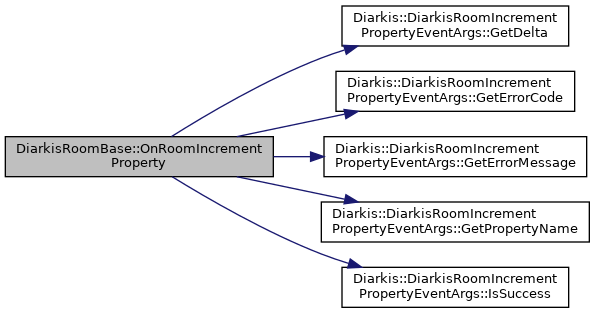

virtual void	OnRoomIncrementProperty (const DiarkisRoomIncrementPropertyEventArgs &e)
	Callback function called when the property is changed with IncrementProperty. More...

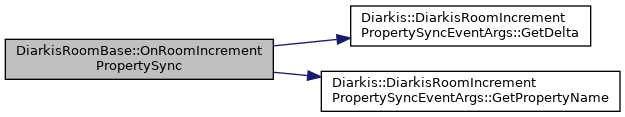

virtual void	OnRoomIncrementPropertySync (const DiarkisRoomIncrementPropertySyncEventArgs &e)
	Callback function called when the property is changed with IncrementProperty. More...

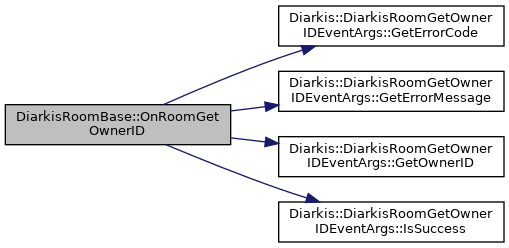

virtual void	OnRoomGetOwnerID (const DiarkisRoomGetOwnerIDEventArgs &e)
	Callback function called when the user ID of a participating Room owner is obtained. More...

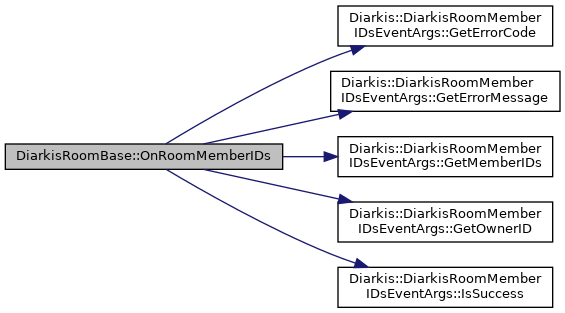

virtual void	OnRoomMemberIDs (const DiarkisRoomMemberIDsEventArgs &e)
	Callback function called to retrieve the user IDs of participating Room members. More...

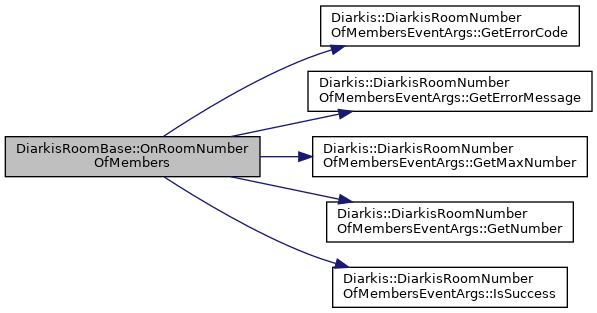

virtual void	OnRoomNumberOfMembers (const DiarkisRoomNumberOfMembersEventArgs &e)
	Callback function called to get the number of members in a Room. More...

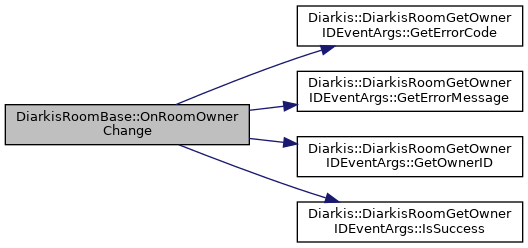

virtual void	OnRoomOwnerChange (const DiarkisRoomGetOwnerIDEventArgs &e)
	Callback function called when the Room owner is changed. More...

virtual void	OnRoomMemberBroadcast (const DiarkisPayloadEventArgs &e)
	Callback function called when received a Broadcast message. More...

virtual void	OnRoomMemberMessage (const DiarkisPayloadEventArgs &e)
	Callback function called when received a message by MessageTo. More...

virtual void	OnRoomRelay (const DiarkisPayloadEventArgs &e)
	Callback function called when received a message by Relay. More...

virtual void	OnRoomRelayTo (const DiarkisPayloadEventArgs &e)
	Callback function called when received a message by RelayTo. More...

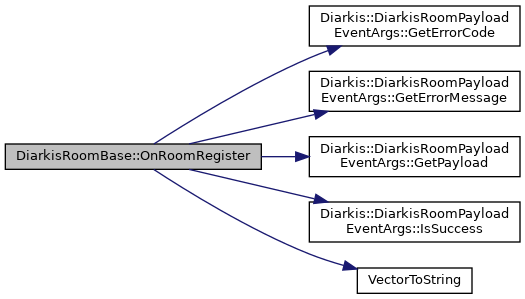

virtual void	OnRoomRegister (const DiarkisRoomPayloadEventArgs &e)
	Callback function called when additional information is registered for a participating Room. More...

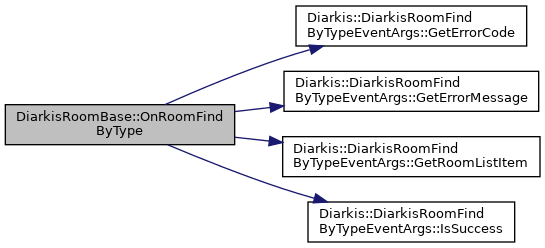

virtual void	OnRoomFindByType (const DiarkisRoomFindByTypeEventArgs &e)
	Callback function called when a FindRoomsByType search result is received. More...

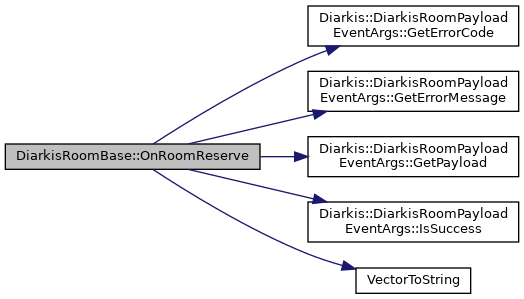

virtual void	OnRoomReserve (const DiarkisRoomPayloadEventArgs &e)
	Callback function called when a response to Reserve is received. More...

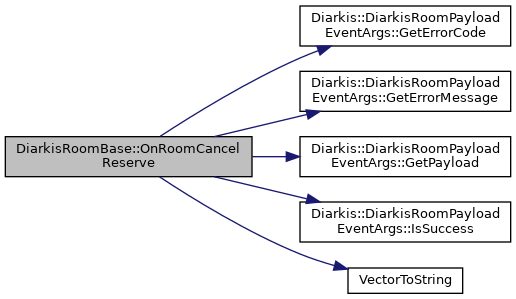

virtual void	OnRoomCancelReserve (const DiarkisRoomPayloadEventArgs &e)
	Callback function called when a response to CancelReservation is received. More...

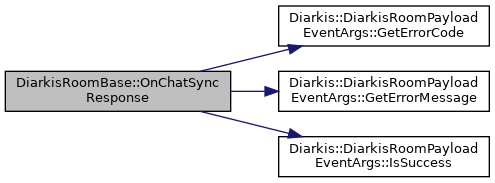

virtual void	OnChatSyncResponse (const DiarkisRoomPayloadEventArgs &e)
	Callback function called when a response to a chat transmission is received. More...

virtual void	OnChatSync (const DiarkisRoomChatEventArgs &e)
	Callback function called when chat is received. More...

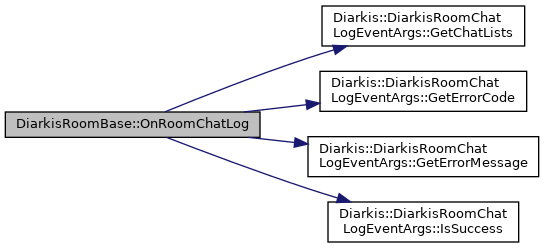

virtual void	OnRoomChatLog (const DiarkisRoomChatLogEventArgs &e)
	Callback function called when a response to GetChatLog is received. More...

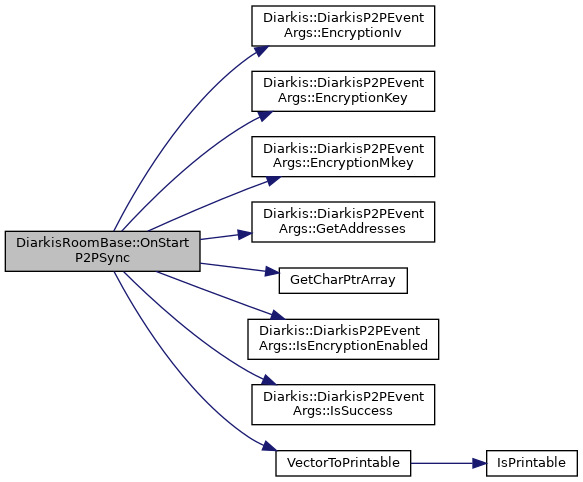

virtual void	OnStartP2PSync (const DiarkisP2PEventArgs &e)
	StartP2PSyncプッシュ通知を受信したときに呼び出されるコールバック関数 More...

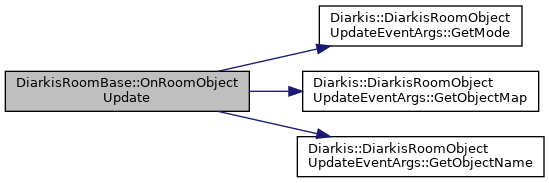

virtual void	OnRoomObjectUpdate (const DiarkisRoomObjectUpdateEventArgs &e)
	Callback event called when a UpdateObject push is received. More...

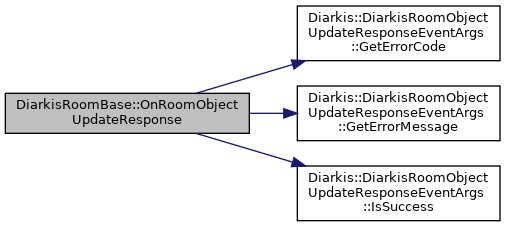

virtual void	OnRoomObjectUpdateResponse (const DiarkisRoomObjectUpdateResponseEventArgs &e)
	Callback event called when a response is received to an update of a Room object. More...

virtual void	OnOffline ()
	Callback event called when the server is ready to shutdown. More...

Protected Attributes
std::shared_ptr< IDiarkisTcp >	tcp_
	Pointer to IDiarkisTcp class. More...

std::shared_ptr< IDiarkisUdp >	udp_
	Pointer to IDiarkisUdp class. More...

std::shared_ptr< IDiarkisRoom >	room_
	Pointer to IDiarkisRoom class. More...

std::shared_ptr< DiarkisP2PBase >	p2pBase_
	Pointer to DiarkisP2PBase class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to IDiarkisLogger class. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	Lambda functions list. More...

Diarkis::StdString	roomID_
	Room ID of the participating Room. More...

ConnectState	roomConnect_
	Room state. More...

std::recursive_mutex	list_mutex_
	roomMemberIDs Mutex More...

Diarkis::StdVector< Diarkis::StdString >	roomMemberIDs_
	List of Room members' user IDs. More...

Diarkis::StdString	ownUID_
	自分のユーザーID More...

Diarkis::StdString	ownerID_
	User ID of the Room owner. More...

int64_t	createAtServer_
	The time the Room you are currently in was created on the server. More...

bool	bReserved_
	Whether you reserved a Room or not. More...

Detailed Description

Base class that wraps the IDiarkisRoom class for easy use of Room functionality.

Constructor & Destructor Documentation

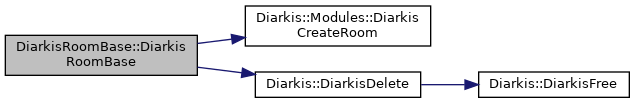

◆ DiarkisRoomBase()

DiarkisRoomBase::DiarkisRoomBase ( )

DiarkisRoomBase constructor.

Here is the call graph for this function:

◆ ~DiarkisRoomBase()

DiarkisRoomBase::~DiarkisRoomBase ( )

virtual

DiarkisRoomBase destructor.

Member Function Documentation

◆ SetupTcpRoom()

void DiarkisRoomBase::SetupTcpRoom	(	const std::shared_ptr< IDiarkisTcp > &	tcp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory,
		bool	bRetry
	)

virtual

Set up Room with TCP protocol.

Register loggers and callback functions.

Parameters

[in]	tcp	Pointer to IDiarkisTcp class
[in]	loggerFactory	Pointer to logger class
[in]	bRetry	Call this function with true when reconnecting after a failed attempt to join a Room. The first call to this function must be false.

Here is the call graph for this function:

◆ SetupUdpRoom()

void DiarkisRoomBase::SetupUdpRoom	(	const std::shared_ptr< IDiarkisUdp > &	udp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory,
		const std::shared_ptr< DiarkisP2PBase > &	p2pBase,
		bool	bRetry
	)

virtual

Set up Room with UDP protocol.

Register loggers and callback functions.

Parameters

[in]	udp	Pointer to IDiarkisUdp class
[in]	loggerFactory	Room Log for client library
[in]	p2pBase	Pointer to DiarkisP2PBase class
[in]	bRetry	Call this function with true when reconnecting after a failed attempt to join a Room. The first call to this function must be false.

Here is the call graph for this function:

◆ GetRoom()

std::shared_ptr< IDiarkisRoom > DiarkisRoomBase::GetRoom ( )

Get the pointer to IDiarkisRoom class.

◆ SetJoinRoomID() [1/2]

void DiarkisRoomBase::SetJoinRoomID ( const char * roomID )

Set the Room ID.

Parameters

[in] roomID Room ID to set

Here is the caller graph for this function:

◆ SetJoinRoomID() [2/2]

void DiarkisRoomBase::SetJoinRoomID ( const std::string & roomID )

Same as SetJoinRoomID()

Here is the call graph for this function:

◆ SendCreateRoom()

void DiarkisRoomBase::SendCreateRoom	(	uint16_t	maxMembers,
		bool	allowEmpty,
		bool	join,
		uint16_t	ttl,
		uint32_t	interval
	)

virtual

Create a new Room.

A callback event (e.g. OnRoomCreation) registered with GetCreateEvent() will be triggered.

Parameters

[in]	maxMembers	Maximum number of clients that can join the Room to be created.
[in]	allowEmpty	Determines if the Room will be held even if none of the clients have joined.
[in]	join	Determines if the Room will be joined after it is created. true = join the Room after creating it. No Join response is sent from the server. false = only creates the Room. If you want to join the Room, you must perform a separate Join.
[in]	ttl	Specifies the duration of the Room in seconds after it is empty. Used only when true is specified for allowEmpty.
[in]	interval	Specifies the interval in milliseconds at which the server processes Broadcast messages, etc. If the value of interval is large, the server load will be reduced, but there will be a delay in receiving messages. If the value of If the value of interval is small, the server load will increase, but the message will be sent immediately from the server. The default value is 200 ms.

Here is the call graph for this function:

◆ SendJoinRoom() [1/4]

void DiarkisRoomBase::SendJoinRoom ( const char * uid )

virtual

Join a Room.

Callback event registered with GetJoinEvent() (e.g. OnRoomJoin) will be triggered.
Callback event registered with GetMemberJoinEvent() (e.g. OnRoomMemberJoin) will be triggered on the member of the Room. The user ID specified by uid can be received from the callback event.

Parameters

[in] uid Your user ID

Here is the caller graph for this function:

◆ SendJoinRoom() [2/4]

void DiarkisRoomBase::SendJoinRoom ( const std::string & uid )

virtual

Same as SendJoinRoom(const char*)

Here is the call graph for this function:

◆ SendJoinRoom() [3/4]

void DiarkisRoomBase::SendJoinRoom	(	const char *	roomID,
		const char *	uid
	)

virtual

Joins the Room with the specified Room ID.

Callback event registered with GetJoinEvent() (e.g. OnRoomJoin) will be triggered.
Callback event registered with GetMemberJoinEvent() (e.g. OnRoomMemberJoin) will be triggered on the member of the Room.
The user ID specified by uid can be received from the callback event.

Parameters

[in]	roomID	ID of the Room to join
[in]	uid	Your user ID

Here is the call graph for this function:

◆ SendJoinRoom() [4/4]

void DiarkisRoomBase::SendJoinRoom	(	const std::string &	roomID,
		const std::string &	uid
	)

virtual

Same as SendJoinRoom(const char*, const char*)

Here is the call graph for this function:

◆ SendJoinRandomRoom() [1/2]

void DiarkisRoomBase::SendJoinRandomRoom	(	const char *	uid,
		uint32_t	maxMembers,
		uint16_t	ttl,
		uint32_t	interval,
		bool	allowEmpty
	)

virtual

Join the Room if available, otherwise create a new Room.

When a new Room is created, the callback event registered with GetCreateEvent() (e.g. OnRoomCreation) and
callback event registered with GetJoinEvent() (e.g. OnRoomJoin) will be triggered.
Only callback events registered with GetJoinEvent() will be triggered when joining an existing Room.

Parameters

[in]	uid	your user ID
[in]	maxMembers	Maximum number of clients that can join the Room to be created.
[in]	ttl	Duration in seconds after the Room is empty, used only when allowEmpty is set to true.
[in]	interval	Specifies the interval in milliseconds at which the server processes messages. Messages are sent together at the server for the interval time. If the value of interval is large, the server load will be reduced, but there will be a delay in receiving messages. If the value of interval is small, the server load will increase, but the message will be sent immediately from the server. The default value is 200 ms.
[in]	allowEmpty	Determines whether or not the client will keep the Room even when no one is joining.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendJoinRandomRoom() [2/2]

void DiarkisRoomBase::SendJoinRandomRoom	(	const std::string &	uid,
		uint32_t	maxMembers,
		uint16_t	ttl,
		uint32_t	interval,
		bool	allowEmpty
	)

virtual

Same as SendJoinRandomRoom()

Here is the call graph for this function:

◆ SendBroadcastToRoom() [1/2]

void DiarkisRoomBase::SendBroadcastToRoom	(	const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable
	)

virtual

Sends a message to all Room members including yourself.

Triggers a callback event (e.g. OnRoomMemberBroadcast) registered with GetMemberBroadcastEvent().

Parameters

[in]	payload	Message to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines if the message is sent via reliable communication (RUDP); ignored for TCP protocol.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBroadcastToRoom() [2/2]

void DiarkisRoomBase::SendBroadcastToRoom	(	const std::vector< uint8_t > &	payload,
		bool	reliable
	)

virtual

Same as SendBroadcastToRoom()

Here is the call graph for this function:

◆ SendMessageToRoom() [1/2]

void DiarkisRoomBase::SendMessageToRoom	(	const char **	memberIDs,
		size_t	memberIDsCount,
		const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable
	)

virtual

Sends a message to a specific member who has joined a Room.

A callback event (e.g. OnRoomMemberMessage) registered with GetMemberMessageEvent() will be triggered.

Parameters

[in]	memberIDs	List of user IDs of members to send
[in]	memberIDsCount	Number of memberID
[in]	payload	Message to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines if the message is sent via reliable communication (RUDP); ignored for TCP protocol.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendMessageToRoom() [2/2]

void DiarkisRoomBase::SendMessageToRoom	(	const std::vector< std::string > &	memberIDs,
		const std::vector< uint8_t > &	payload,
		bool	reliable
	)

virtual

Same as SendMessageToRoom()

Here is the call graph for this function:

◆ SendRelay() [1/2]

void DiarkisRoomBase::SendRelay	(	const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable
	)

virtual

Sends a message to Room members other than yourself.

Unlike Broadcast, messages are not compiled by the server.
A callback event registered with GetRelayEvent() (e.g. OnRelay) will be triggered.

Parameters

[in]	payload	Message to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines if the message is sent via reliable communication (RUDP); ignored for TCP protocol.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRelay() [2/2]

void DiarkisRoomBase::SendRelay	(	const std::vector< uint8_t > &	payload,
		bool	reliable
	)

virtual

Same as SendRelay()

Here is the call graph for this function:

◆ SendRelayTo() [1/2]

void DiarkisRoomBase::SendRelayTo	(	const char **	memberIDs,
		size_t	memberIDsCount,
		const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable
	)

virtual

Sends a message to a specific member participating in a Room.

Unlike MessageTo, messages are not compiled by the server.
A callback event (e.g. OnRelayTo) registered with GetRelayToEvent() will be triggered.

Parameters

[in]	memberIDs	List of user IDs of members to be sent.
[in]	memberIDsCount	Number of memberID
[in]	payload	Message to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines if the message is sent via reliable communication (RUDP); ignored for TCP protocol.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRelayTo() [2/2]

void DiarkisRoomBase::SendRelayTo	(	const std::vector< std::string > &	memberIDs,
		const std::vector< uint8_t > &	payload,
		bool	reliable
	)

virtual

Same as SendRelayTo()

Here is the call graph for this function:

◆ SendLeaveRoom() [1/2]

void DiarkisRoomBase::SendLeaveRoom ( const char * uid )

virtual

Leaving a Room.

Callback event (e.g. OnRoomLeave) registered with GetLeaveEvent() will be triggered.
If the exit is successful, a callback event (e.g. OnRoomMemberLeave) registered with GetMemberLeaveEvent()
will be triggered on each member of the Room.

Parameters

[in] uid own user ID

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendLeaveRoom() [2/2]

void DiarkisRoomBase::SendLeaveRoom ( const std::string & uid )

virtual

Same as SendLeaveRoom()

Here is the call graph for this function:

◆ SendFindByTypeRoom()

void DiarkisRoomBase::SendFindByTypeRoom	(	uint32_t	roomType,
		uint32_t	limit
	)

virtual

Searches for Rooms of the same type.

Callback events registered with GetFindByTypeEvnet() (e.g. OnRoomFindByType) will be triggered.
In the callback event, you can receive a list of Rooms as a result of the search.

Parameters

[in]	roomType	Type of Room to search
[in]	limit	Maximum number of Rooms in the list of search results

Here is the call graph for this function:

◆ SendRegisterRoom() [1/2]

void DiarkisRoomBase::SendRegisterRoom	(	uint32_t	roomType,
		const char *	roomName,
		const char *	roomMetadata
	)

virtual

Register additional information about the Room you are participating in.

Affects searching for a type by FindRoomsByType.

Parameters

[in]	roomType	Room type
[in]	roomName	Room name
[in]	roomMetadata	Extended string of Room

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRegisterRoom() [2/2]

void DiarkisRoomBase::SendRegisterRoom	(	uint32_t	roomType,
		const std::string &	roomName,
		const std::string &	roomMetadata
	)

virtual

Same as SendRegisterRoom()

Here is the call graph for this function:

◆ SendMigrateRoom()

void DiarkisRoomBase::SendMigrateRoom ( void )

virtual

Move the Room to a different server.

Only the Room owner can call this function.
Upon successful execution, a notification is sent from the server to each member of the Room
and the callback event registered with GetMigrateEvent() (e.g. OnRoomMigrate) is triggered.
The library internally leaves from the currently joined Room and joins a new Room to the server.

Here is the call graph for this function:

◆ SendGetOwnerID()

void DiarkisRoomBase::SendGetOwnerID ( void )

virtual

Get the Room owner's user ID.

The callback event (e.g. OnGetOwnerID) registered with GetOwnerIDEvent() will be triggered.

◆ SendGetMemberIDs()

void DiarkisRoomBase::SendGetMemberIDs ( void )

virtual

Get a list of user IDs of members participating in a Room.

Callback events (e.g. OnRoomMemberIDs) registered with GetMemberIDSEvent() will be triggered.

Here is the caller graph for this function:

◆ SendGetNumberOfMembers()

void DiarkisRoomBase::SendGetNumberOfMembers ( void )

virtual

Get the number of members in the Room.

The callback event (e.g. OnRoomNumberOfMembers) registered with GetNumberOfMembersEvent() will be triggered.

◆ SendUpdateProperties()

void DiarkisRoomBase::SendUpdateProperties	(	const std::unordered_map< std::string, std::vector< uint8_t >> &	properties,
		bool	sync = `false`
	)

virtual

Set Room properties.

The callback event registered with GetUpdatePropertiesEvent() (e.g. OnRoomUpdateProperties) will be triggered.

Parameters

[in]	properties	Specify properties and data to be registered.
[in]	sync	Determines if other clients will be notified.

Here is the call graph for this function:

◆ SendGetProperties() [1/2]

void DiarkisRoomBase::SendGetProperties	(	const char **	propertyNames,
		size_t	propertyNamesCount
	)

virtual

Get Room properties.

The callback event (e.g. OnRoomGetProperties) registered with GetGetPropertiesEvent() will be triggered.

Parameters

[in]	propertyNames	Specify the name of the property to be acquired.
[in]	propertyNamesCount	Number of property name

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendGetProperties() [2/2]

void DiarkisRoomBase::SendGetProperties ( const std::vector< std::string > & propertyNames )

virtual

Same as SendGetProperties()

Here is the call graph for this function:

◆ SendIncrementProperty()

void DiarkisRoomBase::SendIncrementProperty	(	Diarkis::StdString	propertyName,
		int64_t	delta,
		bool	sync
	)

virtual

Increases or decreases the value of the specified Room property.

Callback events registered with GetIncrementPropertyEvent() (e.g. OnRoomIncrementProperty) will be triggered.

Parameters

[in]	propertyName	Name of the property to be increased or decreased.
[in]	delta	Size of the value to be increased or decreased
[in]	sync	Determines if other clients will be notified. If true, callback events registered with GetIncrementPropertySyncEvent() will be triggered.

Here is the call graph for this function:

◆ SendReserveRoom() [1/2]

void DiarkisRoomBase::SendReserveRoom	(	const char **	userIDs,
		size_t	userIDsCount
	)

virtual

Reserves a member to join a Room.

A callback event (e.g. OnRoomReserve) registered with GetReserveEvent() will be triggered.

Parameters

[in]	userIDs	List of user IDs of members to reserve.
[in]	userIDsCount	Number of user ID

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendReserveRoom() [2/2]

void DiarkisRoomBase::SendReserveRoom ( const std::vector< std::string > & userIDs )

virtual

Same as SendReserveRoom()

Here is the call graph for this function:

◆ SendCancelReservationRoom() [1/2]

void DiarkisRoomBase::SendCancelReservationRoom	(	const char *	cancelRoomID,
		const char **	userIDs,
		size_t	userIDsCount
	)

virtual

Cancels a Room reservation.

The callback event (e.g. OnRoomReserve) registered with GetCancelReservationEvent() will be triggered.

Parameters

[in]	cancelRoomID	Room ID of the Room to be canceled
[in]	userIDs	List of user IDs of members to cancel
[in]	userIDsCount	Number of user ID

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCancelReservationRoom() [2/2]

void DiarkisRoomBase::SendCancelReservationRoom	(	const std::string &	cancelRoomID,
		const std::vector< std::string > &	userIDs
	)

virtual

Same as SendCancelReservationRoom()

Here is the call graph for this function:

◆ SendChatMessage() [1/2]

void DiarkisRoomBase::SendChatMessage ( const char * message )

virtual

Sends a chat message to the Room members.

Messages are stored on the server and past messages can be retrieved with GetChatLog().
The client executing this function will trigger a callback event (e.g. OnRoomResponseSync) registered with GetChatSyncResponseEvent().
members will trigger callback events (e.g. OnRoomChatSync) registered with GetChatSyncEvent().

Parameters

[in] message Message to be sent

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendChatMessage() [2/2]

void DiarkisRoomBase::SendChatMessage ( const std::string & message )

virtual

Same as SendChatMessage()

Here is the call graph for this function:

◆ SendGetChatLog()

void DiarkisRoomBase::SendGetChatLog ( void )

virtual

Retrieve past chat messages.

Callback events registered with GetChatLogEvent() (e.g. OnRoomChatLog) will be triggered.

Here is the call graph for this function:

◆ SendStartP2PSync()

void DiarkisRoomBase::SendStartP2PSync ( uint8_t linkedClients = 0 )

virtual

Starts P2P communication with the members participating in the Room.

Triggers a callback event (e.g. OnStartP2PSync) registered with GetStartP2PSyncEvent().
Receive a list of peer addresses in the callback event.
This function must be executed by only one of the Room members.

Parameters

[in] linkedClients Specifies the number of clients to establish a P2P connection.
0 = Receive addresses of all matched members.
n = Receive addresses of n randomly selected members from among the matched members.

◆ SendUpdateObject()

void DiarkisRoomBase::SendUpdateObject	(	RoomObjectMode	mode,
		const std::string &	name,
		const std::unordered_map< std::string, double > &	obj,
		bool	reliable = `true`
	)

virtual

Updates the Room object.

Successful execution triggers a callback event (e.g. OnRoomObjectUpdate) registered with GetObjectUpdateEvent().
Notification is sent to all members of the Room, including yourself.

Parameters

[in]	mode	Mode to operate the object.
[in]	name	Name of the object
[in]	obj	Specifies an object by a list of keys and values. e.g. obj["x"] = 123.4; e.g. obj["y"] = 567.8; e.g. obj["hp"] = 300.0; If mode is OBJ_DEL_MODE, this parameter is not used because the target object is deleted.
[in]	reliable	Determines whether to send via reliable communication (RUDP); ignored for TCP protocol.

Here is the call graph for this function:

◆ IsJoin()

bool DiarkisRoomBase::IsJoin ( )

Whether or not you are participating in the Room.

◆ IsFail()

bool DiarkisRoomBase::IsFail ( )

Whether or not you failed to join the Room.

◆ IsFind()

bool DiarkisRoomBase::IsFind ( )

Whether the Room was found by FindRoomsByType.

◆ IsNotFind()

bool DiarkisRoomBase::IsNotFind ( )

Whether the Room was not found by FindRoomsByType.

◆ IsMigrate()

bool DiarkisRoomBase::IsMigrate ( )

Whether the Room is under migration or not.

◆ IsLeave()

bool DiarkisRoomBase::IsLeave ( )

Whether or not you have left the Room.

◆ IsReserve()

bool DiarkisRoomBase::IsReserve ( )

Whether you reserved a Room or not.

◆ GetRoomID()

Diarkis::StdString DiarkisRoomBase::GetRoomID ( void )

Get the Room ID of the Room you are participating in.

◆ GetOwnerUID()

Diarkis::StdString DiarkisRoomBase::GetOwnerUID ( void )

Retrieves the user ID of the participating Room owner.

◆ GetOwnUID()

Diarkis::StdString DiarkisRoomBase::GetOwnUID ( void ) const

Obtain your own user ID.

◆ SetOwnUID() [1/2]

void DiarkisRoomBase::SetOwnUID ( const char * uid )

Set your own user ID.

Parameters

[in] uid User ID

Here is the caller graph for this function:

◆ SetOwnUID() [2/2]

void DiarkisRoomBase::SetOwnUID ( const std::string & uid )

Same as SetOwnUID()

Here is the call graph for this function:

◆ GetRoomMembers() [1/2]

void DiarkisRoomBase::GetRoomMembers ( Diarkis::StdVector< Diarkis::StdString > & memberList )

Get the user IDs of the members of the Room.

Parameters

[in] memberList Array to write the results to

◆ GetRoomMembers() [2/2]

const Diarkis::StdVector< Diarkis::StdString > & DiarkisRoomBase::GetRoomMembers ( ) const

Get the user IDs of the members of the Room.

◆ OnRoomCreation()

void DiarkisRoomBase::OnRoomCreation ( const DiarkisRoomCreationEventArgs & e )

protectedvirtual

Callback function called when a Room is created.

Called when a Room Create response is received from the server.

Here is the call graph for this function:

◆ OnRoomJoin()

void DiarkisRoomBase::OnRoomJoin ( const DiarkisRoomJoinEventArgs & e )

protectedvirtual

Callback function called when joined a Room.

Called when a Room Join response is received from the server.

Here is the call graph for this function:

◆ OnRoomLeave()

void DiarkisRoomBase::OnRoomLeave ( const DiarkisRoomSuccessEventArgs & e )

protectedvirtual

Callback function called when left from a Room.

Called when a Room Leave response is received from the server.

Here is the call graph for this function:

◆ OnRoomMigrateStart()

void DiarkisRoomBase::OnRoomMigrateStart ( void )

protectedvirtual

Callback function called when a Room migration starts.

Notified by the server to each member when the Room owner executes Migrate.

◆ OnRoomMigrateComplete()

void DiarkisRoomBase::OnRoomMigrateComplete ( const DiarkisRoomMigrateCompleteEventArgs & e )

protectedvirtual

Callback function called when a Room migration is completed.

Here is the call graph for this function:

◆ OnRoomMemberJoin()

void DiarkisRoomBase::OnRoomMemberJoin ( const DiarkisPayloadEventArgs & e )

protectedvirtual

Callback function called when another client joins the Room.

Here is the call graph for this function:

◆ OnRoomMemberLeave()

void DiarkisRoomBase::OnRoomMemberLeave ( const DiarkisPayloadEventArgs & e )

protectedvirtual

Callback function called when a Room member leaves the Room.

Here is the call graph for this function:

◆ OnRoomUpdateProperties()

void DiarkisRoomBase::OnRoomUpdateProperties ( const DiarkisRoomSuccessEventArgs & e )

protectedvirtual

Callback function called when properties are updated with UpdateProperties.

Here is the call graph for this function:

◆ OnRoomGetProperties()

void DiarkisRoomBase::OnRoomGetProperties ( const DiarkisRoomPropertiesEventArgs & e )

protectedvirtual

Callback function called when properties are retrieved with GetProperties.

Here is the call graph for this function:

◆ OnRoomUpdateSyncProperties()

void DiarkisRoomBase::OnRoomUpdateSyncProperties ( const DiarkisRoomPropertiesEventArgs & e )

protectedvirtual

Callback function called when properties are updated with UpdateProperties.

Here is the call graph for this function:

◆ OnRoomIncrementProperty()

void DiarkisRoomBase::OnRoomIncrementProperty ( const DiarkisRoomIncrementPropertyEventArgs & e )

protectedvirtual

Callback function called when the property is changed with IncrementProperty.

Here is the call graph for this function:

◆ OnRoomIncrementPropertySync()

void DiarkisRoomBase::OnRoomIncrementPropertySync ( const DiarkisRoomIncrementPropertySyncEventArgs & e )

protectedvirtual

Callback function called when the property is changed with IncrementProperty.

Here is the call graph for this function:

◆ OnRoomGetOwnerID()

void DiarkisRoomBase::OnRoomGetOwnerID ( const DiarkisRoomGetOwnerIDEventArgs & e )

protectedvirtual

Callback function called when the user ID of a participating Room owner is obtained.

Here is the call graph for this function:

◆ OnRoomMemberIDs()

void DiarkisRoomBase::OnRoomMemberIDs ( const DiarkisRoomMemberIDsEventArgs & e )

protectedvirtual

Callback function called to retrieve the user IDs of participating Room members.

Here is the call graph for this function:

◆ OnRoomNumberOfMembers()

void DiarkisRoomBase::OnRoomNumberOfMembers ( const DiarkisRoomNumberOfMembersEventArgs & e )

protectedvirtual

Callback function called to get the number of members in a Room.

Here is the call graph for this function:

◆ OnRoomOwnerChange()

void DiarkisRoomBase::OnRoomOwnerChange ( const DiarkisRoomGetOwnerIDEventArgs & e )

protectedvirtual

Callback function called when the Room owner is changed.

Here is the call graph for this function:

◆ OnRoomMemberBroadcast()

void DiarkisRoomBase::OnRoomMemberBroadcast ( const DiarkisPayloadEventArgs & e )

protectedvirtual

Callback function called when received a Broadcast message.

Here is the call graph for this function:

◆ OnRoomMemberMessage()

void DiarkisRoomBase::OnRoomMemberMessage ( const DiarkisPayloadEventArgs & e )

protectedvirtual

Callback function called when received a message by MessageTo.

Here is the call graph for this function:

◆ OnRoomRelay()

void DiarkisRoomBase::OnRoomRelay ( const DiarkisPayloadEventArgs & e )

protectedvirtual

Callback function called when received a message by Relay.

Here is the call graph for this function:

◆ OnRoomRelayTo()

void DiarkisRoomBase::OnRoomRelayTo ( const DiarkisPayloadEventArgs & e )

protectedvirtual

Callback function called when received a message by RelayTo.

Here is the call graph for this function:

◆ OnRoomRegister()

void DiarkisRoomBase::OnRoomRegister ( const DiarkisRoomPayloadEventArgs & e )

protectedvirtual

Callback function called when additional information is registered for a participating Room.

Here is the call graph for this function:

◆ OnRoomFindByType()

void DiarkisRoomBase::OnRoomFindByType ( const DiarkisRoomFindByTypeEventArgs & e )

protectedvirtual

Callback function called when a FindRoomsByType search result is received.

Here is the call graph for this function:

◆ OnRoomReserve()

void DiarkisRoomBase::OnRoomReserve ( const DiarkisRoomPayloadEventArgs & e )

protectedvirtual

Callback function called when a response to Reserve is received.

Here is the call graph for this function:

◆ OnRoomCancelReserve()

void DiarkisRoomBase::OnRoomCancelReserve ( const DiarkisRoomPayloadEventArgs & e )

protectedvirtual

Callback function called when a response to CancelReservation is received.

Here is the call graph for this function:

◆ OnChatSyncResponse()

void DiarkisRoomBase::OnChatSyncResponse ( const DiarkisRoomPayloadEventArgs & e )

protectedvirtual

Callback function called when a response to a chat transmission is received.

Here is the call graph for this function:

◆ OnChatSync()

void DiarkisRoomBase::OnChatSync ( const DiarkisRoomChatEventArgs & e )

protectedvirtual

Callback function called when chat is received.

Here is the call graph for this function:

◆ OnRoomChatLog()

void DiarkisRoomBase::OnRoomChatLog ( const DiarkisRoomChatLogEventArgs & e )

protectedvirtual

Callback function called when a response to GetChatLog is received.

Here is the call graph for this function:

◆ OnStartP2PSync()

void DiarkisRoomBase::OnStartP2PSync ( const DiarkisP2PEventArgs & e )

protectedvirtual

StartP2PSyncプッシュ通知を受信したときに呼び出されるコールバック関数

@ ~Japanese

Callback function called when StartP2PSync push notification is received

Here is the call graph for this function:

◆ OnRoomObjectUpdate()

void DiarkisRoomBase::OnRoomObjectUpdate ( const DiarkisRoomObjectUpdateEventArgs & e )

protectedvirtual

Callback event called when a UpdateObject push is received.

Here is the call graph for this function:

◆ OnRoomObjectUpdateResponse()

void DiarkisRoomBase::OnRoomObjectUpdateResponse ( const DiarkisRoomObjectUpdateResponseEventArgs & e )

protectedvirtual

Callback event called when a response is received to an update of a Room object.

Here is the call graph for this function:

◆ OnOffline()

void DiarkisRoomBase::OnOffline ( )

protectedvirtual

Callback event called when the server is ready to shutdown.

Member Data Documentation

◆ tcp_

std::shared_ptr<IDiarkisTcp> DiarkisRoomBase::tcp_

protected

Pointer to IDiarkisTcp class.

◆ udp_

std::shared_ptr<IDiarkisUdp> DiarkisRoomBase::udp_

protected

Pointer to IDiarkisUdp class.

◆ room_

std::shared_ptr<IDiarkisRoom> DiarkisRoomBase::room_

protected

Pointer to IDiarkisRoom class.

◆ p2pBase_

std::shared_ptr<DiarkisP2PBase> DiarkisRoomBase::p2pBase_

protected

Pointer to DiarkisP2PBase class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisRoomBase::logger_

protected

Pointer to IDiarkisLogger class.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisRoomBase::eventUnsubscriptions_

protected

Lambda functions list.

◆ roomID_

Diarkis::StdString DiarkisRoomBase::roomID_

protected

Room ID of the participating Room.

◆ roomConnect_

ConnectState DiarkisRoomBase::roomConnect_

protected

Room state.

◆ list_mutex_

std::recursive_mutex DiarkisRoomBase::list_mutex_

protected

roomMemberIDs Mutex

◆ roomMemberIDs_

Diarkis::StdVector<Diarkis::StdString> DiarkisRoomBase::roomMemberIDs_

protected

List of Room members' user IDs.

◆ ownUID_

Diarkis::StdString DiarkisRoomBase::ownUID_

protected

自分のユーザーID

~@japanese

My user ID

◆ ownerID_

Diarkis::StdString DiarkisRoomBase::ownerID_

protected

User ID of the Room owner.

◆ createAtServer_

int64_t DiarkisRoomBase::createAtServer_

protected

The time the Room you are currently in was created on the server.

◆ bReserved_

bool DiarkisRoomBase::bReserved_

protected

Whether you reserved a Room or not.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisRoomBase.h
client/cpp/diarkis-module/Client/Private/DiarkisRoomBase.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DiarkisRoomBase()

◆ ~DiarkisRoomBase()

Member Function Documentation

◆ SetupTcpRoom()

◆ SetupUdpRoom()

◆ GetRoom()

◆ SetJoinRoomID() [1/2]

◆ SetJoinRoomID() [2/2]

◆ SendCreateRoom()

◆ SendJoinRoom() [1/4]

◆ SendJoinRoom() [2/4]

◆ SendJoinRoom() [3/4]

◆ SendJoinRoom() [4/4]

◆ SendJoinRandomRoom() [1/2]

◆ SendJoinRandomRoom() [2/2]

◆ SendBroadcastToRoom() [1/2]

◆ SendBroadcastToRoom() [2/2]

◆ SendMessageToRoom() [1/2]

◆ SendMessageToRoom() [2/2]

◆ SendRelay() [1/2]

◆ SendRelay() [2/2]

◆ SendRelayTo() [1/2]

◆ SendRelayTo() [2/2]

◆ SendLeaveRoom() [1/2]

◆ SendLeaveRoom() [2/2]

◆ SendFindByTypeRoom()

◆ SendRegisterRoom() [1/2]

◆ SendRegisterRoom() [2/2]

◆ SendMigrateRoom()

◆ SendGetOwnerID()

◆ SendGetMemberIDs()

◆ SendGetNumberOfMembers()

◆ SendUpdateProperties()

◆ SendGetProperties() [1/2]

◆ SendGetProperties() [2/2]

◆ SendIncrementProperty()

◆ SendReserveRoom() [1/2]

◆ SendReserveRoom() [2/2]

◆ SendCancelReservationRoom() [1/2]

◆ SendCancelReservationRoom() [2/2]

◆ SendChatMessage() [1/2]

◆ SendChatMessage() [2/2]

◆ SendGetChatLog()

◆ SendStartP2PSync()

◆ SendUpdateObject()

◆ IsJoin()

◆ IsFail()

◆ IsFind()

◆ IsNotFind()

◆ IsMigrate()

◆ IsLeave()

◆ IsReserve()

◆ GetRoomID()

◆ GetOwnerUID()

◆ GetOwnUID()

◆ SetOwnUID() [1/2]

◆ SetOwnUID() [2/2]

◆ GetRoomMembers() [1/2]

◆ GetRoomMembers() [2/2]

◆ OnRoomCreation()

◆ OnRoomJoin()

◆ OnRoomLeave()

◆ OnRoomMigrateStart()

◆ OnRoomMigrateComplete()

◆ OnRoomMemberJoin()

◆ OnRoomMemberLeave()

◆ OnRoomUpdateProperties()

◆ OnRoomGetProperties()

◆ OnRoomUpdateSyncProperties()

◆ OnRoomIncrementProperty()

◆ OnRoomIncrementPropertySync()

◆ OnRoomGetOwnerID()

◆ OnRoomMemberIDs()

◆ OnRoomNumberOfMembers()

◆ OnRoomOwnerChange()
