Base class that wraps the IDiarkisP2P class for easy use of P2P functionality. More...

#include <DiarkisP2PBase.h>

Collaboration diagram for DiarkisP2PBase:

Public Member Functions
	DiarkisP2PBase ()
	DiarkisP2PBase constructor. More...

virtual	~DiarkisP2PBase ()
	DiarkisP2PBase destructor. More...

virtual void	SetupP2P (const std::shared_ptr< IDiarkisUdp > &udp, const std::shared_ptr< LoggerFactory > &loggerFactory, const char *uid)
	Set up DirectMessage with UDP protocol. More...

virtual void	ConnectClient (const char uid, const char *address, size_t addressCount, size_t timeoutInMilliseconds=5000, bool bBuffering=true)
	Attempts to make a P2P connection to the specified user ID. More...

virtual void	ConnectClient (const std::string &uid, const std::vector< std::string > &address, size_t timeoutInMilliseconds=5000, bool bBuffering=true)
	Same as ConnectClient() More...

virtual void	SetEncryptionKeys (bool bEncryption, const uint8_t key, size_t keySize, const uint8_t iv, size_t ivSize, const uint8_t *mkey, size_t mkeySize)
	Set the encryption key. More...

virtual void	SetEncryptionKeys (bool bEncryption, const std::vector< uint8_t > &key, const std::vector< uint8_t > &iv, const std::vector< uint8_t > &mkey)
	Same as SetEncryptionKeys() More...

virtual uint16_t	SendUnicast (const uint8_t payload, size_t payloadSize, RudpType type, const char uid)
	Sends a message to one peer. More...

virtual uint16_t	SendUnicast (const uint8_t *payload, size_t payloadSize, RudpType type, const std::string &uid)
	Same as SendUnicast() More...

virtual uint16_t	SendUnicast (const std::vector< uint8_t > &payload, RudpType type, const std::string &uid)
	Same as SendUnicast() More...

virtual uint16_t	SendMulticast (const uint8_t payload, size_t payloadSize, RudpType type, const char *uids, size_t uidsLen)
	Sends a message to multiple peers. More...

virtual uint16_t	SendMulticast (const uint8_t *payload, size_t payloadSize, RudpType type, const std::vector< std::string > &uid)
	Same as SendMulticast() More...

virtual uint16_t	SendMulticast (const std::vector< uint8_t > &payload, RudpType type, const std::vector< std::string > &uid)
	Same as SendMulticast() More...

virtual uint16_t	SendBroadcast (const uint8_t *payload, size_t payloadSize, RudpType type)
	Sends a message to all peers. More...

virtual uint16_t	SendBroadcast (const std::vector< uint8_t > &payload, RudpType type)
	Same as SendBroadcast() More...

void	Disconnect ()
	Disconnects the P2P connection to all peers. More...

bool	Disconnect (const char *uid)
	Disconnect P2P connection with the specified user. More...

void	Update ()
	Function to update the status of the connection and other information. Must be called periodically. More...

void	SetSchedulerAddNotifyEvent (std::function< void()> notifyEventFunc)
	Sets the process to be called when a P2P-related event is added to the scheduler. More...

uint16_t	GetConnectedNum ()
	Get the number of peers connected by P2P. More...

void	GetPeerUids (Diarkis::StdVector< Diarkis::StdString > &output)
	Get the user id of peers connected by P2P. More...

Protected Member Functions
virtual void	OnP2PReady (const DiarkisReadyEventArgs &args)
	Callback event called when a P2P connection succeeds. More...

virtual void	OnP2PFail (const DiarkisFailEventArgs &args)
	Callback event called when a hole punch fails. More...

virtual void	OnP2PDisconnect (const DiarkisP2PDisconnectEventArgs &args)
	Callback event called when a P2P connection is disconnected. More...

virtual void	OnP2PMessage (const DiarkisMessageEventArgs &args)
	Callback event called when a message is received by P2P. More...

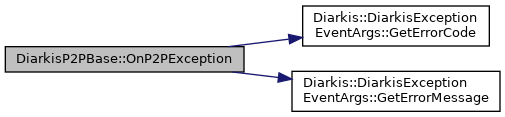

virtual void	OnP2PException (const DiarkisExceptionEventArgs &args)
	Callback event called when sending or receiving fails in P2P. More...

void	RegisterPeer (const Diarkis::StdString &uid, const std::shared_ptr< Peer > &p2p)
	Register an IDiarkisP2P instance. More...

uint64_t	UnregisterPeer (const Diarkis::StdString &uid)
	Unregister an IDiarkisP2P instance. More...

Protected Attributes
Diarkis::StdUnorderedMap< Diarkis::StdString, std::shared_ptr< Peer > >	p2pList_
	List of P2P connections. key:UID, value:pointer to IDiarkisP2P. More...

std::recursive_mutex	p2pListMutex_
	P2P list Mutex. More...

std::shared_ptr< IDiarkisUdp >	udp_
	Pointer to the IDiarkisUdp class. More...

std::shared_ptr< LoggerFactory >	loggerFactory_
	Pointer to logger class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to logger class. More...

std::function< void()>	schedulerAddNotifyEventFunc_
	Callback function called when P2P-related events are added. More...

Diarkis::StdString	ownGlobalAddress_
	My Global IP address. More...

Diarkis::StdString	myUid_
	My user ID. More...

Detailed Description

Base class that wraps the IDiarkisP2P class for easy use of P2P functionality.

Constructor & Destructor Documentation

◆ DiarkisP2PBase()

DiarkisP2PBase::DiarkisP2PBase ( )

DiarkisP2PBase constructor.

◆ ~DiarkisP2PBase()

DiarkisP2PBase::~DiarkisP2PBase ( )

virtual

DiarkisP2PBase destructor.

Here is the call graph for this function:

Member Function Documentation

◆ SetupP2P()

void DiarkisP2PBase::SetupP2P	(	const std::shared_ptr< IDiarkisUdp > &	udp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory,
		const char *	uid
	)

virtual

Set up DirectMessage with UDP protocol.

Register loggers and callback functions.

Parameters

[in]	udp	Pointer to IDiarkisUdp class
[in]	loggerFactory	Pointer to logger class
[in]	uid	Your user ID

◆ ConnectClient() [1/2]

void DiarkisP2PBase::ConnectClient	(	const char *	uid,
		const char **	address,
		size_t	addressCount,
		size_t	timeoutInMilliseconds = `5000`,
		bool	bBuffering = `true`
	)

virtual

Attempts to make a P2P connection to the specified user ID.

If the connection successes, a callback event registered with GetReadyEvent() (e.g. OnP2PReady) will be triggered.
If the connection fails, a callback event registered with GetFailEvent() (e.g. OnP2PFail) will be triggered.

Parameters

[in]	uid	Your user ID
[in]	address	List of endpoints to connect to
[in]	addressCount	Length of the address
[in]	timeoutInMilliseconds	Timeout time for hole punch
[in]	bBuffering	Whether buffering is performed when sending or receiving packets

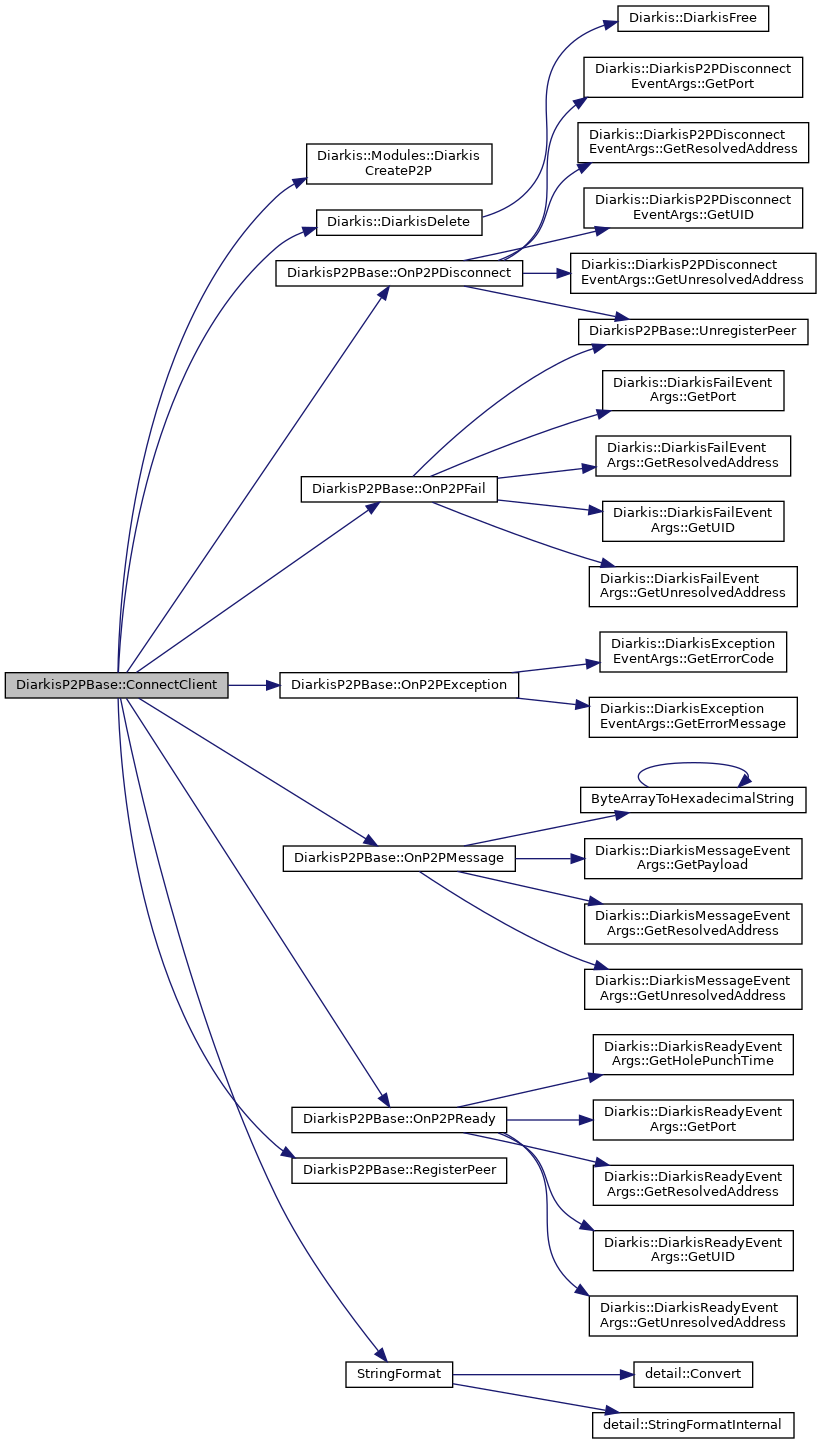

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectClient() [2/2]

void DiarkisP2PBase::ConnectClient	(	const std::string &	uid,
		const std::vector< std::string > &	address,
		size_t	timeoutInMilliseconds = `5000`,
		bool	bBuffering = `true`
	)

virtual

Same as ConnectClient()

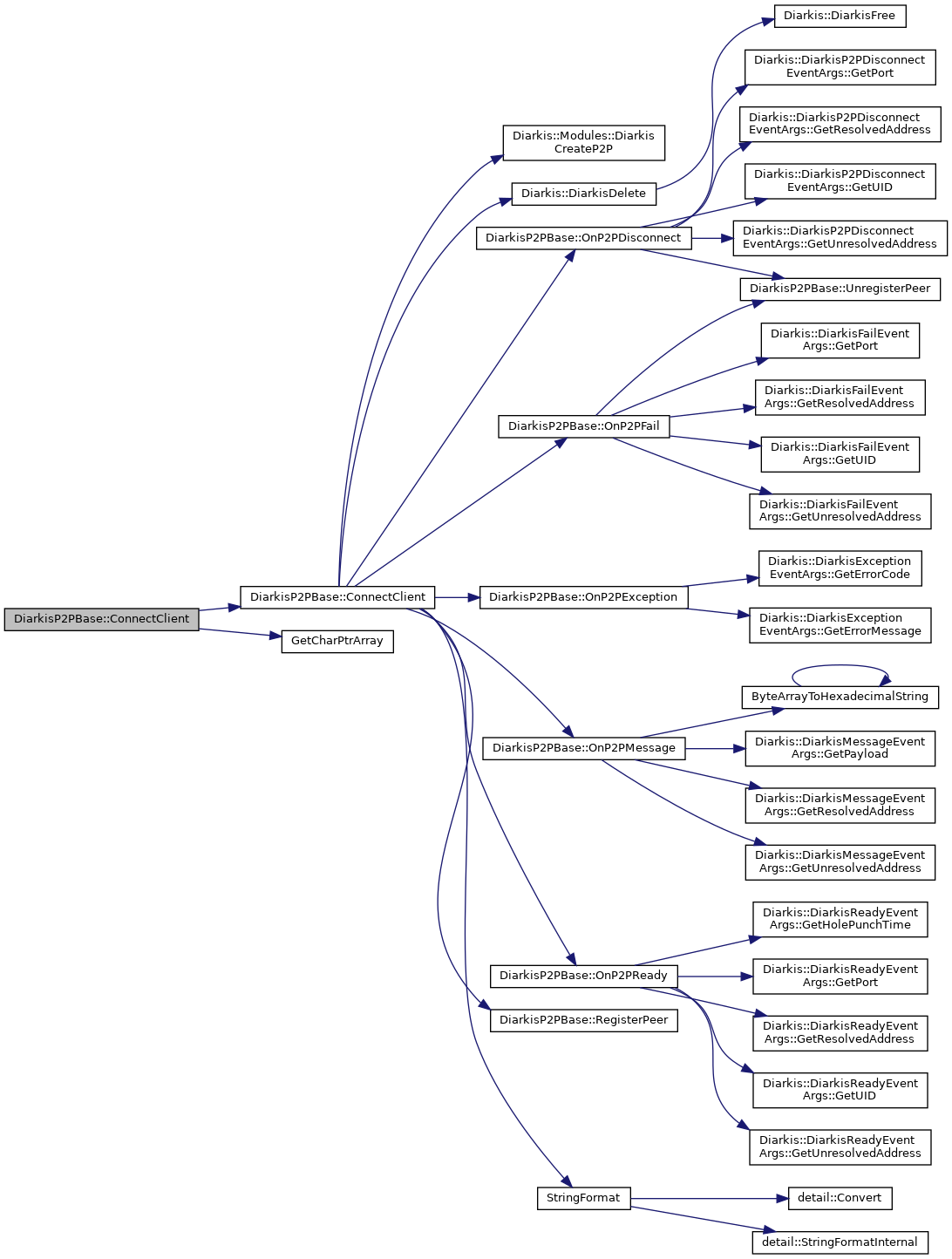

Here is the call graph for this function:

◆ SetEncryptionKeys() [1/2]

void DiarkisP2PBase::SetEncryptionKeys	(	bool	bEncryption,
		const uint8_t *	key,
		size_t	keySize,
		const uint8_t *	iv,
		size_t	ivSize,
		const uint8_t *	mkey,
		size_t	mkeySize
	)

virtual

Set the encryption key.

Parameters

[in]	bEncryption	Whether to encrypt or not
[in]	key	Encryption key
[in]	keySize	Length of the key
[in]	iv	Initialization vector
[in]	ivSize	Length of the iv
[in]	mkey	Message authentication code
[in]	mkeySize	Length of the mkey

Here is the caller graph for this function:

◆ SetEncryptionKeys() [2/2]

void DiarkisP2PBase::SetEncryptionKeys	(	bool	bEncryption,
		const std::vector< uint8_t > &	key,
		const std::vector< uint8_t > &	iv,
		const std::vector< uint8_t > &	mkey
	)

virtual

Same as SetEncryptionKeys()

Here is the call graph for this function:

◆ SendUnicast() [1/3]

uint16_t DiarkisP2PBase::SendUnicast	(	const uint8_t *	payload,
		size_t	payloadSize,
		RudpType	type,
		const char *	uid
	)

virtual

Sends a message to one peer.

When a message is received A callback event (e.g. OnP2PMessage) registered with GetMessageEvent() is triggered.

Parameters

[in]	payload	Data to be sent
[in]	payloadSize	Length of the payload
[in]	type	RUDP type to be used
[in]	uid	User ID of the peer to which the data is sent

Returns: Number of peers sent

Here is the caller graph for this function:

◆ SendUnicast() [2/3]

uint16_t DiarkisP2PBase::SendUnicast	(	const uint8_t *	payload,
		size_t	payloadSize,
		RudpType	type,
		const std::string &	uid
	)

virtual

Same as SendUnicast()

Here is the call graph for this function:

◆ SendUnicast() [3/3]

uint16_t DiarkisP2PBase::SendUnicast	(	const std::vector< uint8_t > &	payload,
		RudpType	type,
		const std::string &	uid
	)

virtual

Same as SendUnicast()

Here is the call graph for this function:

◆ SendMulticast() [1/3]

uint16_t DiarkisP2PBase::SendMulticast	(	const uint8_t *	payload,
		size_t	payloadSize,
		RudpType	type,
		const char **	uids,
		size_t	uidsLen
	)

virtual

Sends a message to multiple peers.

When a message is received A callback event (e.g. OnP2PMessage) registered with GetMessageEvent() is triggered.

Parameters

[in]	payload	Data to be sent
[in]	payloadSize	Length of the payload
[in]	type	RUDP type to be used
[in]	uids	List of user ID of the peer to which the data is sent
[in]	uidsLen	Length of the uids

Returns: Number of peers sent

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendMulticast() [2/3]

uint16_t DiarkisP2PBase::SendMulticast	(	const uint8_t *	payload,
		size_t	payloadSize,
		RudpType	type,
		const std::vector< std::string > &	uid
	)

virtual

Same as SendMulticast()

Here is the call graph for this function:

◆ SendMulticast() [3/3]

uint16_t DiarkisP2PBase::SendMulticast	(	const std::vector< uint8_t > &	payload,
		RudpType	type,
		const std::vector< std::string > &	uid
	)

virtual

Same as SendMulticast()

Here is the call graph for this function:

◆ SendBroadcast() [1/2]

uint16_t DiarkisP2PBase::SendBroadcast	(	const uint8_t *	payload,
		size_t	payloadSize,
		RudpType	type
	)

virtual

Sends a message to all peers.

When a message is received A callback event (e.g. OnP2PMessage) registered with GetMessageEvent() is triggered.

Parameters

[in]	payload	Data to be sent
[in]	payloadSize	Length of the payload
[in]	type	RUDP type to be used

Returns: Number of peers sent

Here is the caller graph for this function:

◆ SendBroadcast() [2/2]

uint16_t DiarkisP2PBase::SendBroadcast	(	const std::vector< uint8_t > &	payload,
		RudpType	type
	)

virtual

Same as SendBroadcast()

Here is the call graph for this function:

◆ Disconnect() [1/2]

void DiarkisP2PBase::Disconnect ( )

Disconnects the P2P connection to all peers.

Callback events registered with GetDisconnectEvent() (e.g. OnP2PDisconnect) will be triggered for disconnected peers.

Here is the caller graph for this function:

◆ Disconnect() [2/2]

bool DiarkisP2PBase::Disconnect ( const char * uid )

Disconnect P2P connection with the specified user.

Callback events registered with GetDisconnectEvent() (e.g. OnP2PDisconnect) will be triggered.

Parameters

[in] uid User ID of the user to disconnect.

Returns: Whether the disconnection process was executed or not.

Here is the call graph for this function:

◆ Update()

void DiarkisP2PBase::Update ( )

Function to update the status of the connection and other information. Must be called periodically.

◆ SetSchedulerAddNotifyEvent()

void DiarkisP2PBase::SetSchedulerAddNotifyEvent ( std::function< void()> notifyEventFunc )

Sets the process to be called when a P2P-related event is added to the scheduler.

◆ GetConnectedNum()

uint16_t DiarkisP2PBase::GetConnectedNum ( )

Get the number of peers connected by P2P.

◆ GetPeerUids()

void DiarkisP2PBase::GetPeerUids ( Diarkis::StdVector< Diarkis::StdString > & output )

Get the user id of peers connected by P2P.

◆ OnP2PReady()

void DiarkisP2PBase::OnP2PReady ( const DiarkisReadyEventArgs & args )

protectedvirtual

Callback event called when a P2P connection succeeds.

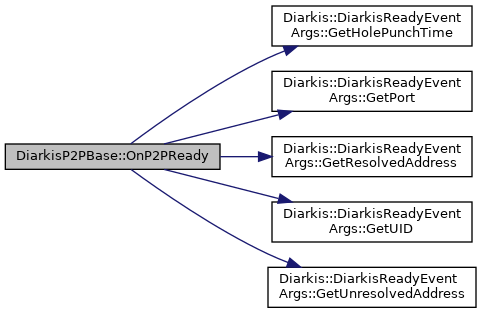

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OnP2PFail()

void DiarkisP2PBase::OnP2PFail ( const DiarkisFailEventArgs & args )

protectedvirtual

Callback event called when a hole punch fails.

Triggered when a hole punch is not completed within the specified time.

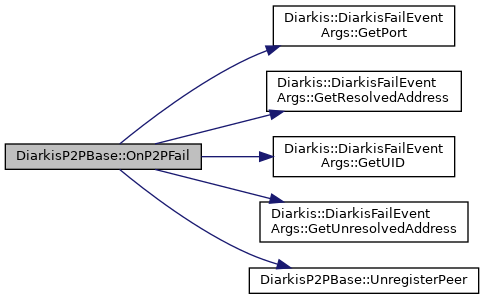

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OnP2PDisconnect()

void DiarkisP2PBase::OnP2PDisconnect ( const DiarkisP2PDisconnectEventArgs & args )

protectedvirtual

Callback event called when a P2P connection is disconnected.

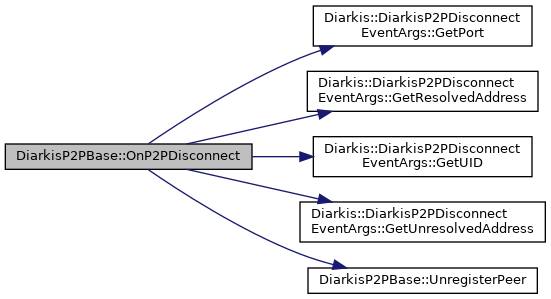

Here is the call graph for this function:

Here is the caller graph for this function:

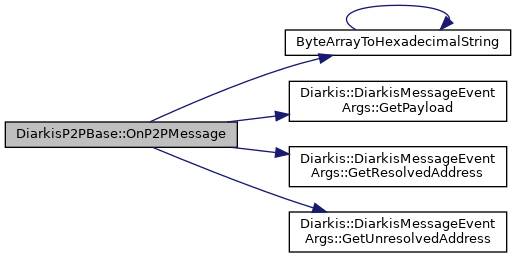

◆ OnP2PMessage()

void DiarkisP2PBase::OnP2PMessage ( const DiarkisMessageEventArgs & args )

protectedvirtual

Callback event called when a message is received by P2P.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OnP2PException()

void DiarkisP2PBase::OnP2PException ( const DiarkisExceptionEventArgs & args )

protectedvirtual

Callback event called when sending or receiving fails in P2P.

It is triggered when the socket is closed and no transmission or reception is possible.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RegisterPeer()

void DiarkisP2PBase::RegisterPeer	(	const Diarkis::StdString &	uid,
		const std::shared_ptr< Peer > &	p2p
	)

protected

Register an IDiarkisP2P instance.

Parameters

[in]	uid	UID of the peer
[in]	p2p	Pointer to IDiarkisP2P instance

Here is the caller graph for this function:

◆ UnregisterPeer()

uint64_t DiarkisP2PBase::UnregisterPeer ( const Diarkis::StdString & uid )

protected

Unregister an IDiarkisP2P instance.

Parameters

[in] uid UID of the peer

Returns: Number of deleted instances

Here is the caller graph for this function:

Member Data Documentation

◆ p2pList_

Diarkis::StdUnorderedMap<Diarkis::StdString, std::shared_ptr<Peer> > DiarkisP2PBase::p2pList_

protected

List of P2P connections. key:UID, value:pointer to IDiarkisP2P.

◆ p2pListMutex_

std::recursive_mutex DiarkisP2PBase::p2pListMutex_

protected

P2P list Mutex.

◆ udp_

std::shared_ptr<IDiarkisUdp> DiarkisP2PBase::udp_

protected

Pointer to the IDiarkisUdp class.

◆ loggerFactory_

std::shared_ptr<LoggerFactory> DiarkisP2PBase::loggerFactory_

protected

Pointer to logger class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisP2PBase::logger_

protected

Pointer to logger class.

◆ schedulerAddNotifyEventFunc_

std::function<void()> DiarkisP2PBase::schedulerAddNotifyEventFunc_

protected

Callback function called when P2P-related events are added.

◆ ownGlobalAddress_

Diarkis::StdString DiarkisP2PBase::ownGlobalAddress_

protected

My Global IP address.

◆ myUid_

Diarkis::StdString DiarkisP2PBase::myUid_

protected

My user ID.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisP2PBase.h
client/cpp/diarkis-module/Client/Private/DiarkisP2PBase.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DiarkisP2PBase()

◆ ~DiarkisP2PBase()

Member Function Documentation

◆ SetupP2P()

◆ ConnectClient() [1/2]

◆ ConnectClient() [2/2]

◆ SetEncryptionKeys() [1/2]

◆ SetEncryptionKeys() [2/2]

◆ SendUnicast() [1/3]

◆ SendUnicast() [2/3]

◆ SendUnicast() [3/3]

◆ SendMulticast() [1/3]

◆ SendMulticast() [2/3]

◆ SendMulticast() [3/3]

◆ SendBroadcast() [1/2]

◆ SendBroadcast() [2/2]

◆ Disconnect() [1/2]

◆ Disconnect() [2/2]

◆ Update()

◆ SetSchedulerAddNotifyEvent()

◆ GetConnectedNum()

◆ GetPeerUids()

◆ OnP2PReady()

◆ OnP2PFail()

◆ OnP2PDisconnect()

◆ OnP2PMessage()

◆ OnP2PException()

◆ RegisterPeer()

◆ UnregisterPeer()

Member Data Documentation

◆ p2pList_

◆ p2pListMutex_

◆ udp_

◆ loggerFactory_

◆ logger_

◆ schedulerAddNotifyEventFunc_

◆ ownGlobalAddress_

◆ myUid_
