Base class that wraps the IDiarkisSession class for easy use of Session functionality. More...

#include <DiarkisSessionBase.h>

Collaboration diagram for DiarkisSessionBase:

Public Member Functions
	DiarkisSessionBase ()
	DiarkisSessionBase constructor. More...

virtual	~DiarkisSessionBase ()
	DiarkisSessionBase destructor. More...

virtual void	SetupUdpSession (const std::shared_ptr< IDiarkisUdp > &udp, const std::shared_ptr< LoggerFactory > &loggerFactory, bool bRetry)
	Set up Session with UDP protocol. More...

virtual void	SetupTcpSession (const std::shared_ptr< IDiarkisTcp > &tcp, const std::shared_ptr< LoggerFactory > &loggerFactory, bool bRetry)
	Set up Session with TCP protocol. More...

bool	HasSession (uint8_t sessionType) const
	Check if you are joining at least one Session. More...

virtual void	SendCreate (uint8_t sessionType, uint8_t maxMembers, uint8_t ttl)
	Create a new Session. More...

virtual void	SendInvite (uint8_t sessionType, const char **uids, size_t uidsCount)
	Invite a user to the Session your are currently in. More...

virtual void	SendInvite (uint8_t sessionType, const std::vector< std::string > &uids)
	Same as SendInvite(uint8_t, const char**, size_t) More...

virtual void	SendInvite (uint8_t sessionType, const char *uids, size_t uidsCount, const uint8_t message, size_t messageSize)
	Invite a user to the Session you are currently in. More...

virtual void	SendInvite (uint8_t sessionType, const std::vector< std::string > &uids, const std::string &message)
	Same as SendInvite(uint8_t, const char*, size_t, const uint8_t, size_t) More...

virtual void	SendInvite (uint8_t sessionType, const char *uids, size_t uidsCount, const char message)
	Same as SendInvite(uint8_t, const char*, size_t, const uint8_t, size_t) More...

virtual void	SendBroadcast (uint8_t sessionType, const uint8_t *message, size_t messageSize)
	Broadcast a message. More...

virtual void	SendBroadcast (uint8_t sessionType, const std::string &message)
	Same as SendBroadcast() More...

virtual void	SendBroadcast (uint8_t sessionType, const char *message)
	Same as SendBroadcast() More...

virtual void	SendMessageTo (uint8_t sessionType, const char *uids, size_t uidsCount, const uint8_t message, size_t messageSize)
	Send a message to particular membbers. More...

virtual void	SendMessageTo (uint8_t sessionType, const char *uids, size_t uidsCount, const char message)
	Same as SendMessageTo() More...

virtual void	SendMessageTo (uint8_t sessionType, const std::vector< std::string > &memberIDs, const std::string &message)
	Same as SendMessageTo() More...

virtual void	SendGetSessionInfoBySessionType (uint8_t sessionType)
	Obtain information about the specified Session. More...

virtual void	SendGetSessionInfoBySessionID (const char *sessionID)
	Obtain information about the specified Session. More...

virtual void	SendGetSessionInfoBySessionID (const std::string &sessionID)
	Same as SendGetSessionInfoBySessionID() More...

Diarkis::StdString	GetSessionID (uint8_t sessionType) const
	Get the Session ID. More...

virtual void	SendKick (uint8_t sessionType, const char *userID)
	Kick a Session member. More...

virtual void	SendKick (uint8_t sessionType, const std::string &userID)
	Same as SendKick() More...

virtual void	SendJoin (uint8_t sessionType, const char *sessionID)
	Join a Session. More...

virtual void	SendJoin (uint8_t sessionType, const std::string &sessionID)
	Same as SendJoin() More...

virtual void	SendLeave (uint8_t sessionType)
	Leave a Session. More...

void	SetUserID (const char *userID)
	Set user ID. More...

void	SetUserID (const std::string &userID)
	Same as SendUserID() More...

Diarkis::StdString	GetUserID () const
	Get user ID. More...

Protected Member Functions

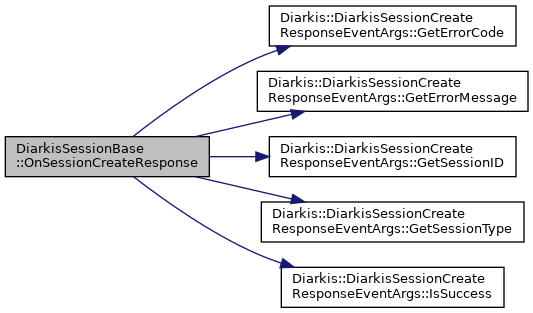

virtual void	OnSessionCreateResponse (const DiarkisSessionCreateResponseEventArgs &e)
	Callback event called when the Session is created, event content is the Session ID. More...

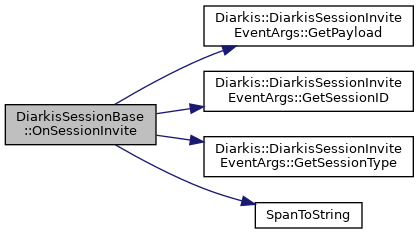

virtual void	OnSessionInvite (const DiarkisSessionInviteEventArgs &e)
	Callback event called when a user is invited to the Session, event content is the Session ID. More...

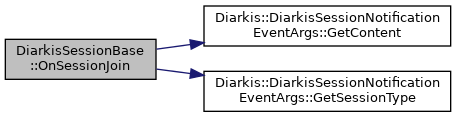

virtual void	OnSessionJoin (const DiarkisSessionNotificationEventArgs &e)
	Callback event when an a member join the Session, event content is the user ID. More...

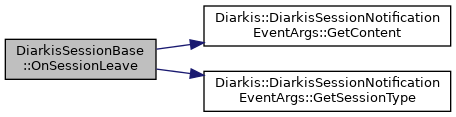

virtual void	OnSessionLeave (const DiarkisSessionNotificationEventArgs &e)
	Callback event when an a member leave the Session, event content is the user ID. More...

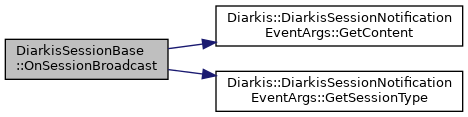

virtual void	OnSessionBroadcast (const DiarkisSessionNotificationEventArgs &e)
	Callback event when an a broadcast is received. More...

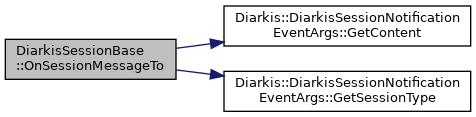

virtual void	OnSessionMessageTo (const DiarkisSessionNotificationEventArgs &e)
	Callback event when an a message is received. More...

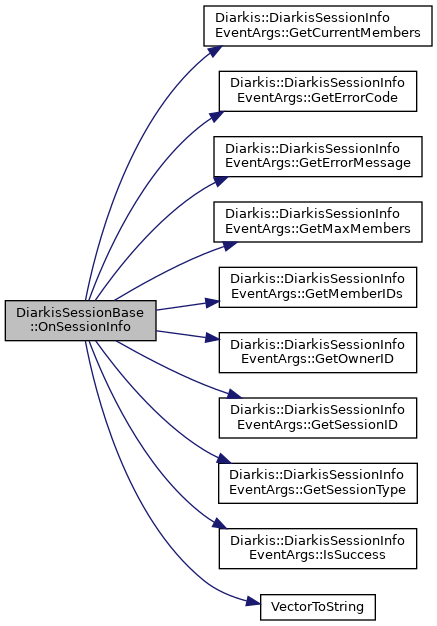

virtual void	OnSessionInfo (const DiarkisSessionInfoEventArgs &e)
	Callback event called when acquiring information of a participating Session. More...

virtual void	OnSessionKick (const DiarkisSessionNotificationEventArgs &e)
	Callback event when kicked out of the Session. More...

virtual void	OnSessionInviteResponse (const DiarkisSessionResponseEventArgs &e)
	Callback event when a response is received from the server when SendInvite is sent. More...

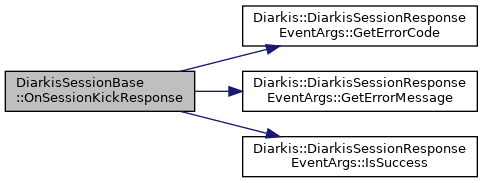

virtual void	OnSessionKickResponse (const DiarkisSessionResponseEventArgs &e)
	Callback event when a response is received from the server when SendKick is sent. More...

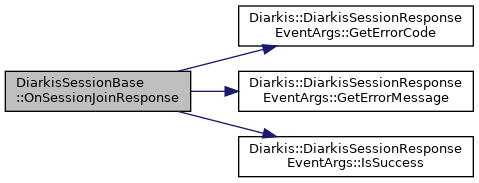

virtual void	OnSessionJoinResponse (const DiarkisSessionResponseEventArgs &e)
	Callback event when a response is received from the server when SendJoin is sent. More...

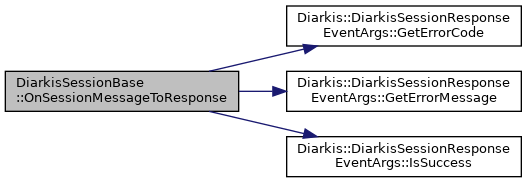

virtual void	OnSessionMessageToResponse (const DiarkisSessionResponseEventArgs &e)
	Callback event when a response is received from the server when SendMessageTo is sent. More...

virtual void	OnSessionBroadcastResponse (const DiarkisSessionResponseEventArgs &e)
	Callback event when a response is received from the server when SendBroadcast is sent. More...

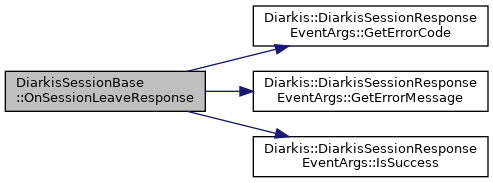

virtual void	OnSessionLeaveResponse (const DiarkisSessionResponseEventArgs &e)
	Callback event when a response is received from the server when SendLeave is sent. More...

Protected Attributes
std::shared_ptr< IDiarkisUdp >	udp_
	IDiarkisUdpクラスへのポインタ More...

std::shared_ptr< IDiarkisTcp >	tcp_
	Pointer to IDiarkisTcp class. More...

std::shared_ptr< IDiarkisSession >	session_
	Pointer to IDiarkisSession class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to IDiarkisLogger class. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	List of lambda functions. More...

Detailed Description

Base class that wraps the IDiarkisSession class for easy use of Session functionality.

Constructor & Destructor Documentation

◆ DiarkisSessionBase()

DiarkisSessionBase::DiarkisSessionBase ( )

DiarkisSessionBase constructor.

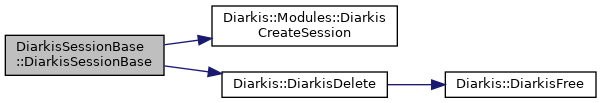

Here is the call graph for this function:

◆ ~DiarkisSessionBase()

DiarkisSessionBase::~DiarkisSessionBase ( )

virtual

DiarkisSessionBase destructor.

Member Function Documentation

◆ SetupUdpSession()

void DiarkisSessionBase::SetupUdpSession	(	const std::shared_ptr< IDiarkisUdp > &	udp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory,
		bool	bRetry
	)

virtual

Set up Session with UDP protocol.

Register loggers and callback functions.

Parameters

[in]	udp	Pointer to IDiarkisUdp class
[in]	loggerFactory	Pointer to logger class
[in]	bRetry	Call this function with true when reconnecting after a failed attempt. The first call to this function must be false.

Here is the call graph for this function:

◆ SetupTcpSession()

void DiarkisSessionBase::SetupTcpSession	(	const std::shared_ptr< IDiarkisTcp > &	tcp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory,
		bool	bRetry
	)

virtual

Set up Session with TCP protocol.

Register loggers and callback functions.

Parameters

[in]	tcp	Pointer to IDiarkisTcp class
[in]	loggerFactory	Pointer to logger class
[in]	bRetry	Call this function with true when reconnecting after a failed attempt. The first call to this function must be false.

Here is the call graph for this function:

◆ HasSession()

bool DiarkisSessionBase::HasSession ( uint8_t sessionType ) const

Check if you are joining at least one Session.

◆ SendCreate()

void DiarkisSessionBase::SendCreate	(	uint8_t	sessionType,
		uint8_t	maxMembers,
		uint8_t	ttl
	)

virtual

Create a new Session.

Callback events registered with GetCreateEvent() (e.g. OnSessionCreate) will be triggered.

Parameters

[in]	sessionType	Session type
[in]	maxMembers	Maximum number of participants in the Session
[in]	ttl	Duration of the Session in seconds after it is empty.

Here is the call graph for this function:

◆ SendInvite() [1/5]

void DiarkisSessionBase::SendInvite	(	uint8_t	sessionType,
		const char **	uids,
		size_t	uidsCount
	)

virtual

Invite a user to the Session your are currently in.

OnSessionInvite is triggered by the invited user.

Parameters

[in]	sessionType	Type of Session to invite.
[in]	uids	List of user IDs to send the invite to
[in]	uidsCount	Number of UIDs

Here is the caller graph for this function:

◆ SendInvite() [2/5]

void DiarkisSessionBase::SendInvite	(	uint8_t	sessionType,
		const std::vector< std::string > &	uids
	)

virtual

Same as SendInvite(uint8_t, const char**, size_t)

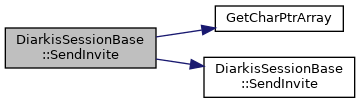

Here is the call graph for this function:

◆ SendInvite() [3/5]

void DiarkisSessionBase::SendInvite	(	uint8_t	sessionType,
		const char **	uids,
		size_t	uidsCount,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Invite a user to the Session you are currently in.

OnSessionInvite is triggered by the invited user.

Parameters

[in]	sessionType	Type of Session to invite.
[in]	uids	List of user IDs to send the invite to
[in]	uidsCount	Number of UIDs
[in]	message	Message to be sent
[in]	messageSize	Length of the message

Here is the call graph for this function:

◆ SendInvite() [4/5]

void DiarkisSessionBase::SendInvite	(	uint8_t	sessionType,
		const std::vector< std::string > &	uids,
		const std::string &	message
	)

virtual

Same as SendInvite(uint8_t, const char**, size_t, const uint8_t*, size_t)

Here is the call graph for this function:

◆ SendInvite() [5/5]

void DiarkisSessionBase::SendInvite	(	uint8_t	sessionType,
		const char **	uids,
		size_t	uidsCount,
		const char *	message
	)

virtual

Same as SendInvite(uint8_t, const char**, size_t, const uint8_t*, size_t)

Here is the call graph for this function:

◆ SendBroadcast() [1/3]

void DiarkisSessionBase::SendBroadcast	(	uint8_t	sessionType,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Broadcast a message.

The message is delivered to all members of the Session, including yourself.

Parameters

[in]	sessionType	Type of Session to send.
[in]	message	Message to be sent
[in]	messageSize	Length of the message

Here is the caller graph for this function:

◆ SendBroadcast() [2/3]

void DiarkisSessionBase::SendBroadcast	(	uint8_t	sessionType,
		const std::string &	message
	)

virtual

Same as SendBroadcast()

Here is the call graph for this function:

◆ SendBroadcast() [3/3]

void DiarkisSessionBase::SendBroadcast	(	uint8_t	sessionType,
		const char *	message
	)

virtual

Same as SendBroadcast()

◆ SendMessageTo() [1/3]

void DiarkisSessionBase::SendMessageTo	(	uint8_t	sessionType,
		const char **	uids,
		size_t	uidsCount,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Send a message to particular membbers.

The message is delivered to particular members of the Session.

Parameters

[in]	sessionType	is the type of the sessionl
[in]	uids	is the list of user IDs the message will be sent to
[in]	uidsCount	Number of UIDs
[in]	message	payload data
[in]	messageSize	Length of the message

◆ SendMessageTo() [2/3]

void DiarkisSessionBase::SendMessageTo	(	uint8_t	sessionType,
		const char **	uids,
		size_t	uidsCount,
		const char *	message
	)

virtual

Same as SendMessageTo()

◆ SendMessageTo() [3/3]

void DiarkisSessionBase::SendMessageTo	(	uint8_t	sessionType,
		const std::vector< std::string > &	memberIDs,
		const std::string &	message
	)

virtual

Same as SendMessageTo()

Here is the call graph for this function:

◆ SendGetSessionInfoBySessionType()

void DiarkisSessionBase::SendGetSessionInfoBySessionType ( uint8_t sessionType )

virtual

Obtain information about the specified Session.

The callback event registered with GetSessionInfoEvent (e.g. OnSessionInfo) is triggered.

Parameters

[in] sessionType Type of the Session

Here is the call graph for this function:

◆ SendGetSessionInfoBySessionID() [1/2]

void DiarkisSessionBase::SendGetSessionInfoBySessionID ( const char * sessionID )

virtual

Obtain information about the specified Session.

The callback event registered with GetSessionInfoEvent (e.g. OnSessionInfo) is triggered.

Parameters

[in] sessionID ID of the Session

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendGetSessionInfoBySessionID() [2/2]

void DiarkisSessionBase::SendGetSessionInfoBySessionID ( const std::string & sessionID )

virtual

Same as SendGetSessionInfoBySessionID()

Here is the call graph for this function:

◆ GetSessionID()

Diarkis::StdString DiarkisSessionBase::GetSessionID ( uint8_t sessionType ) const

Get the Session ID.

If no Session has been joined the ID is empty.

Parameters

[in] sessionType type of the Session to get ID

◆ SendKick() [1/2]

void DiarkisSessionBase::SendKick	(	uint8_t	sessionType,
		const char *	userID
	)

virtual

Kick a Session member.

Parameters

[in]	sessionType	Session type
[in]	userID	ID of the user to kick

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendKick() [2/2]

void DiarkisSessionBase::SendKick	(	uint8_t	sessionType,
		const std::string &	userID
	)

virtual

Same as SendKick()

Here is the call graph for this function:

◆ SendJoin() [1/2]

void DiarkisSessionBase::SendJoin	(	uint8_t	sessionType,
		const char *	sessionID
	)

virtual

Join a Session.

Parameters

[in]	sessionType	Session type
[in]	sessionID	Session ID

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendJoin() [2/2]

void DiarkisSessionBase::SendJoin	(	uint8_t	sessionType,
		const std::string &	sessionID
	)

virtual

Same as SendJoin()

Here is the call graph for this function:

◆ SendLeave()

void DiarkisSessionBase::SendLeave ( uint8_t sessionType )

virtual

Leave a Session.

Parameters

[in] sessionType Session type

Here is the call graph for this function:

◆ SetUserID() [1/2]

void DiarkisSessionBase::SetUserID ( const char * userID )

Set user ID.

Parameters

[in] userID user ID

Here is the caller graph for this function:

◆ SetUserID() [2/2]

void DiarkisSessionBase::SetUserID ( const std::string & userID )

Same as SendUserID()

Here is the call graph for this function:

◆ GetUserID()

Diarkis::StdString DiarkisSessionBase::GetUserID ( ) const

Get user ID.

◆ OnSessionCreateResponse()

void DiarkisSessionBase::OnSessionCreateResponse ( const DiarkisSessionCreateResponseEventArgs & e )

protectedvirtual

Callback event called when the Session is created, event content is the Session ID.

Here is the call graph for this function:

◆ OnSessionInvite()

void DiarkisSessionBase::OnSessionInvite ( const DiarkisSessionInviteEventArgs & e )

protectedvirtual

Callback event called when a user is invited to the Session, event content is the Session ID.

Here is the call graph for this function:

◆ OnSessionJoin()

void DiarkisSessionBase::OnSessionJoin ( const DiarkisSessionNotificationEventArgs & e )

protectedvirtual

Callback event when an a member join the Session, event content is the user ID.

Here is the call graph for this function:

◆ OnSessionLeave()

void DiarkisSessionBase::OnSessionLeave ( const DiarkisSessionNotificationEventArgs & e )

protectedvirtual

Callback event when an a member leave the Session, event content is the user ID.

Here is the call graph for this function:

◆ OnSessionBroadcast()

void DiarkisSessionBase::OnSessionBroadcast ( const DiarkisSessionNotificationEventArgs & e )

protectedvirtual

Callback event when an a broadcast is received.

Here is the call graph for this function:

◆ OnSessionMessageTo()

void DiarkisSessionBase::OnSessionMessageTo ( const DiarkisSessionNotificationEventArgs & e )

protectedvirtual

Callback event when an a message is received.

Here is the call graph for this function:

◆ OnSessionInfo()

void DiarkisSessionBase::OnSessionInfo ( const DiarkisSessionInfoEventArgs & e )

protectedvirtual

Callback event called when acquiring information of a participating Session.

Here is the call graph for this function:

◆ OnSessionKick()

void DiarkisSessionBase::OnSessionKick ( const DiarkisSessionNotificationEventArgs & e )

protectedvirtual

Callback event when kicked out of the Session.

Here is the call graph for this function:

◆ OnSessionInviteResponse()

void DiarkisSessionBase::OnSessionInviteResponse ( const DiarkisSessionResponseEventArgs & e )

protectedvirtual

Callback event when a response is received from the server when SendInvite is sent.

Here is the call graph for this function:

◆ OnSessionKickResponse()

void DiarkisSessionBase::OnSessionKickResponse ( const DiarkisSessionResponseEventArgs & e )

protectedvirtual

Callback event when a response is received from the server when SendKick is sent.

Here is the call graph for this function:

◆ OnSessionJoinResponse()

void DiarkisSessionBase::OnSessionJoinResponse ( const DiarkisSessionResponseEventArgs & e )

protectedvirtual

Callback event when a response is received from the server when SendJoin is sent.

Here is the call graph for this function:

◆ OnSessionMessageToResponse()

void DiarkisSessionBase::OnSessionMessageToResponse ( const DiarkisSessionResponseEventArgs & e )

protectedvirtual

Callback event when a response is received from the server when SendMessageTo is sent.

Here is the call graph for this function:

◆ OnSessionBroadcastResponse()

void DiarkisSessionBase::OnSessionBroadcastResponse ( const DiarkisSessionResponseEventArgs & e )

protectedvirtual

Callback event when a response is received from the server when SendBroadcast is sent.

Here is the call graph for this function:

◆ OnSessionLeaveResponse()

void DiarkisSessionBase::OnSessionLeaveResponse ( const DiarkisSessionResponseEventArgs & e )

protectedvirtual

Callback event when a response is received from the server when SendLeave is sent.

Here is the call graph for this function:

Member Data Documentation

◆ udp_

std::shared_ptr<IDiarkisUdp> DiarkisSessionBase::udp_

protected

IDiarkisUdpクラスへのポインタ

~@japanese

Pointer to IDiarkisUdp class

◆ tcp_

std::shared_ptr<IDiarkisTcp> DiarkisSessionBase::tcp_

protected

Pointer to IDiarkisTcp class.

◆ session_

std::shared_ptr<IDiarkisSession> DiarkisSessionBase::session_

protected

Pointer to IDiarkisSession class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisSessionBase::logger_

protected

Pointer to IDiarkisLogger class.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisSessionBase::eventUnsubscriptions_

protected

List of lambda functions.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisSessionBase.h
client/cpp/diarkis-module/Client/Private/DiarkisSessionBase.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DiarkisSessionBase()

◆ ~DiarkisSessionBase()

Member Function Documentation

◆ SetupUdpSession()

◆ SetupTcpSession()

◆ HasSession()

◆ SendCreate()

◆ SendInvite() [1/5]

◆ SendInvite() [2/5]

◆ SendInvite() [3/5]

◆ SendInvite() [4/5]

◆ SendInvite() [5/5]

◆ SendBroadcast() [1/3]

◆ SendBroadcast() [2/3]

◆ SendBroadcast() [3/3]

◆ SendMessageTo() [1/3]

◆ SendMessageTo() [2/3]

◆ SendMessageTo() [3/3]

◆ SendGetSessionInfoBySessionType()

◆ SendGetSessionInfoBySessionID() [1/2]

◆ SendGetSessionInfoBySessionID() [2/2]

◆ GetSessionID()

◆ SendKick() [1/2]

◆ SendKick() [2/2]

◆ SendJoin() [1/2]

◆ SendJoin() [2/2]

◆ SendLeave()

◆ SetUserID() [1/2]

◆ SetUserID() [2/2]

◆ GetUserID()

◆ OnSessionCreateResponse()

◆ OnSessionInvite()

◆ OnSessionJoin()

◆ OnSessionLeave()

◆ OnSessionBroadcast()

◆ OnSessionMessageTo()

◆ OnSessionInfo()

◆ OnSessionKick()

◆ OnSessionInviteResponse()

◆ OnSessionKickResponse()

◆ OnSessionJoinResponse()

◆ OnSessionMessageToResponse()

◆ OnSessionBroadcastResponse()

◆ OnSessionLeaveResponse()

Member Data Documentation

◆ udp_

◆ tcp_

◆ session_

◆ logger_

◆ eventUnsubscriptions_
