Base class that wraps the IDiarkisGroup class for easy use of Group functionality. More...

#include <DiarkisGroupBase.h>

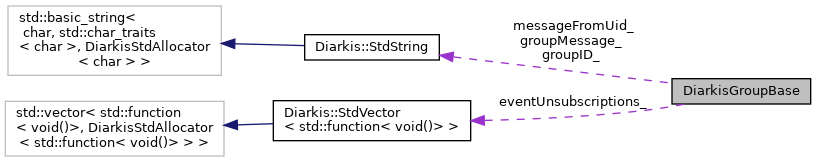

Collaboration diagram for DiarkisGroupBase:

[legend]

Public Member Functions
	DiarkisGroupBase ()
	DiarkisGroupBase constructor. More...

virtual	~DiarkisGroupBase ()
	DiarkisGroupBase destructor. More...

virtual void	SetupTcpGroup (const std::shared_ptr< IDiarkisTcp > &tcp, const std::shared_ptr< LoggerFactory > &loggerFactory, bool bRetry)
	Set up Group with TCP protocol. More...

virtual void	SetupUdpGroup (const std::shared_ptr< IDiarkisUdp > &udp, const std::shared_ptr< LoggerFactory > &loggerFactory, bool bRetry)
	Set up Group with UDP protocol. More...

virtual void	SendCreateGroup (bool allowEmpty, bool join, uint16_t ttl)
	Creates a new group. More...

virtual void	SendJoinGroup (const char groupID, const uint8_t message, size_t messageSize)
	Join an existing group. More...

virtual void	SendJoinGroup (const std::string &groupID, const std::vector< uint8_t > &message)
	Same as SendJoingGroup() More...

virtual void	SendRandomJoinGroup (uint16_t ttl, const uint8_t *message, size_t messageSize, uint32_t interval, bool allowEmpty=false)
	If there is a group you can join, join that group, otherwise create a new group. More...

virtual void	SendRandomJoinGroup (uint16_t ttl, const std::vector< uint8_t > &message, uint32_t interval, bool allowEmpty=false)
	Same as SendRandomJoinGroup() More...

virtual void	SendLeaveGroup (const char groupID, const uint8_t message, size_t messageSize)
	Leave from the specified group. More...

virtual void	SendLeaveGroup (const std::string &groupID, const std::vector< uint8_t > &message)
	Same as SendLeaveGroup(const char, const uint8_t, size_t) More...

virtual void	SendLeaveGroup (const uint8_t *message, size_t messageSize)
	Leave from all groups. More...

virtual void	SendLeaveGroup (const std::vector< uint8_t > &message)
	Same as SendLeaveGroup(const uint8_t*, size_t) More...

virtual void	SendBroadcastToGroup (const uint8_t *payload, size_t payloadSize, bool reliable)
	Sends a broadcast to all users in all participating groups. More...

virtual void	SendBroadcastToGroup (const std::vector< uint8_t > &payload, bool reliable)
	Same as SendBroadcastToGroup(const uint8_t*, size_t, bool) More...

virtual void	SendBroadcastToGroup (const char groupID, const uint8_t payload, size_t payloadSize, bool reliable)
	Sends a broadcast to all users in the specified group. More...

virtual void	SendBroadcastToGroup (const std::string &groupID, const std::vector< uint8_t > &payload, bool reliable)
	Same as SendBroadcastToGroup(const char, const uint8_t, size_t, bool) More...

bool	IsJoin ()
	Whether or not you are participating in a group. More...

bool	IsFail ()
	Whether or not you failed to join the group. More...

Diarkis::StdString	GetGroupID ()
	Retrieve the Group ID of the participating group. More...

Protected Member Functions
virtual void	OnGroupCreation (DiarkisTransportType transportType, const DiarkisGroupEventArgs &e)
	Callback function called when a group is created. More...

virtual void	OnGroupJoin (DiarkisTransportType transportType, const DiarkisGroupEventArgs &e)
	Callback function called when joining a group. More...

virtual void	OnGroupLeave (DiarkisTransportType transportType, const DiarkisGroupEventArgs &e)
	Callback function called when leaving a group. More...

virtual void	OnGroupMemberJoin (DiarkisTransportType transportType, const DiarkisPayloadEventArgs &e)
	Callback function called when another member joins the group. More...

virtual void	OnGroupMemberLeave (DiarkisTransportType transportType, const DiarkisPayloadEventArgs &e)
	Callback function called when another member leaves the group. More...

virtual void	OnGroupMemberBroadcast (DiarkisTransportType transportType, const DiarkisPayloadEventArgs &e)
	Callback function called when a broadcast message is received. More...

Protected Attributes
std::shared_ptr< IDiarkisTcp >	tcp_
	Pointer to the IDiarkisTcp class. More...

std::shared_ptr< IDiarkisUdp >	udp_
	Pointer to the IDiarkisUdp class. More...

std::shared_ptr< IDiarkisGroup >	group_
	Pointer to the IDiarkisGroup class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to the IDiarkisLogger class. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	Lambda functions list. More...

Diarkis::StdString	groupID_
	Group ID. More...

Diarkis::StdString	groupMessage_
	Latest message received. More...

Diarkis::StdString	messageFromUid_
	User ID of the sender of the most recent message received. More...

ConnectState	groupConnect_
	Group connection status. More...

Detailed Description

Base class that wraps the IDiarkisGroup class for easy use of Group functionality.

Constructor & Destructor Documentation

◆ DiarkisGroupBase()

DiarkisGroupBase::DiarkisGroupBase ( )

DiarkisGroupBase constructor.

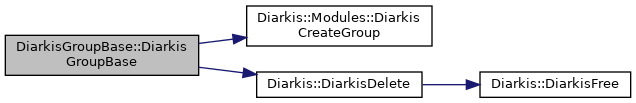

Here is the call graph for this function:

◆ ~DiarkisGroupBase()

DiarkisGroupBase::~DiarkisGroupBase ( )

virtual

DiarkisGroupBase destructor.

Member Function Documentation

◆ SetupTcpGroup()

void DiarkisGroupBase::SetupTcpGroup	(	const std::shared_ptr< IDiarkisTcp > &	tcp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory,
		bool	bRetry
	)

virtual

Set up Group with TCP protocol.

Register loggers and callback functions.

Parameters

[in]	tcp	Pointer to IDiarkisTcp class
[in]	loggerFactory	Pointer to LoggerFactory class
[in]	bRetry	Call this function with true when reconnecting after a failed attempt to join a group. The first call to this function must be false.

Here is the call graph for this function:

◆ SetupUdpGroup()

void DiarkisGroupBase::SetupUdpGroup	(	const std::shared_ptr< IDiarkisUdp > &	udp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory,
		bool	bRetry
	)

virtual

Set up Group with UDP protocol.

Register loggers and callback functions.

Parameters

[in]	udp	Pointer to IDiarkisUdp class
[in]	loggerFactory	Pointer to logger class
[in]	bRetry	Call this function with true when reconnecting after a failed attempt to join a group. The first call to this function must be false.

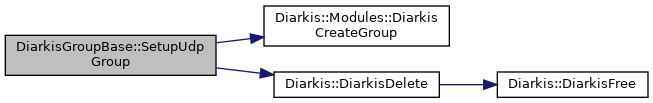

Here is the call graph for this function:

◆ SendCreateGroup()

void DiarkisGroupBase::SendCreateGroup	(	bool	allowEmpty,
		bool	join,
		uint16_t	ttl
	)

virtual

Creates a new group.

Callback events registered with GetCreateEvent() (e.g. OnGroupCreation) will be triggered.

Parameters

[in]	allowEmpty	Determines if the client will keep the group even when no one has joined. true = Keep the group even when no clients are present. false = If the client is gone the group will be destroyed after the time specified by ttl has elapsed.
[in]	join	Determines whether or not a new group is created and then joined. true = Join the group after it is created. In this case, the server will not respond to the Join request. false = Only creates the group. If you want to join the group, you need to execute Join separately.
[in]	ttl	Specifies the duration, in seconds, of a group's existence after it becomes empty; used only if allowEmpty is set to true.

Here is the call graph for this function:

◆ SendJoinGroup() [1/2]

void DiarkisGroupBase::SendJoinGroup	(	const char *	groupID,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Join an existing group.

A callback event registered with GetJoinEvent() (e.g. OnGroupJoin) will be triggered.
A callback event registered with GetMemberJoinEvent() (e.g. OnGroupMemberJoin) will be triggered for the member of the target group.

Parameters

[in]	groupID	ID of the group to join
[in]	message	Sends an message to group members when join. For example, you can include a user ID to notify the user ID of a newly joined member.
[in]	messageSize	Length of the message

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendJoinGroup() [2/2]

void DiarkisGroupBase::SendJoinGroup	(	const std::string &	groupID,
		const std::vector< uint8_t > &	message
	)

virtual

Same as SendJoingGroup()

Here is the call graph for this function:

◆ SendRandomJoinGroup() [1/2]

void DiarkisGroupBase::SendRandomJoinGroup	(	uint16_t	ttl,
		const uint8_t *	message,
		size_t	messageSize,
		uint32_t	interval,
		bool	allowEmpty = `false`
	)

virtual

If there is a group you can join, join that group, otherwise create a new group.

If you join an existing group, a callback event registered with GetJoinEvent() (e.g. OnGroupJoin) will be triggered.
When a new group is created, the callback event registered with GetCreateEvent() (e.g. OnGroupCreation ) will be triggered.

Parameters

[in]	ttl	Duration in seconds since the group became empty, used only when allowEmpty is set to true.
[in]	message	Sends an optional message to group members when they join.
[in]	messageSize	Length of the message
[in]	interval	Specifies the interval in milliseconds between when the server processes BroadcastTo. The default value is 200ms. The messages for the time specified by interval are compiled and sent by the server.
[in]	allowEmpty	Determines whether or not the group is retained even when no client has joined. true = Retain the group even if no clients are present. false = The group will be destroyed after the time specified by ttl if there are no clients.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRandomJoinGroup() [2/2]

void DiarkisGroupBase::SendRandomJoinGroup	(	uint16_t	ttl,
		const std::vector< uint8_t > &	message,
		uint32_t	interval,
		bool	allowEmpty = `false`
	)

virtual

Same as SendRandomJoinGroup()

Here is the call graph for this function:

◆ SendLeaveGroup() [1/4]

void DiarkisGroupBase::SendLeaveGroup	(	const char *	groupID,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Leave from the specified group.

Callback event registered with GetMemberLeaveEvent() (e.g. OnGroupMemberLeave) will be triggered.

Parameters

[in]	groupID	ID of the group to leave
[in]	message	Sends an message to group members when leaving.
[in]	messageSize	Length of the message

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendLeaveGroup() [2/4]

void DiarkisGroupBase::SendLeaveGroup	(	const std::string &	groupID,
		const std::vector< uint8_t > &	message
	)

virtual

Same as SendLeaveGroup(const char*, const uint8_t*, size_t)

Here is the call graph for this function:

◆ SendLeaveGroup() [3/4]

void DiarkisGroupBase::SendLeaveGroup	(	const uint8_t *	message,
		size_t	messageSize
	)

virtual

Leave from all groups.

Callback event registered with GetMemberLeaveEvent() (e.g. OnGroupMemberLeave) will be triggered.

Parameters

[in]	message	Sends an message to group members when leaving.
[in]	messageSize	Length of the message

Here is the call graph for this function:

◆ SendLeaveGroup() [4/4]

void DiarkisGroupBase::SendLeaveGroup ( const std::vector< uint8_t > & message )

virtual

Same as SendLeaveGroup(const uint8_t*, size_t)

Here is the call graph for this function:

◆ SendBroadcastToGroup() [1/4]

void DiarkisGroupBase::SendBroadcastToGroup	(	const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable
	)

virtual

Sends a broadcast to all users in all participating groups.

The callback event registered with GetMemberBroadcastEvent() (e.g. OnGroupMemberBroadcast) will be triggered.
Callback events are also triggered for messages sent by you.

Parameters

[in]	payload	Message to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines if the message is sent via reliable communication (RUDP); ignored for TCP protocol.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBroadcastToGroup() [2/4]

void DiarkisGroupBase::SendBroadcastToGroup	(	const std::vector< uint8_t > &	payload,
		bool	reliable
	)

virtual

Same as SendBroadcastToGroup(const uint8_t*, size_t, bool)

Here is the call graph for this function:

◆ SendBroadcastToGroup() [3/4]

void DiarkisGroupBase::SendBroadcastToGroup	(	const char *	groupID,
		const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable
	)

virtual

Sends a broadcast to all users in the specified group.

The callback event registered with GetMemberBroadcastEvent() (e.g. OnGroupMemberBroadcast) will be triggered.
Callback events are also triggered for messages sent by you.

Parameters

[in]	groupID	ID of the group to send a message
[in]	payload	Message to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines if the message is sent via reliable communication (RUDP); ignored for TCP protocol.

Here is the call graph for this function:

◆ SendBroadcastToGroup() [4/4]

void DiarkisGroupBase::SendBroadcastToGroup	(	const std::string &	groupID,
		const std::vector< uint8_t > &	payload,
		bool	reliable
	)

virtual

Same as SendBroadcastToGroup(const char*, const uint8_t*, size_t, bool)

Here is the call graph for this function:

◆ IsJoin()

bool DiarkisGroupBase::IsJoin ( )

Whether or not you are participating in a group.

◆ IsFail()

bool DiarkisGroupBase::IsFail ( )

Whether or not you failed to join the group.

◆ GetGroupID()

Diarkis::StdString DiarkisGroupBase::GetGroupID ( )

Retrieve the Group ID of the participating group.

◆ OnGroupCreation()

void DiarkisGroupBase::OnGroupCreation	(	DiarkisTransportType	transportType,
		const DiarkisGroupEventArgs &	e
	)

protectedvirtual

Callback function called when a group is created.

Called when a Group Create response is received from the server.

Here is the call graph for this function:

◆ OnGroupJoin()

void DiarkisGroupBase::OnGroupJoin	(	DiarkisTransportType	transportType,
		const DiarkisGroupEventArgs &	e
	)

protectedvirtual

Callback function called when joining a group.

Called when a Group Join response is received from the server.

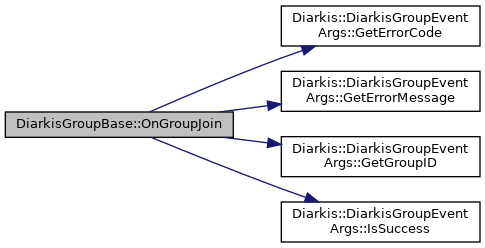

Here is the call graph for this function:

◆ OnGroupLeave()

void DiarkisGroupBase::OnGroupLeave	(	DiarkisTransportType	transportType,
		const DiarkisGroupEventArgs &	e
	)

protectedvirtual

Callback function called when leaving a group.

Called when a Group Leave response is received from the server.

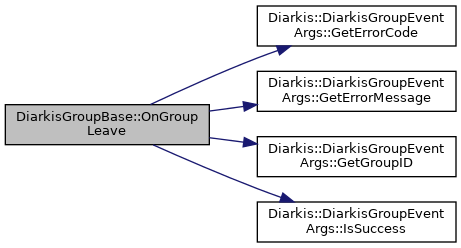

Here is the call graph for this function:

◆ OnGroupMemberJoin()

void DiarkisGroupBase::OnGroupMemberJoin	(	DiarkisTransportType	transportType,
		const DiarkisPayloadEventArgs &	e
	)

protectedvirtual

Callback function called when another member joins the group.

Called when a Group Join notification is received from the server.

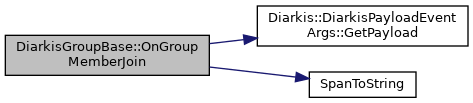

Here is the call graph for this function:

◆ OnGroupMemberLeave()

void DiarkisGroupBase::OnGroupMemberLeave	(	DiarkisTransportType	transportType,
		const DiarkisPayloadEventArgs &	e
	)

protectedvirtual

Callback function called when another member leaves the group.

Called when a Group Leave notification is received from the server.

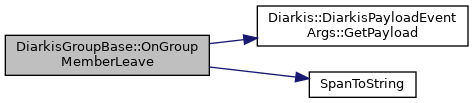

Here is the call graph for this function:

◆ OnGroupMemberBroadcast()

void DiarkisGroupBase::OnGroupMemberBroadcast	(	DiarkisTransportType	transportType,
		const DiarkisPayloadEventArgs &	e
	)

protectedvirtual

Callback function called when a broadcast message is received.

Called when a Group Broadcast notification is received from the server.

Here is the call graph for this function:

Member Data Documentation

◆ tcp_

std::shared_ptr<IDiarkisTcp> DiarkisGroupBase::tcp_

protected

Pointer to the IDiarkisTcp class.

◆ udp_

std::shared_ptr<IDiarkisUdp> DiarkisGroupBase::udp_

protected

Pointer to the IDiarkisUdp class.

◆ group_

std::shared_ptr<IDiarkisGroup> DiarkisGroupBase::group_

protected

Pointer to the IDiarkisGroup class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisGroupBase::logger_

protected

Pointer to the IDiarkisLogger class.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisGroupBase::eventUnsubscriptions_

protected

Lambda functions list.

◆ groupID_

Diarkis::StdString DiarkisGroupBase::groupID_

protected

Group ID.

◆ groupMessage_

Diarkis::StdString DiarkisGroupBase::groupMessage_

protected

Latest message received.

◆ messageFromUid_

Diarkis::StdString DiarkisGroupBase::messageFromUid_

protected

User ID of the sender of the most recent message received.

◆ groupConnect_

ConnectState DiarkisGroupBase::groupConnect_

protected

Group connection status.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisGroupBase.h
client/cpp/diarkis-module/Client/Private/DiarkisGroupBase.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DiarkisGroupBase()

◆ ~DiarkisGroupBase()

Member Function Documentation

◆ SetupTcpGroup()

◆ SetupUdpGroup()

◆ SendCreateGroup()

◆ SendJoinGroup() [1/2]

◆ SendJoinGroup() [2/2]

◆ SendRandomJoinGroup() [1/2]

◆ SendRandomJoinGroup() [2/2]

◆ SendLeaveGroup() [1/4]

◆ SendLeaveGroup() [2/4]

◆ SendLeaveGroup() [3/4]

◆ SendLeaveGroup() [4/4]

◆ SendBroadcastToGroup() [1/4]

◆ SendBroadcastToGroup() [2/4]

◆ SendBroadcastToGroup() [3/4]

◆ SendBroadcastToGroup() [4/4]

◆ IsJoin()

◆ IsFail()

◆ GetGroupID()

◆ OnGroupCreation()

◆ OnGroupJoin()

◆ OnGroupLeave()

◆ OnGroupMemberJoin()

◆ OnGroupMemberLeave()

◆ OnGroupMemberBroadcast()

Member Data Documentation

◆ tcp_

◆ udp_

◆ group_

◆ logger_

◆ eventUnsubscriptions_

◆ groupID_

◆ groupMessage_

◆ messageFromUid_

◆ groupConnect_
