Base class implementing sample RPC functionality. More...

#include <DiarkisRpcBase.h>

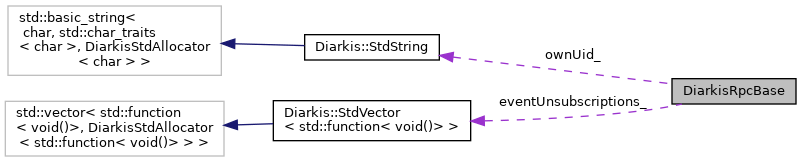

Collaboration diagram for DiarkisRpcBase:

[legend]

Public Member Functions
	DiarkisRpcBase ()
	DiarkisRpcBase constructor. More...

virtual	~DiarkisRpcBase ()
	DiarkisRpcBase destructor. More...

virtual void	SetupRpc (const char *uid, const std::shared_ptr< IDiarkisRoom > &room, const std::shared_ptr< LoggerFactory > &loggerFactory)
	Set up RPC. More...

virtual void	SetupRpc (const std::string &uid, const std::shared_ptr< IDiarkisRoom > &room, const std::shared_ptr< LoggerFactory > &loggerFactory)
	Same as SetupRpc() More...

virtual bool	RPCAll (uint32_t rpcID, const uint8_t *payload, size_t payloadSize, bool reliable=true)
	Call the RPCs of all participants in the room. More...

virtual bool	RPCAll (uint32_t rpcID, const std::vector< uint8_t > &payload, bool reliable=true)
	Same as RPCAll() More...

virtual bool	RPCMany (uint32_t rpcID, const char *memberIDs, size_t memberIDsCount, const uint8_t payload, size_t payloadSize, bool reliable=true)
	Calls the RPC of any member participating in the room. More...

virtual bool	RPCMany (uint32_t rpcID, const std::vector< std::string > &memberIDs, const std::vector< uint8_t > &payload, bool reliable=true)
	Same as RPCMany() More...

virtual bool	RPCOne (uint32_t rpcID, const char userID, const uint8_t payload, size_t payloadSize, bool reliable=true)
	Calls the RPC of a specific member participating in the room. More...

virtual bool	RPCOne (uint32_t rpcID, const std::string &userID, const std::vector< uint8_t > &payload, bool reliable=true)
	Same as RPCOne() More...

Protected Attributes
std::shared_ptr< IDiarkisRPC >	rpc_
	Pointer to IDiarkisRPC class. More...

std::shared_ptr< IDiarkisRoom >	room_
	Pointer to IDiarkisRoom class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to IDiarkisLogger. More...

Diarkis::StdString	ownUid_
	My user ID. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	Lambda functions list. More...

Detailed Description

Base class implementing sample RPC functionality.

Constructor & Destructor Documentation

◆ DiarkisRpcBase()

DiarkisRpcBase::DiarkisRpcBase ( )

DiarkisRpcBase constructor.

◆ ~DiarkisRpcBase()

DiarkisRpcBase::~DiarkisRpcBase ( )

virtual

DiarkisRpcBase destructor.

Member Function Documentation

◆ SetupRpc() [1/2]

void DiarkisRpcBase::SetupRpc	(	const char *	uid,
		const std::shared_ptr< IDiarkisRoom > &	room,
		const std::shared_ptr< LoggerFactory > &	loggerFactory
	)

virtual

Set up RPC.

Register loggers and callback functions.

Parameters

[in]	uid	your user ID
[in]	room	Pointer to IDiarkisRoom class
[in]	loggerFactory	Log for client library

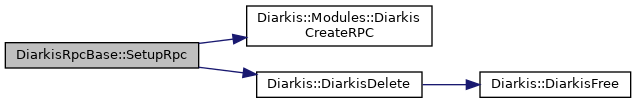

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupRpc() [2/2]

void DiarkisRpcBase::SetupRpc	(	const std::string &	uid,
		const std::shared_ptr< IDiarkisRoom > &	room,
		const std::shared_ptr< LoggerFactory > &	loggerFactory
	)

virtual

Same as SetupRpc()

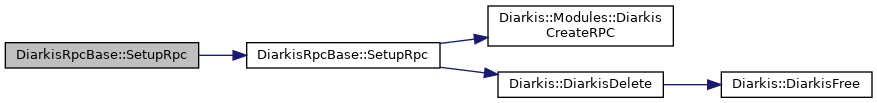

Here is the call graph for this function:

◆ RPCAll() [1/2]

bool DiarkisRpcBase::RPCAll	(	uint32_t	rpcID,
		const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable = `true`
	)

virtual

Call the RPCs of all participants in the room.

Parameters

[in]	rpcID	ID of the RPC to be called
[in]	payload	Data to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines whether to send over reliable communication (RUDP).

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RPCAll() [2/2]

bool DiarkisRpcBase::RPCAll	(	uint32_t	rpcID,
		const std::vector< uint8_t > &	payload,
		bool	reliable = `true`
	)

virtual

Same as RPCAll()

Here is the call graph for this function:

◆ RPCMany() [1/2]

bool DiarkisRpcBase::RPCMany	(	uint32_t	rpcID,
		const char **	memberIDs,
		size_t	memberIDsCount,
		const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable = `true`
	)

virtual

Calls the RPC of any member participating in the room.

Parameters

[in]	rpcID	ID of the RPC to call
[in]	memberIDs	List of user IDs of members to call
[in]	memberIDsCount	Number of member IDs
[in]	payload	Data to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines whether to send over reliable communication (RUDP).

Here is the caller graph for this function:

◆ RPCMany() [2/2]

bool DiarkisRpcBase::RPCMany	(	uint32_t	rpcID,
		const std::vector< std::string > &	memberIDs,
		const std::vector< uint8_t > &	payload,
		bool	reliable = `true`
	)

virtual

Same as RPCMany()

Here is the call graph for this function:

◆ RPCOne() [1/2]

bool DiarkisRpcBase::RPCOne	(	uint32_t	rpcID,
		const char *	userID,
		const uint8_t *	payload,
		size_t	payloadSize,
		bool	reliable = `true`
	)

virtual

Calls the RPC of a specific member participating in the room.

Parameters

[in]	rpcID	ID of the RPC to call
[in]	userID	Target user ID
[in]	payload	Data to be sent
[in]	payloadSize	Length of the payload
[in]	reliable	Determines whether to send over reliable communication (RUDP).

Here is the caller graph for this function:

◆ RPCOne() [2/2]

bool DiarkisRpcBase::RPCOne	(	uint32_t	rpcID,
		const std::string &	userID,
		const std::vector< uint8_t > &	payload,
		bool	reliable = `true`
	)

virtual

Same as RPCOne()

Here is the call graph for this function:

Member Data Documentation

◆ rpc_

std::shared_ptr<IDiarkisRPC> DiarkisRpcBase::rpc_

protected

Pointer to IDiarkisRPC class.

◆ room_

std::shared_ptr<IDiarkisRoom> DiarkisRpcBase::room_

protected

Pointer to IDiarkisRoom class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisRpcBase::logger_

protected

Pointer to IDiarkisLogger.

◆ ownUid_

Diarkis::StdString DiarkisRpcBase::ownUid_

protected

My user ID.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisRpcBase::eventUnsubscriptions_

protected

Lambda functions list.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisRpcBase.h
client/cpp/diarkis-module/Client/Private/DiarkisRpcBase.cpp
