Base class that wraps the IDiarkisDirectMessage class for easy use of DirectMessage functionality. More...

#include <DiarkisDirectMessageBase.h>

Collaboration diagram for DiarkisDirectMessageBase:

Public Member Functions
	DiarkisDirectMessageBase ()
	DiarkisDirectMessagecBase constructor. More...

virtual	~DiarkisDirectMessageBase ()
	DiarkisDirectMessageBase destructor. More...

virtual void	SetupTcp (const std::shared_ptr< IDiarkisTcp > &tcp, const std::shared_ptr< LoggerFactory > &loggerFactory)
	Set up DirectMessage with the TCP protocol. More...

virtual void	SetupUdp (const std::shared_ptr< IDiarkisUdp > &udp, const std::shared_ptr< LoggerFactory > &loggerFactory)
	Set up DirectMessage with UDP protocol. More...

virtual void	Disconnect (const char uid, const uint8_t message, size_t messageSize)
	Disconnects from the specified user via direct message and sends a custom message. More...

virtual void	Disconnect (const std::string &uid, const std::vector< uint8_t > &message)
	Same as Diconnect() More...

virtual void	Send (const char uid, const uint8_t message, size_t messageSize)
	Sends a direct message to the specified user. More...

virtual void	Send (const std::string &uid, const std::vector< uint8_t > &message)
	Same as Send() More...

virtual void	RSend (const char uid, const uint8_t message, size_t messageSize)
	Sends a direct message to the specified user using reliable communications. More...

virtual void	RSend (const std::string &uid, const std::vector< uint8_t > &message)
	Same as RSend() More...

Protected Member Functions
virtual void	OnDisconnect (const DiarkisDirectMessageEventArgs &e)
	Callback function called when a direct message is disconnected. More...

virtual void	OnMessage (const DiarkisDirectMessageEventArgs &e)
	Callback function triggered when a direct message from another user is received. More...

Protected Attributes
std::shared_ptr< IDiarkisDirectMessage >	dm_
	Pointer to IDiarkisDirectMessage class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to IDiarkisLogger class. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	Lambda functions list. More...

Detailed Description

Base class that wraps the IDiarkisDirectMessage class for easy use of DirectMessage functionality.

Constructor & Destructor Documentation

◆ DiarkisDirectMessageBase()

DiarkisDirectMessageBase::DiarkisDirectMessageBase ( )

DiarkisDirectMessagecBase constructor.

◆ ~DiarkisDirectMessageBase()

DiarkisDirectMessageBase::~DiarkisDirectMessageBase ( )

virtual

DiarkisDirectMessageBase destructor.

Member Function Documentation

◆ SetupTcp()

void DiarkisDirectMessageBase::SetupTcp	(	const std::shared_ptr< IDiarkisTcp > &	tcp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory
	)

virtual

Set up DirectMessage with the TCP protocol.

Registers loggers and callback functions.

Parameters

[in]	tcp	Pointer to the IDiarkisTcp class
[in]	loggerFactory	Pointer to loggerFactory logger class

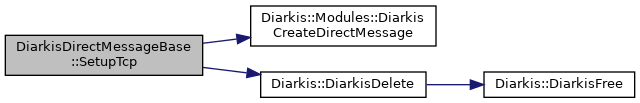

Here is the call graph for this function:

◆ SetupUdp()

void DiarkisDirectMessageBase::SetupUdp	(	const std::shared_ptr< IDiarkisUdp > &	udp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory
	)

virtual

Set up DirectMessage with UDP protocol.

Register loggers and callback functions.

Parameters

[in]	udp	Pointer to IDiarkisUdp class
[in]	loggerFactory	Pointer to logger class

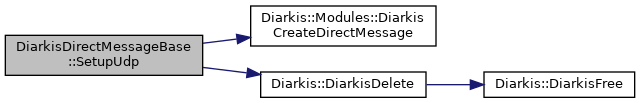

Here is the call graph for this function:

◆ Disconnect() [1/2]

void DiarkisDirectMessageBase::Disconnect	(	const char *	uid,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Disconnects from the specified user via direct message and sends a custom message.

A callback event (e.g. OnDisconnect) registered with GetDisconnectEvent() will be triggered.
Connection information for direct messages with the specified user cached on the server will be deleted.

Parameters

[in]	uid	Remote client user ID
[in]	message	Message to be sent to remote client
[in]	messageSize	Length of the message

◆ Disconnect() [2/2]

void DiarkisDirectMessageBase::Disconnect	(	const std::string &	uid,
		const std::vector< uint8_t > &	message
	)

virtual

Same as Diconnect()

◆ Send() [1/2]

void DiarkisDirectMessageBase::Send	(	const char *	uid,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Sends a direct message to the specified user.

The first message may take some time because it needs to search for a remote client.
Messages are sent using the UDP protocol if you are using SetupUdp.
If you are using SetupTcp, messages will be sent using the TCP protocol.
After this function is executed, the callback event (e.g. OnMessageEvent) registered with GetMessageEvent() will be triggered.

Parameters

[in]	uid	User ID of the target to which direct messages are sent
[in]	message	Message to be sent
[in]	messageSize	Length of the message

◆ Send() [2/2]

void DiarkisDirectMessageBase::Send	(	const std::string &	uid,
		const std::vector< uint8_t > &	message
	)

virtual

Same as Send()

◆ RSend() [1/2]

void DiarkisDirectMessageBase::RSend	(	const char *	uid,
		const uint8_t *	message,
		size_t	messageSize
	)

virtual

Sends a direct message to the specified user using reliable communications.

The first message may take some time as it needs to search for a remote client.
Messages are sent using the RUDP protocol if SetupUdp is used.
If you are using SetupTcp, messages will be sent using the TCP protocol.
After this function is executed, the callback event (e.g. OnMessageEvent) registered with GetMessageEvent() will be triggered.

Parameters

[in]	uid	User ID of the target to which direct messages are sent
[in]	message	Message to be sent
[in]	messageSize	Length of the message

◆ RSend() [2/2]

void DiarkisDirectMessageBase::RSend	(	const std::string &	uid,
		const std::vector< uint8_t > &	message
	)

virtual

Same as RSend()

◆ OnDisconnect()

void DiarkisDirectMessageBase::OnDisconnect ( const DiarkisDirectMessageEventArgs & e )

protectedvirtual

Callback function called when a direct message is disconnected.

Triggered when a DirectMessage Disconnect notification is received from the server.

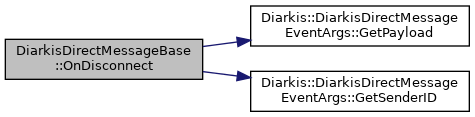

Here is the call graph for this function:

◆ OnMessage()

void DiarkisDirectMessageBase::OnMessage ( const DiarkisDirectMessageEventArgs & e )

protectedvirtual

Callback function triggered when a direct message from another user is received.

Triggered when a DirectMessage Message notification is received from the server.

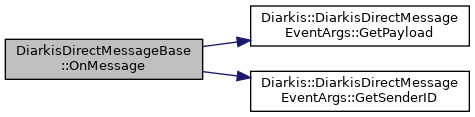

Here is the call graph for this function:

Member Data Documentation

◆ dm_

std::shared_ptr<IDiarkisDirectMessage> DiarkisDirectMessageBase::dm_

protected

Pointer to IDiarkisDirectMessage class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisDirectMessageBase::logger_

protected

Pointer to IDiarkisLogger class.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisDirectMessageBase::eventUnsubscriptions_

protected

Lambda functions list.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisDirectMessageBase.h
client/cpp/diarkis-module/Client/Private/DiarkisDirectMessageBase.cpp
