Base class that wraps the IDiarkisField class for easy use of Field functionality. More...

#include <DiarkisFieldBase.h>

Collaboration diagram for DiarkisFieldBase:

Public Member Functions
	DiarkisFieldBase ()
	DiarkisFieldBase constructor. More...

virtual	~DiarkisFieldBase ()
	DiarkisFieldBase destructor. More...

virtual void	SetupTcpField (const std::shared_ptr< IDiarkisTcp > &tcp, const std::shared_ptr< LoggerFactory > &loggerFactory)
	Set up Field with TCP protocol. More...

virtual void	SetupUdpField (const std::shared_ptr< IDiarkisUdp > &udp, const std::shared_ptr< LoggerFactory > &loggerFactory)
	Setup Field with UDP protocol. More...

virtual void	SendFieldJoin (int64_t x, int64_t y, int64_t z, const uint8_t *payload, size_t payloadSize, uint32_t syncLimit, uint32_t customFilterID, bool reliable)
	Join field. More...

virtual void	SendFieldJoin (int64_t x, int64_t y, int64_t z, const std::vector< uint8_t > &payload, uint32_t syncLimit, uint32_t customFilterID, bool reliable)
	Same as SendFieldJoin() More...

virtual void	SendFieldSync (int64_t x, int64_t y, int64_t z, const uint8_t *payload, size_t payloadSize, uint32_t syncLimit, uint32_t customFilterID, bool reliable)
	Sends data to other clients in the field. More...

virtual void	SendFieldSync (int64_t x, int64_t y, int64_t z, const std::vector< uint8_t > &payload, uint32_t syncLimit, uint32_t customFilterID, bool reliable)
	Same as SendFieldSync() More...

virtual void	SendFieldDisappear ()
	Notifies that this client is no longer visible to other clients. More...

virtual void	SendFieldLeave ()
	Notify that you are leaving the field. More...

Protected Member Functions
virtual void	OnJoin (const DiarkisSuccessEventArgs &e)
	Callback event called when joined a field. More...

virtual void	OnSync (const Diarkis::StdVector< uint8_t > &payload)
	Callback event called when synchronizing the position of nearby clients in the field. More...

virtual void	OnDisappear (const Diarkis::StdString &remoteUid)
	Callback event called when Disappear is received. More...

virtual void	OnLeave (const DiarkisSuccessEventArgs &e)
	Response callback event called when exiting the Field. More...

Protected Attributes
std::shared_ptr< IDiarkisTcp >	tcp_
	Pointer to the IDiarkisTcp class. More...

std::shared_ptr< IDiarkisUdp >	udp_
	Pointer to the IDiarkisUdp class. More...

std::shared_ptr< IDiarkisField >	field_
	Pointer to the IDiarkisField class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to the IDiarkisLogger class. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	Lambda functions list. More...

ConnectState	fieldConnect_
	Field status. More...

Detailed Description

Base class that wraps the IDiarkisField class for easy use of Field functionality.

Constructor & Destructor Documentation

◆ DiarkisFieldBase()

DiarkisFieldBase::DiarkisFieldBase ( )

DiarkisFieldBase constructor.

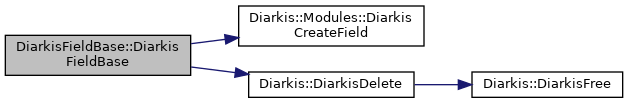

Here is the call graph for this function:

◆ ~DiarkisFieldBase()

DiarkisFieldBase::~DiarkisFieldBase ( )

virtual

DiarkisFieldBase destructor.

Member Function Documentation

◆ SetupTcpField()

void DiarkisFieldBase::SetupTcpField	(	const std::shared_ptr< IDiarkisTcp > &	tcp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory
	)

virtual

Set up Field with TCP protocol.

Register loggers and callback functions.

Parameters

[in]	tcp	Pointer to IDiarkisTcp class
[in]	loggerFactory	Pointer to logger class

Here is the call graph for this function:

◆ SetupUdpField()

void DiarkisFieldBase::SetupUdpField	(	const std::shared_ptr< IDiarkisUdp > &	udp,
		const std::shared_ptr< LoggerFactory > &	loggerFactory
	)

virtual

Setup Field with UDP protocol.

Register loggers and callback functions.

Parameters

[in]	udp	Pointer to IDiarkisUdp class
[in]	loggerFactory	Pointer to logger class

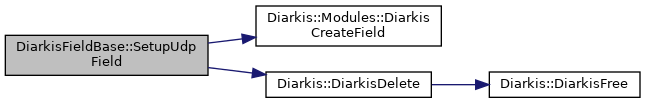

Here is the call graph for this function:

◆ SendFieldJoin() [1/2]

void DiarkisFieldBase::SendFieldJoin	(	int64_t	x,
		int64_t	y,
		int64_t	z,
		const uint8_t *	payload,
		size_t	payloadSize,
		uint32_t	syncLimit,
		uint32_t	customFilterID,
		bool	reliable
	)

virtual

Join field.

Callback events registered with GetJoinEvent() (e.g. OnJoin) will be triggered.

Parameters

[in]	x	Value of X coordinate in x field (width)
[in]	y	Value of Y coordinate in y field (depth)
[in]	z	Value of Z coordinate in z field (difference in spatial level, not height)
[in]	payload	Array of data to send to other clients
[in]	payloadSize	Length of the payload
[in]	syncLimit	number of synchronizations
[in]	customFilterID	Indicates the use of a filter function defined by the server during synchronization. 0 indicates that the filter function is not used.
[in]	reliable	Determines whether to send via reliable communication (RUDP); ignored for TCP protocol.

Here is the caller graph for this function:

◆ SendFieldJoin() [2/2]

void DiarkisFieldBase::SendFieldJoin	(	int64_t	x,
		int64_t	y,
		int64_t	z,
		const std::vector< uint8_t > &	payload,
		uint32_t	syncLimit,
		uint32_t	customFilterID,
		bool	reliable
	)

virtual

Same as SendFieldJoin()

Here is the call graph for this function:

◆ SendFieldSync() [1/2]

void DiarkisFieldBase::SendFieldSync	(	int64_t	x,
		int64_t	y,
		int64_t	z,
		const uint8_t *	payload,
		size_t	payloadSize,
		uint32_t	syncLimit,
		uint32_t	customFilterID,
		bool	reliable
	)

virtual

Sends data to other clients in the field.

Callback events registered with GetSyncEvent() (e.g. OnSync) will be triggered.

Parameters

[in]	x	Value of X coordinate in field (width)
[in]	y	Value of Y coordinate in field (depth)
[in]	z	Value of Z coordinate in field (spatial difference, not height)
[in]	payload	Array of data to send to other clients
[in]	payloadSize	Length of the payload
[in]	syncLimit	Number of synchronizations
[in]	customFilterID	Indicates the use of a filter function defined by the server during synchronization. 0 indicates that the filter function is not used.
[in]	reliable	Determines whether to send with reliable communication (RUDP) or not (UDP); ignored for the TCP protocol.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendFieldSync() [2/2]

void DiarkisFieldBase::SendFieldSync	(	int64_t	x,
		int64_t	y,
		int64_t	z,
		const std::vector< uint8_t > &	payload,
		uint32_t	syncLimit,
		uint32_t	customFilterID,
		bool	reliable
	)

virtual

Same as SendFieldSync()

Here is the call graph for this function:

◆ SendFieldDisappear()

void DiarkisFieldBase::SendFieldDisappear ( )

virtual

Notifies that this client is no longer visible to other clients.

Triggers a callback event (e.g. OnDisappear) registered with GetDisappearEvent().

◆ SendFieldLeave()

void DiarkisFieldBase::SendFieldLeave ( )

virtual

Notify that you are leaving the field.

◆ OnJoin()

void DiarkisFieldBase::OnJoin ( const DiarkisSuccessEventArgs & e )

protectedvirtual

Callback event called when joined a field.

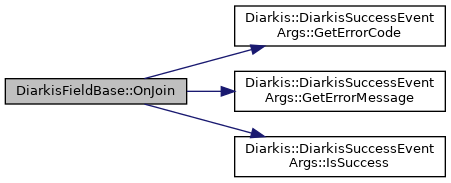

Here is the call graph for this function:

◆ OnSync()

void DiarkisFieldBase::OnSync ( const Diarkis::StdVector< uint8_t > & payload )

protectedvirtual

Callback event called when synchronizing the position of nearby clients in the field.

Parameters

[in] payload Payload data

Here is the call graph for this function:

◆ OnDisappear()

void DiarkisFieldBase::OnDisappear ( const Diarkis::StdString & remoteUid )

protectedvirtual

Callback event called when Disappear is received.

Parameters

[in] remoteUid User ID of the member who disappeared

◆ OnLeave()

void DiarkisFieldBase::OnLeave ( const DiarkisSuccessEventArgs & e )

protectedvirtual

Response callback event called when exiting the Field.

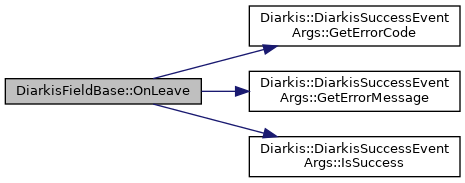

Here is the call graph for this function:

Member Data Documentation

◆ tcp_

std::shared_ptr<IDiarkisTcp> DiarkisFieldBase::tcp_

protected

Pointer to the IDiarkisTcp class.

◆ udp_

std::shared_ptr<IDiarkisUdp> DiarkisFieldBase::udp_

protected

Pointer to the IDiarkisUdp class.

◆ field_

std::shared_ptr<IDiarkisField> DiarkisFieldBase::field_

protected

Pointer to the IDiarkisField class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisFieldBase::logger_

protected

Pointer to the IDiarkisLogger class.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisFieldBase::eventUnsubscriptions_

protected

Lambda functions list.

◆ fieldConnect_

ConnectState DiarkisFieldBase::fieldConnect_

protected

Field status.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisFieldBase.h
client/cpp/diarkis-module/Client/Private/DiarkisFieldBase.cpp
