Base class that wraps the IDiarkisUdp class for easy use of UDP functionality. More...

#include <DiarkisUdpBase.h>

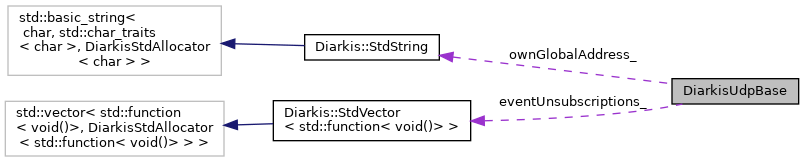

Collaboration diagram for DiarkisUdpBase:

[legend]

Public Member Functions
	DiarkisUdpBase ()
	DiarkisUdpBase constructor. More...

virtual	~DiarkisUdpBase ()
	DiarkisUdpBase destructor. More...

virtual void	Setup (const std::shared_ptr< LoggerFactory > &loggerFactory)
	Setup function. More...

bool	Connect (const char endpoint, const char clientKey, const struct AuthInfo *auth)
	Connect with UDP server. More...

bool	Connect (const std::string &endpoint, const std::string &clientKey, const struct AuthInfo *auth)
	Same as Connect(const char, const char, const struct AuthInfo*) More...

bool	Connect (const char *endpoint, const std::string &clientKey, const std::vector< uint8_t > &sid, const std::vector< uint8_t > &key, const std::vector< uint8_t > &iv, const std::vector< uint8_t > &mackey)
	Connect with UDP server. More...

bool	ConnectAsync (const char endpoint, const char clientKey, const struct AuthInfo *auth)
	Connect to the server using the async thread. More...

bool	ConnectAsync (const std::string &endpoint, const std::string &clientKey, const struct AuthInfo *auth)
	Same as ConnectAsync() More...

bool	ConnectDualModeAsync (const char endpoint, const char clientKey, const struct AuthInfo *auth)
	Attemps to connect to the server by async using socket dual mode (explicit support for IPv6) turned on. GetConnectedEvent will be invoked if connection is successfully made. When connected to the server with this method, P2P is disabled. More...

bool	ConnectDualModeAsync (const std::string &endpoint, const std::string &clientKey, const struct AuthInfo *auth)
	Same as ConnectDualModeAsync() More...

bool	IsConnected ()
	Whether or not you are connected to the UDP server. More...

bool	IsAsyncConnectRunning () const
	Check whether the async connection process is running. More...

bool	GetAsyncConnectResult (System::Result &result) const
	Get the result of the async connect process. More...

void	Disconnect ()
	Disconnect the UDP server. More...

void	Update ()
	Update function that calls UDP processing in the client library. Must be called periodically. More...

void	SetSchedulerAddNotifyEvent (std::function< void()> notifyEventFunc)
	Set a function to run when an event related to UDP has been added to the scheduler. More...

bool	IsOffline ()
	Whether the UDP server is preparing for shutdown. More...

std::shared_ptr< IDiarkisUdp >	Get ()
	Get a pointer to IDiarkisUdp. More...

void	GetGlobalAddress (Diarkis::StdString &address)
	Get own external IP address. More...

bool	GetLocalAddress (Diarkis::StdVector< Diarkis::StdString > &addressLists)
	Get own local IP address. More...

bool	SendPing (void)
	Ping UDP server. More...

bool	SendEcho (void)
	Send echo to UDP server. More...

bool	SendMigrate (void)
	Attempts to change the current connection to a differernt server. More...

void	ClearUdpBuffer (void)
	Clear send and receive buffer of Socket. More...

bool	SetSendThreadParam (const DiarkisThreadScheduler &scheduler)
	Specifies the priority of the UDP sending thread. More...

bool	SetRecvThreadParam (const DiarkisThreadScheduler &scheduler)
	Specifies the priority of the UDP receive thread. More...

Result	SendCheckNATType ()
	Sends a command to the server to check the client's NAT type. The callback event registered with IDiarkisUdp::GetCheckNATTypeEvent (e.g. OnCheckNATType) is triggered. More...

Protected Member Functions
virtual void	OnConnect (const DiarkisConnectionEventArgs &args)
	Callback function called when connecting to the server. More...

virtual void	OnDisconnect (bool isReconnect)
	Callback function called when disconnect from the server. More...

virtual void	OnOffline (void)
	Callback function called when the server prepares to shutdown. More...

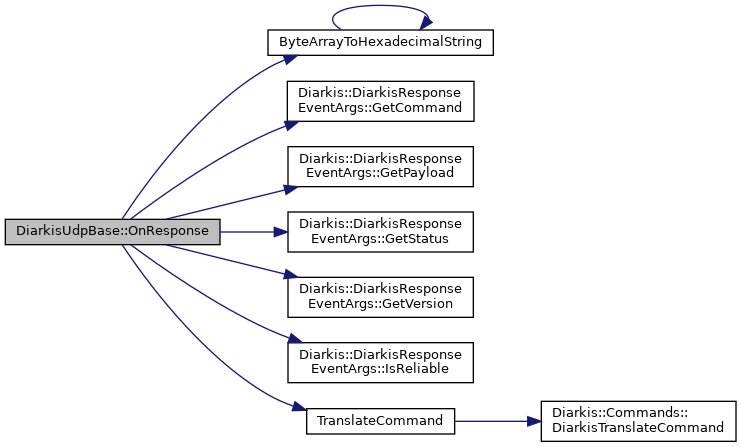

virtual void	OnResponse (const DiarkisResponseEventArgs &args, DiarkisTransportType tt)
	Callback function called when a response is received from the server. More...

virtual void	OnPush (const DiarkisPushEventArgs &args, DiarkisTransportType tt)
	Callback function called when a push is received from the server. More...

virtual void	OnEcho (const DiarkisUdpEchoEventArgs &args)
	Callback function called when a echo is received from the server. More...

virtual void	OnPing (const DiarkisUdpPingEventArgs &args)
	Callback function called when a ping is received from the server. More...

virtual void	OnNotification (const DiarkisPushEventArgs &args)
	Callback function called when a notification is received from the server. More...

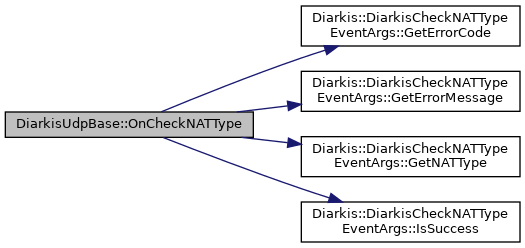

virtual void	OnCheckNATType (const DiarkisCheckNATTypeEventArgs &args)
	Callback event triggered by a SendCheckNATType response. More...

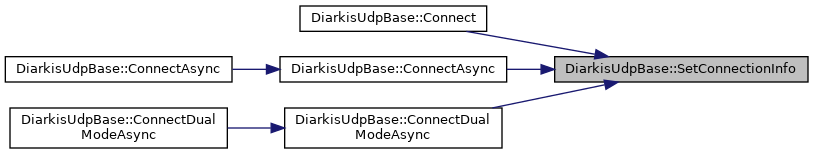

bool	SetConnectionInfo (const char clientKey, const uint8_t sid, size_t sidSize, const uint8_t key, size_t keySize, const uint8_t iv, size_t ivSize, const uint8_t *mackey, size_t mackeySize)
	Set the information for connecting to UDP server. More...

bool	SetConnectionInfo (const Diarkis::StdString &clientKey, const AuthInfo &auth)
	Set the information for connecting to UDP server. More...

Protected Attributes
std::shared_ptr< IDiarkisUdp >	udp_
	Pointer to IDiarkisUdp class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to IDiarkisLogger class. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	List of lambda functions. More...

std::function< void()>	schedulerAddNotifyEventFunc_
	Sets the process to be called when UDP related events are added to a scheduler. More...

bool	bOffline_
	Whether the server is getting ready to shut down. More...

Diarkis::StdString	ownGlobalAddress_
	My global IP address. More...

Detailed Description

Base class that wraps the IDiarkisUdp class for easy use of UDP functionality.

Constructor & Destructor Documentation

◆ DiarkisUdpBase()

DiarkisUdpBase::DiarkisUdpBase ( )

DiarkisUdpBase constructor.

◆ ~DiarkisUdpBase()

DiarkisUdpBase::~DiarkisUdpBase ( )

virtual

DiarkisUdpBase destructor.

Member Function Documentation

◆ Setup()

void DiarkisUdpBase::Setup ( const std::shared_ptr< LoggerFactory > & loggerFactory )

virtual

Setup function.

Register loggers and callback functions.

Parameters

[in] loggerFactory Pointer to logger class

Here is the call graph for this function:

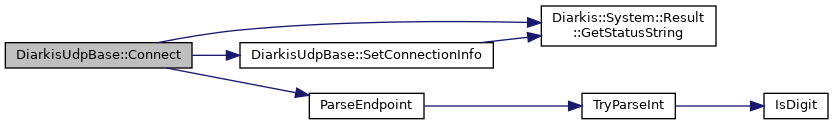

◆ Connect() [1/3]

bool DiarkisUdpBase::Connect	(	const char *	endpoint,
		const char *	clientKey,
		const struct AuthInfo *	auth
	)

Connect with UDP server.

Parameters

[in]	endpoint	UDP server address
[in]	clientKey	Client key
[in]	auth	Authentication information

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Connect() [2/3]

bool DiarkisUdpBase::Connect	(	const std::string &	endpoint,
		const std::string &	clientKey,
		const struct AuthInfo *	auth
	)

Same as Connect(const char*, const char*, const struct AuthInfo*)

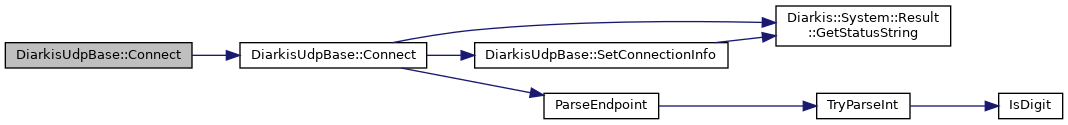

Here is the call graph for this function:

◆ Connect() [3/3]

bool DiarkisUdpBase::Connect	(	const char *	endpoint,
		const std::string &	clientKey,
		const std::vector< uint8_t > &	sid,
		const std::vector< uint8_t > &	key,
		const std::vector< uint8_t > &	iv,
		const std::vector< uint8_t > &	mackey
	)

Connect with UDP server.

Parameters

[in]	endpoint	UDP server address
[in]	clientKey	Client key
[in]	sid	Session ID
[in]	key	Encryption key
[in]	iv	Encryption initialization vector (IV)
[in]	mackey	MAC key

Here is the call graph for this function:

◆ ConnectAsync() [1/2]

bool DiarkisUdpBase::ConnectAsync	(	const char *	endpoint,
		const char *	clientKey,
		const struct AuthInfo *	auth
	)

Connect to the server using the async thread.

This method will be finished in a short time after launching the async connection process.
You can use IsAsyncConectRunning() and GetAsyncConnectResult() to get the status of the async connection process or the result.

Parameters

[in]	endpoint	UDP server address
[in]	clientKey	Client key
[in]	auth	Authentication information

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectAsync() [2/2]

bool DiarkisUdpBase::ConnectAsync	(	const std::string &	endpoint,
		const std::string &	clientKey,
		const struct AuthInfo *	auth
	)

Same as ConnectAsync()

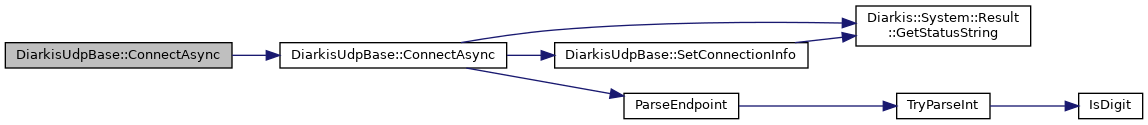

Here is the call graph for this function:

◆ ConnectDualModeAsync() [1/2]

bool DiarkisUdpBase::ConnectDualModeAsync	(	const char *	endpoint,
		const char *	clientKey,
		const struct AuthInfo *	auth
	)

Attemps to connect to the server by async using socket dual mode (explicit support for IPv6) turned on. GetConnectedEvent will be invoked if connection is successfully made. When connected to the server with this method, P2P is disabled.

Parameters

[in]	endpoint	UDP server address
[in]	clientKey	Client key
[in]	auth	Authentication information

Here is the call graph for this function:

Here is the caller graph for this function:

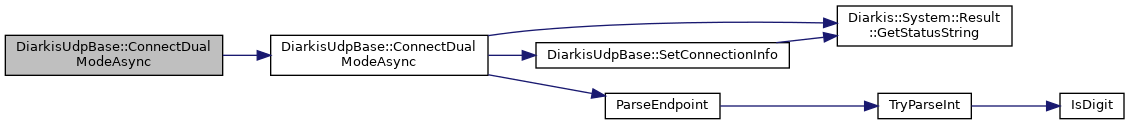

◆ ConnectDualModeAsync() [2/2]

bool DiarkisUdpBase::ConnectDualModeAsync	(	const std::string &	endpoint,
		const std::string &	clientKey,
		const struct AuthInfo *	auth
	)

Same as ConnectDualModeAsync()

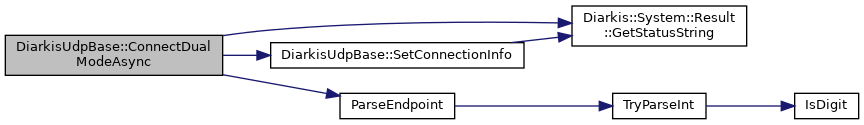

Here is the call graph for this function:

◆ IsConnected()

bool DiarkisUdpBase::IsConnected ( )

Whether or not you are connected to the UDP server.

◆ IsAsyncConnectRunning()

bool DiarkisUdpBase::IsAsyncConnectRunning ( ) const

Check whether the async connection process is running.

Returns: true when the async connection process is running

◆ GetAsyncConnectResult()

bool DiarkisUdpBase::GetAsyncConnectResult ( System::Result & result ) const

Get the result of the async connect process.

Parameters

[out] result System::Result of the async connect process

Returns: Whether the method process successfully

◆ Disconnect()

void DiarkisUdpBase::Disconnect ( )

Disconnect the UDP server.

Here is the call graph for this function:

◆ Update()

void DiarkisUdpBase::Update ( )

Update function that calls UDP processing in the client library. Must be called periodically.

◆ SetSchedulerAddNotifyEvent()

void DiarkisUdpBase::SetSchedulerAddNotifyEvent ( std::function< void()> notifyEventFunc )

Set a function to run when an event related to UDP has been added to the scheduler.

◆ IsOffline()

bool DiarkisUdpBase::IsOffline ( )

Whether the UDP server is preparing for shutdown.

◆ Get()

std::shared_ptr< IDiarkisUdp > DiarkisUdpBase::Get ( )

Get a pointer to IDiarkisUdp.

◆ GetGlobalAddress()

void DiarkisUdpBase::GetGlobalAddress ( Diarkis::StdString & address )

Get own external IP address.

◆ GetLocalAddress()

bool DiarkisUdpBase::GetLocalAddress ( Diarkis::StdVector< Diarkis::StdString > & addressLists )

Get own local IP address.

◆ SendPing()

bool DiarkisUdpBase::SendPing ( void )

Ping UDP server.

When a response is received from the server a callback event (e.g. OnPing) registered with GetPingEvent() is triggered.

◆ SendEcho()

bool DiarkisUdpBase::SendEcho ( void )

Send echo to UDP server.

When a response is received from the server a callback event (e.g. OnEcho) registered with GetEchoEvent() is triggered.

◆ SendMigrate()

bool DiarkisUdpBase::SendMigrate ( void )

Attempts to change the current connection to a differernt server.

SID, encryption key, IV, and MAC key are maintained after migration.

◆ ClearUdpBuffer()

void DiarkisUdpBase::ClearUdpBuffer ( void )

Clear send and receive buffer of Socket.

◆ SetSendThreadParam()

bool DiarkisUdpBase::SetSendThreadParam ( const DiarkisThreadScheduler & scheduler )

Specifies the priority of the UDP sending thread.

Specifies the priority of the UDP sending thread. If set, must be called before the Connect() function.
If not called, OS standard thread policy and priority are applied.
policy is a valid setting only for Unix systems, and does not affect Windows even if it is specified.

Parameters

[in] scheduler Thread scheduling settings. Set policy, priority, and affinity mask.

◆ SetRecvThreadParam()

bool DiarkisUdpBase::SetRecvThreadParam ( const DiarkisThreadScheduler & scheduler )

Specifies the priority of the UDP receive thread.

Specifies the priority of the UDP receive thread. If set, must be called before the Connect() function.
If not called, OS standard thread policy and priority are applied.
policy is a valid setting only for Unix systems, and does not affect Windows even if it is specified.

Parameters

[in] scheduler Thread scheduling settings. Set policy, priority, and affinity mask.

◆ SendCheckNATType()

Result DiarkisUdpBase::SendCheckNATType ( )

Sends a command to the server to check the client's NAT type. The callback event registered with IDiarkisUdp::GetCheckNATTypeEvent (e.g. OnCheckNATType) is triggered.

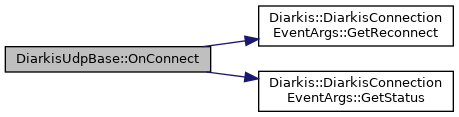

◆ OnConnect()

void DiarkisUdpBase::OnConnect ( const DiarkisConnectionEventArgs & args )

protectedvirtual

Callback function called when connecting to the server.

Here is the call graph for this function:

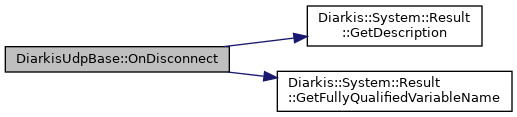

◆ OnDisconnect()

void DiarkisUdpBase::OnDisconnect ( bool isReconnect )

protectedvirtual

Callback function called when disconnect from the server.

Here is the call graph for this function:

◆ OnOffline()

void DiarkisUdpBase::OnOffline ( void )

protectedvirtual

Callback function called when the server prepares to shutdown.

◆ OnResponse()

void DiarkisUdpBase::OnResponse	(	const DiarkisResponseEventArgs &	args,
		DiarkisTransportType	tt
	)

protectedvirtual

Callback function called when a response is received from the server.

Here is the call graph for this function:

◆ OnPush()

void DiarkisUdpBase::OnPush	(	const DiarkisPushEventArgs &	args,
		DiarkisTransportType	tt
	)

protectedvirtual

Callback function called when a push is received from the server.

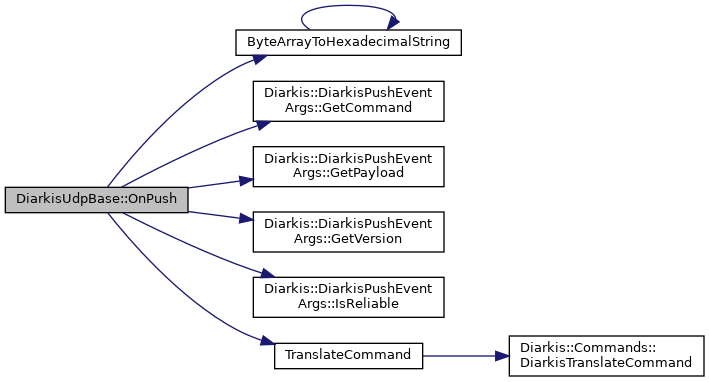

Here is the call graph for this function:

◆ OnEcho()

void DiarkisUdpBase::OnEcho ( const DiarkisUdpEchoEventArgs & args )

protectedvirtual

Callback function called when a echo is received from the server.

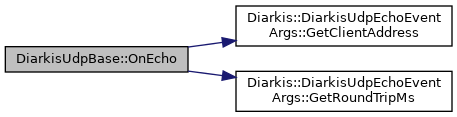

Here is the call graph for this function:

◆ OnPing()

void DiarkisUdpBase::OnPing ( const DiarkisUdpPingEventArgs & args )

protectedvirtual

Callback function called when a ping is received from the server.

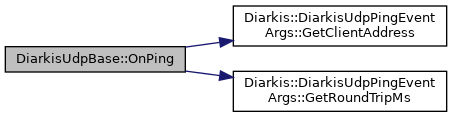

Here is the call graph for this function:

◆ OnNotification()

void DiarkisUdpBase::OnNotification ( const DiarkisPushEventArgs & args )

protectedvirtual

Callback function called when a notification is received from the server.

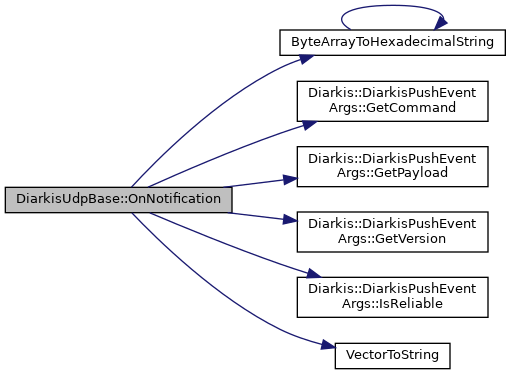

Here is the call graph for this function:

◆ OnCheckNATType()

void DiarkisUdpBase::OnCheckNATType ( const DiarkisCheckNATTypeEventArgs & args )

protectedvirtual

Callback event triggered by a SendCheckNATType response.

Here is the call graph for this function:

◆ SetConnectionInfo() [1/2]

bool DiarkisUdpBase::SetConnectionInfo	(	const char *	clientKey,
		const uint8_t *	sid,
		size_t	sidSize,
		const uint8_t *	key,
		size_t	keySize,
		const uint8_t *	iv,
		size_t	ivSize,
		const uint8_t *	mackey,
		size_t	mackeySize
	)

protected

Set the information for connecting to UDP server.

Parameters

[in]	clientKey	Client key
[in]	sid	Session ID
[in]	sidSize	Length of the sid
[in]	key	Encryption key
[in]	keySize	Length of the key
[in]	iv	Encryption initialization vector (IV)
[in]	ivSize	Length of the iv
[in]	mackey	MAC key
[in]	mackeySize	Length of the mackey

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetConnectionInfo() [2/2]

bool DiarkisUdpBase::SetConnectionInfo	(	const Diarkis::StdString &	clientKey,
		const AuthInfo &	auth
	)

protected

Set the information for connecting to UDP server.

Parameters

[in]	clientKey	Client key
[in]	auth	Authentication information

Here is the call graph for this function:

Member Data Documentation

◆ udp_

std::shared_ptr<IDiarkisUdp> DiarkisUdpBase::udp_

protected

Pointer to IDiarkisUdp class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisUdpBase::logger_

protected

Pointer to IDiarkisLogger class.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisUdpBase::eventUnsubscriptions_

protected

List of lambda functions.

◆ schedulerAddNotifyEventFunc_

std::function<void()> DiarkisUdpBase::schedulerAddNotifyEventFunc_

protected

Sets the process to be called when UDP related events are added to a scheduler.

◆ bOffline_

bool DiarkisUdpBase::bOffline_

protected

Whether the server is getting ready to shut down.

◆ ownGlobalAddress_

Diarkis::StdString DiarkisUdpBase::ownGlobalAddress_

protected

My global IP address.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisUdpBase.h
client/cpp/diarkis-module/Client/Private/DiarkisUdpBase.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DiarkisUdpBase()

◆ ~DiarkisUdpBase()

Member Function Documentation

◆ Setup()

◆ Connect() [1/3]

◆ Connect() [2/3]

◆ Connect() [3/3]

◆ ConnectAsync() [1/2]

◆ ConnectAsync() [2/2]

◆ ConnectDualModeAsync() [1/2]

◆ ConnectDualModeAsync() [2/2]

◆ IsConnected()

◆ IsAsyncConnectRunning()

◆ GetAsyncConnectResult()

◆ Disconnect()

◆ Update()

◆ SetSchedulerAddNotifyEvent()

◆ IsOffline()

◆ Get()

◆ GetGlobalAddress()

◆ GetLocalAddress()

◆ SendPing()

◆ SendEcho()

◆ SendMigrate()

◆ ClearUdpBuffer()

◆ SetSendThreadParam()

◆ SetRecvThreadParam()

◆ SendCheckNATType()

◆ OnConnect()

◆ OnDisconnect()

◆ OnOffline()

◆ OnResponse()

◆ OnPush()

◆ OnEcho()

◆ OnPing()

◆ OnNotification()

◆ OnCheckNATType()

◆ SetConnectionInfo() [1/2]

◆ SetConnectionInfo() [2/2]

Member Data Documentation

◆ udp_

◆ logger_

◆ eventUnsubscriptions_

◆ schedulerAddNotifyEventFunc_

◆ bOffline_

◆ ownGlobalAddress_
