Base class that wraps the IDiarkisTcp class for easy use of TCP functionality. More...

#include <DiarkisTcpBase.h>

Collaboration diagram for DiarkisTcpBase:

Public Member Functions
	DiarkisTcpBase ()
	DiarkisTcpBase constructor. More...

virtual	~DiarkisTcpBase ()
	DiarkisTcpBase destructor. More...

virtual void	Setup (const std::shared_ptr< LoggerFactory > &loggerFactory)
	Setup function. More...

bool	Connect (const char endpoint, const char clientKey, const struct AuthInfo *auth)
	Connect with TCP server. More...

bool	Connect (const std::string &endpoint, const std::string &clientKey, const struct AuthInfo *auth)
	Same as Connect(const char, const char, const struct AuthInfo*) More...

bool	Connect (const std::string &endpoint, const std::string &clientKey, const std::vector< uint8_t > &sid, const std::vector< uint8_t > &key, const std::vector< uint8_t > &iv, const std::vector< uint8_t > &mackey)
	Connect with TCP server. More...

bool	IsConnected ()
	Whether or not you are connected to the TCP server. More...

void	Disconnect ()
	Disconnect from the TCP server. More...

void	Update ()
	Update function that calls TCP processing in the client library. Must be called periodically. More...

void	SetSchedulerAddNotifyEvent (std::function< void()> notifyEventFunc)
	Sets the process to be called when TCP related events are added to a scheduler. More...

bool	IsOffline ()
	Whether the TCP server is preparing for shutdown. More...

std::shared_ptr< IDiarkisTcp >	Get ()
	Get a pointer to IDiarkisTcp. More...

bool	SendHeartbeat (void)
	Sends a heartbeat to the. More...

bool	SendMigrate (void)
	Attempts to change the current connection to a differernt server. More...

Protected Member Functions
virtual void	OnConnect (const DiarkisConnectionEventArgs &args)
	Callback function called when connecting to the server. More...

virtual void	OnDisconnect (bool isReconnect)
	Callback function called when disconnect from the server. More...

virtual void	OnOffline ()
	Callback function called when the server prepares to shutdown. More...

virtual void	OnResponse (const DiarkisResponseEventArgs &args, DiarkisTransportType tt)
	Callback function called when a response is received from the server. More...

virtual void	OnPush (const DiarkisPushEventArgs &args, DiarkisTransportType tt)
	Callback function called when a push is received from the server. More...

virtual void	OnHeartbeat ()
	Callback function called when a heartbeat is received from the server. More...

virtual void	OnNotification (const DiarkisPushEventArgs &args)
	Callback function called when a notification is received from the server. More...

Protected Attributes
std::shared_ptr< IDiarkisTcp >	tcp_
	Pointer to IDiarkisTcp class. More...

std::shared_ptr< IDiarkisLogger >	logger_
	Pointer to IDiarkisLogger class. More...

Diarkis::StdVector< std::function< void()> >	eventUnsubscriptions_
	List of lambda functions. More...

std::function< void()>	schedulerAddNotifyEventFunc_
	Callback function called when TCP related events are added. More...

bool	bOffline_
	Whether the server is getting ready to shut down. More...

Detailed Description

Base class that wraps the IDiarkisTcp class for easy use of TCP functionality.

Constructor & Destructor Documentation

◆ DiarkisTcpBase()

DiarkisTcpBase::DiarkisTcpBase ( )

DiarkisTcpBase constructor.

◆ ~DiarkisTcpBase()

DiarkisTcpBase::~DiarkisTcpBase ( )

virtual

DiarkisTcpBase destructor.

Member Function Documentation

◆ Setup()

void DiarkisTcpBase::Setup ( const std::shared_ptr< LoggerFactory > & loggerFactory )

virtual

Setup function.

Register loggers and callback functions.

Parameters

[in] loggerFactory Pointer to logger class

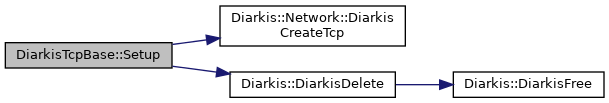

Here is the call graph for this function:

◆ Connect() [1/3]

bool DiarkisTcpBase::Connect	(	const char *	endpoint,
		const char *	clientKey,
		const struct AuthInfo *	auth
	)

Connect with TCP server.

Parameters

[in]	endpoint	TCP server address
[in]	clientKey	Client key
[in]	auth	Authentication information

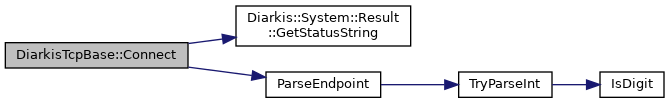

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Connect() [2/3]

bool DiarkisTcpBase::Connect	(	const std::string &	endpoint,
		const std::string &	clientKey,
		const struct AuthInfo *	auth
	)

Same as Connect(const char*, const char*, const struct AuthInfo*)

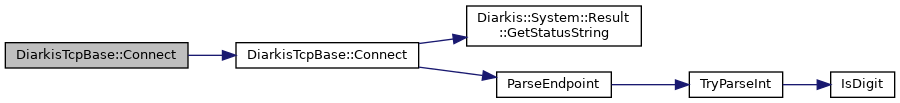

Here is the call graph for this function:

◆ Connect() [3/3]

bool DiarkisTcpBase::Connect	(	const std::string &	endpoint,
		const std::string &	clientKey,
		const std::vector< uint8_t > &	sid,
		const std::vector< uint8_t > &	key,
		const std::vector< uint8_t > &	iv,
		const std::vector< uint8_t > &	mackey
	)

Connect with TCP server.

Parameters

[in]	endpoint	TCP server address
[in]	clientKey	Client key
[in]	sid	Session ID
[in]	key	Encryption key
[in]	iv	Encryption initialization vector (IV)
[in]	mackey	MAC key

Here is the call graph for this function:

◆ IsConnected()

bool DiarkisTcpBase::IsConnected ( )

Whether or not you are connected to the TCP server.

◆ Disconnect()

void DiarkisTcpBase::Disconnect ( )

Disconnect from the TCP server.

Here is the call graph for this function:

◆ Update()

void DiarkisTcpBase::Update ( )

Update function that calls TCP processing in the client library. Must be called periodically.

◆ SetSchedulerAddNotifyEvent()

void DiarkisTcpBase::SetSchedulerAddNotifyEvent ( std::function< void()> notifyEventFunc )

Sets the process to be called when TCP related events are added to a scheduler.

◆ IsOffline()

bool DiarkisTcpBase::IsOffline ( )

Whether the TCP server is preparing for shutdown.

◆ Get()

std::shared_ptr< IDiarkisTcp > DiarkisTcpBase::Get ( )

Get a pointer to IDiarkisTcp.

◆ SendHeartbeat()

bool DiarkisTcpBase::SendHeartbeat ( void )

Sends a heartbeat to the.

TCP server.

Callback events registered with GetHeartbeatEvent() (e.g. OnHeartbeat) will be triggered.
There is no need to call SendHeartbeat from outside the library, as it is sent periodically by the library's Update function.

◆ SendMigrate()

bool DiarkisTcpBase::SendMigrate ( void )

Attempts to change the current connection to a differernt server.

SID, encryption key, IV, and MAC key are maintained after migration.

◆ OnConnect()

void DiarkisTcpBase::OnConnect ( const DiarkisConnectionEventArgs & args )

protectedvirtual

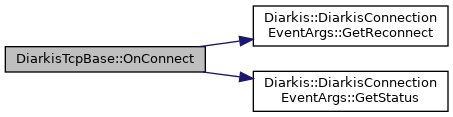

Callback function called when connecting to the server.

Here is the call graph for this function:

◆ OnDisconnect()

void DiarkisTcpBase::OnDisconnect ( bool isReconnect )

protectedvirtual

Callback function called when disconnect from the server.

◆ OnOffline()

void DiarkisTcpBase::OnOffline ( )

protectedvirtual

Callback function called when the server prepares to shutdown.

◆ OnResponse()

void DiarkisTcpBase::OnResponse	(	const DiarkisResponseEventArgs &	args,
		DiarkisTransportType	tt
	)

protectedvirtual

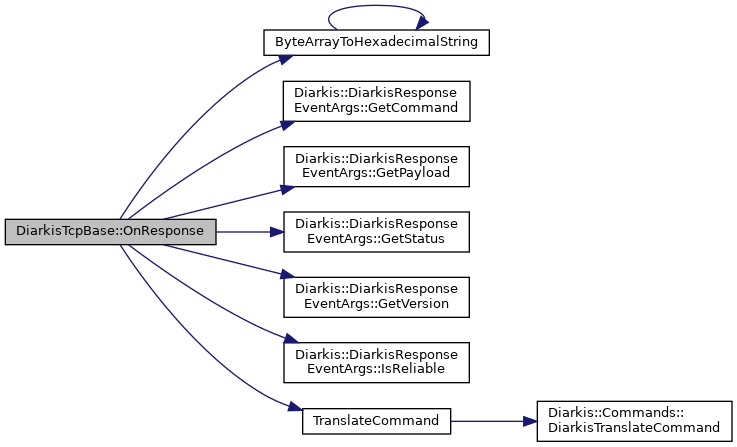

Callback function called when a response is received from the server.

Here is the call graph for this function:

◆ OnPush()

void DiarkisTcpBase::OnPush	(	const DiarkisPushEventArgs &	args,
		DiarkisTransportType	tt
	)

protectedvirtual

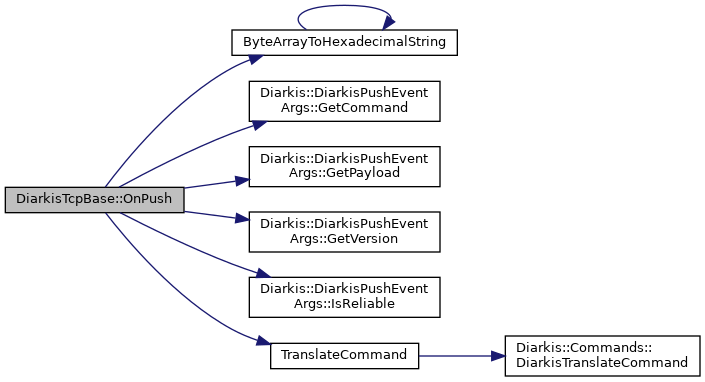

Callback function called when a push is received from the server.

Here is the call graph for this function:

◆ OnHeartbeat()

void DiarkisTcpBase::OnHeartbeat ( )

protectedvirtual

Callback function called when a heartbeat is received from the server.

◆ OnNotification()

void DiarkisTcpBase::OnNotification ( const DiarkisPushEventArgs & args )

protectedvirtual

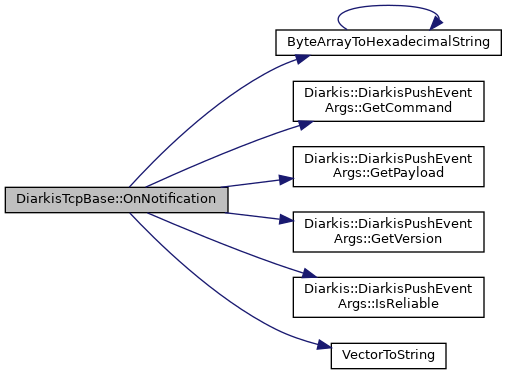

Callback function called when a notification is received from the server.

Here is the call graph for this function:

Member Data Documentation

◆ tcp_

std::shared_ptr<IDiarkisTcp> DiarkisTcpBase::tcp_

protected

Pointer to IDiarkisTcp class.

◆ logger_

std::shared_ptr<IDiarkisLogger> DiarkisTcpBase::logger_

protected

Pointer to IDiarkisLogger class.

◆ eventUnsubscriptions_

Diarkis::StdVector<std::function<void()> > DiarkisTcpBase::eventUnsubscriptions_

protected

List of lambda functions.

◆ schedulerAddNotifyEventFunc_

std::function<void()> DiarkisTcpBase::schedulerAddNotifyEventFunc_

protected

Callback function called when TCP related events are added.

◆ bOffline_

bool DiarkisTcpBase::bOffline_

protected

Whether the server is getting ready to shut down.

The documentation for this class was generated from the following files:

client/cpp/diarkis-module/Client/Public/DiarkisTcpBase.h
client/cpp/diarkis-module/Client/Private/DiarkisTcpBase.cpp
